003953 Series

Manufacturer: Molex

Catalog

CONN FFC FPC TOP 24POS 1.25MM RA

Part	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Voltage Rating	Mounting Type	Contact Finish	Connector/Contact Type	Actuator Material	FFC, FCB Thickness	Cable End Type	Contact Material	Height Above Board [z]	Height Above Board [z]	Housing Material	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Locking Feature	Termination	Number of Positions	Height Above Board	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Fastening Type	Features	Number of Positions Loaded	Contact Type	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Shape	Shrouding	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Connector Type	Contact Finish - Mating	Number of Rows [custom]	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post

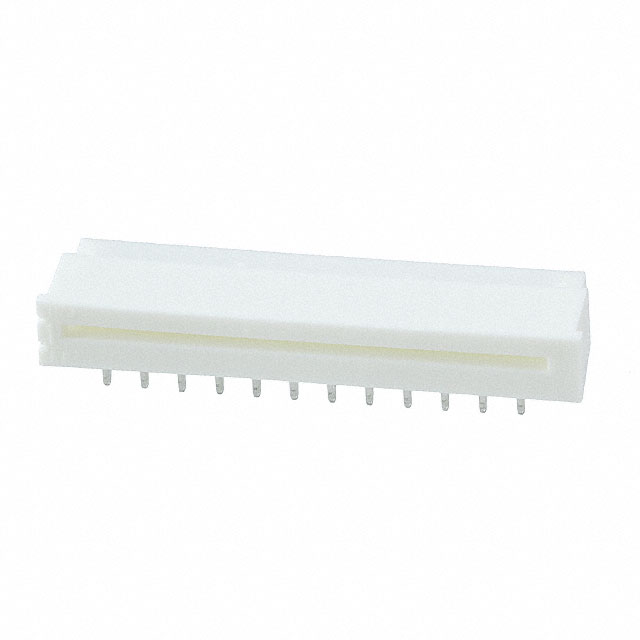

Molex 0039532244	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Right Angle Through Hole	Tin Bismuth	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze	5.4 mm	0.213 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	24

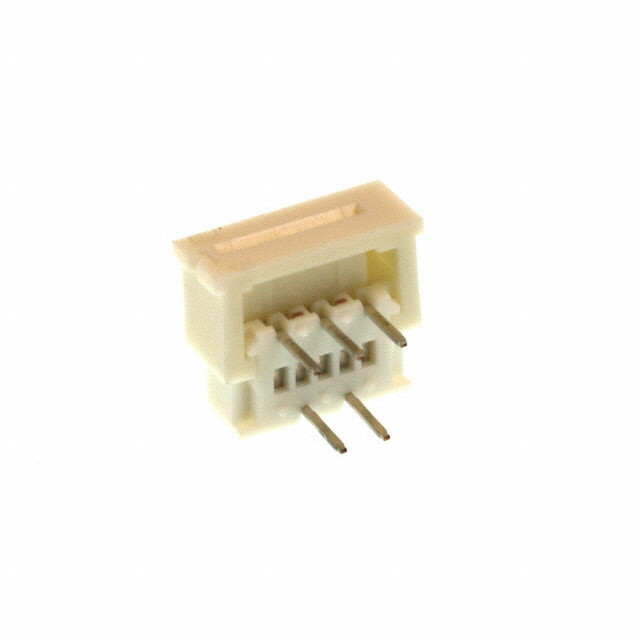

Molex 0039532054	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Right Angle Through Hole	Tin Bismuth	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze	5.4 mm	0.213 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	5

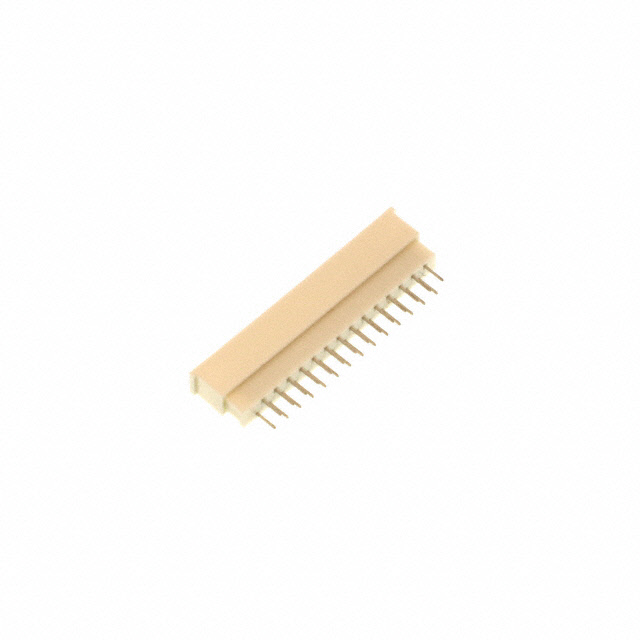

Molex 0039532285	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Through Hole	Tin Bismuth	Contacts Vertical - 1 Sided	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze		0.295 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	28	7.5 mm
Molex 0039532325	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Through Hole	Tin Bismuth	Contacts Vertical - 1 Sided	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze		0.295 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder		7.5 mm
Molex 0039532205	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Through Hole	Tin Bismuth	Contacts Vertical - 1 Sided	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze		0.295 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	20	7.5 mm
Molex 0039532324	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Right Angle Through Hole	Tin Bismuth	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze	5.4 mm	0.213 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder

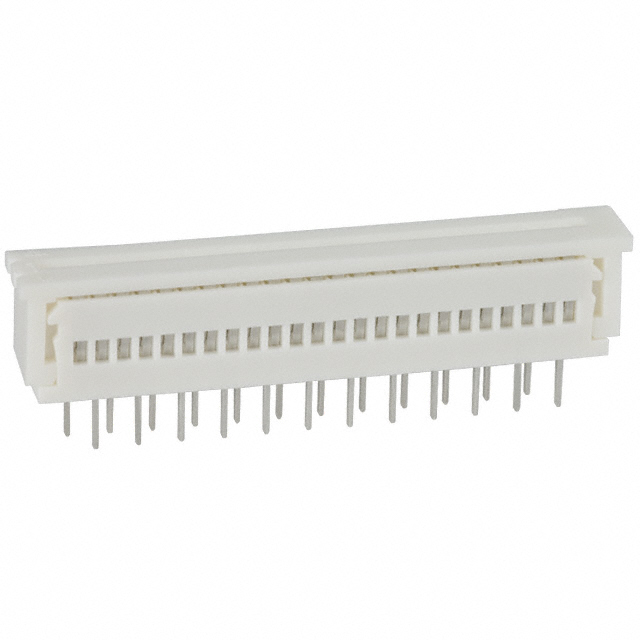

Molex 0039532245	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Through Hole	Tin Bismuth	Contacts Vertical - 1 Sided	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze		0.295 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	24	7.5 mm

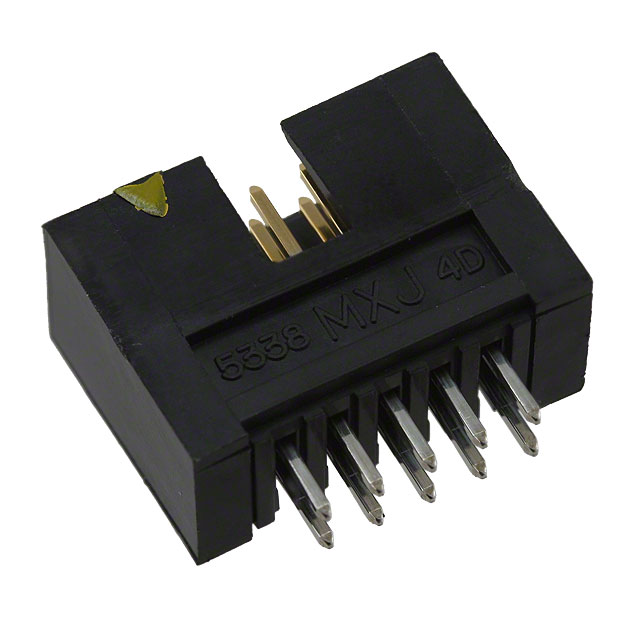

Molex 0039536104							Through Hole						Brass							UL94 V-0		Solder	10		39.4 çin	1 çm	Board to Cable/Wire	Push-Pull	Keying Slot	All	Male Pin	16.7 mm	0.657 in	0.1 "	2.54 mm	Square	Shrouded - 4 Wall	Black	3.9 µin	0.099 µm	Polybutylene Terephthalate (PBT) Glass Filled	Header	Gold	2	14 mm	0.551 "	0.1 in	2.54 mm	0.138 in	3.5 mm	0.228 in	5.8 mm	Tin

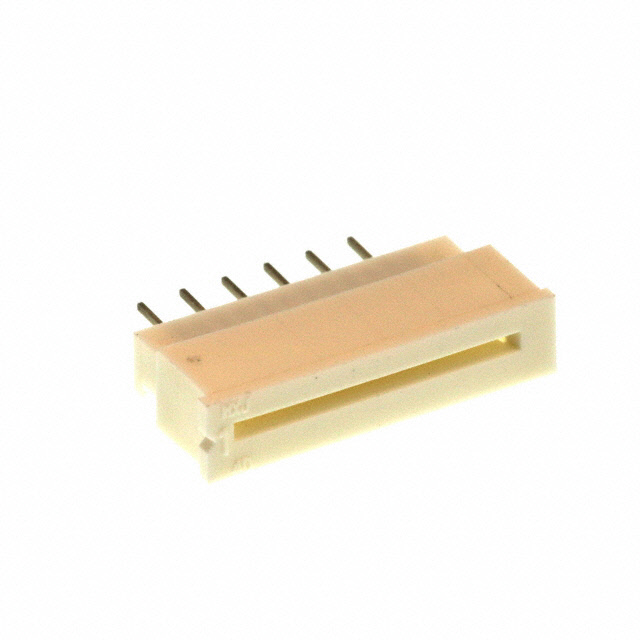

Molex 0039532125	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Through Hole	Tin Bismuth	Contacts Vertical - 1 Sided	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze		0.295 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	12	7.5 mm

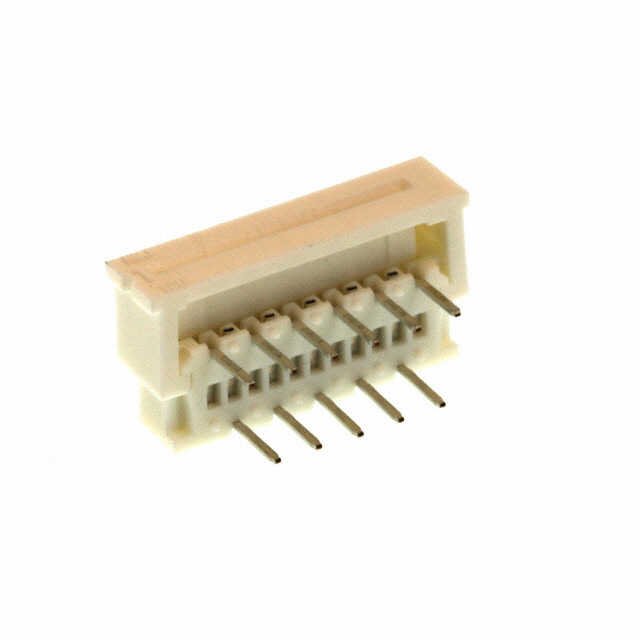

Molex 0039532114	30	1 Ám	39.4 Áin	0.049 in	1.25 mm	200 V	Right Angle Through Hole	Tin Bismuth	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	0.3 mm	Straight	Phosphor Bronze	5.4 mm	0.213 in	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	80 °C	-20 ░C	UL94 V-0	Slide Lock	Solder	11
