KP0115A Series

Catalog

PUSHBUTTON SWITCH, KP SERIES, SPST, OFF-(ON), SQUARE, TRANSPARENT

Part	Electrical Life	Mechanical Life	Illumination Type, Color	Switch Function	Actuator Marking	Features	Current Rating (Amps)	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Color - Actuator/Cap	Circuit	Type	Termination Style	Mounting Type	Actuator Type
NKK Switches KP0115ACBKG03RGBP-2SJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking	Tactile Feedback	100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ANBKG03RGB-3TJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking		100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ANAKG03RGBP	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking		100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V		SPST-NO	Illuminated Standard	PC Pin	Through Hole	Plunger for Cap
NKK Switches KP0115ANAKG03RGBP-1TJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking		100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ANBKG03RGBP-3TJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking		100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ACBKG03RGB-3TJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking	Tactile Feedback	100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ACBKG03RGBP-2FJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking	Tactile Feedback	100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ACBKG03RGBP-2TJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking	Tactile Feedback	100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square

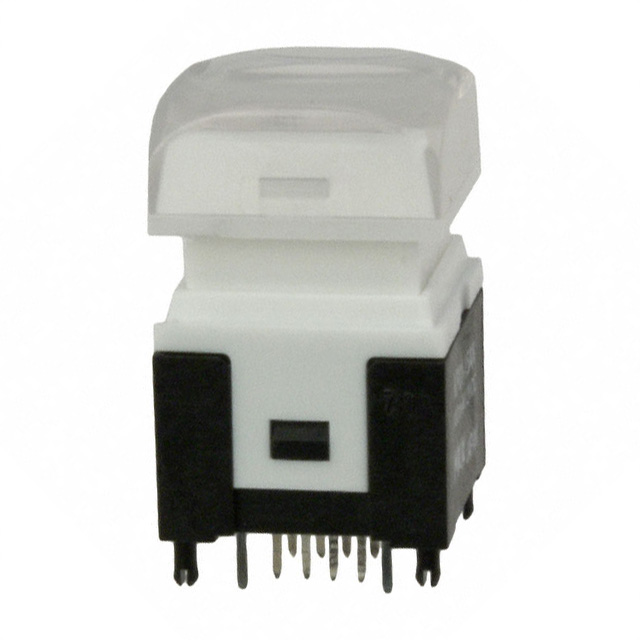

NKK Switches KP0115ANBKG03RGB-2SJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking		100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
NKK Switches KP0115ANBKG03RGBP-2FJB	5000000 Cycles	5000000 Cycles	Blue Green LED Red	Off-Mom	No Marking		100 mA	2 VDC 2.9 VDC	50 °C	-25 °C	12 V	Clear	SPST-NO	Illuminated Standard	PC Pin	Through Hole	Button Square
