MS3102R20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

MIL-5015 MS/AC THREADED RECEPT

Part	Mounting Type	Qualification	Mounting Feature	Orientation	Termination	Fastening Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Grade	Applications	Insert Material	Shell Size - Insert Length	Shell Size - Insert Width	Primary Material	Color	Current Rating Options	Contact Material	Shell Finish	Ingress Protection	Shielding	Connector Type	Shell Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Cable Opening	Voltage Rating (AC)	Voltage Rating (DC)
Amphenol Aerospace Operations MS3102R20-16P	Panel Mount	MIL-DTL-5015	Flange	N (Normal)	Solder Cup	Threaded	9	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene	20 mm	16 mm	Metal	Olive Drab	13A 23A	Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Male Pins Receptacle	Aluminum Alloy
Amphenol Aerospace Operations MS3102R20-21P

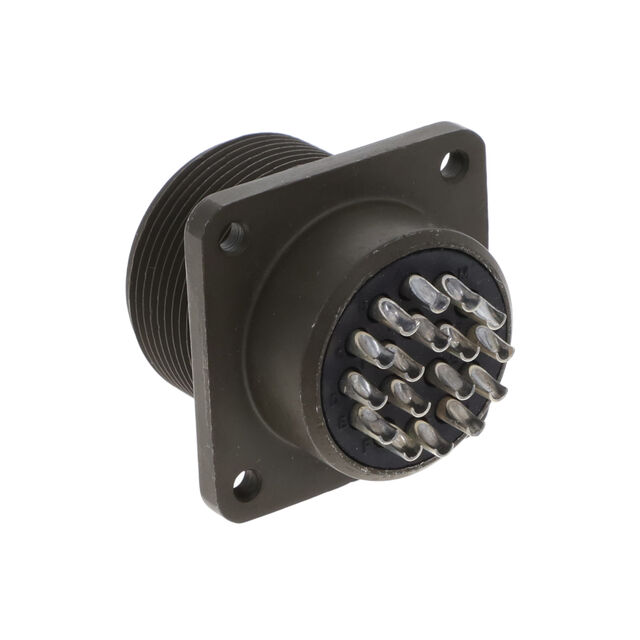

Amphenol Aerospace Operations MS3102R20-29P	Panel Mount	MIL-DTL-5015	Flange	N (Normal)	Solder Cup	Threaded	17	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene			Metal	Olive Drab		Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Male Pins Receptacle	Aluminum Alloy	20	29	1.125 in

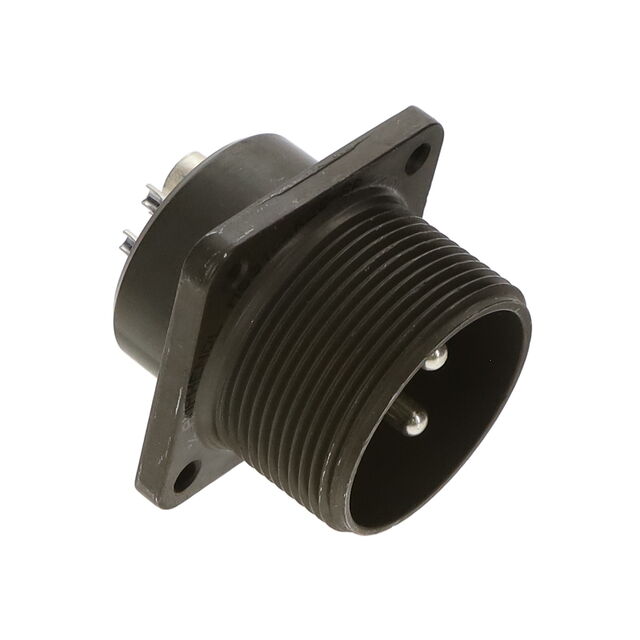

Amphenol Aerospace Operations MS3102R20-8P	Panel Mount	MIL-DTL-5015	Flange	N (Normal)	Solder Cup	Threaded	6	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene	20 mm	8 mm	Metal	Olive Drab	13A 46A	Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Male Pins Receptacle	Aluminum Alloy				200 VAC	250 VDC
Amphenol Aerospace Operations MS3102R20-22P	Panel Mount	MIL-DTL-5015	Flange	N (Normal)	Solder Cup	Threaded	6	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene			Metal	Olive Drab		Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Male Pins Receptacle	Aluminum Alloy	20	22	1.125 in
Amphenol Aerospace Operations MS3102R20-23SX	Panel Mount	MIL-DTL-5015	Flange	X	Solder Cup	Threaded	2	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene			Metal	Olive Drab		Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Female Sockets Receptacle	Aluminum Alloy	20	23	1.125 in
Amphenol Aerospace Operations MS3102R20-4P	Panel Mount	MIL-DTL-5015	Flange	N (Normal)	Solder Cup	Threaded	4	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene	20 mm	4 mm	Metal	Olive Drab		Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Male Pins Receptacle	Aluminum Alloy			1.125 in
Amphenol Aerospace Operations MS3102R20-18S	Panel Mount	MIL-DTL-5015	Flange	N (Normal)	Solder Cup	Threaded	9	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene	20 mm	18 mm	Metal	Olive Drab		Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Female Sockets Receptacle	Aluminum Alloy			1.125 in
Amphenol Aerospace Operations MS3102R20-27PX
Amphenol Aerospace Operations MS3102R20-19PW	Panel Mount	MIL-DTL-5015	Flange	W	Solder Cup	Threaded	3	125 °C	-55 °C	Silver	Military	Marine Military	Neoprene	20 mm	19 mm	Metal	Olive Drab		Copper Alloy	Cadmium Olive Drab Chromate	Environment Resistant	Unshielded	Male Pins Receptacle	Aluminum Alloy			1.125 in
