746-045 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 45POS 0.125

Part	Termination Rows	Material - Insulation	Number of Positions	Contact Material	Contact Finish	Number of Rows	Gender	Pitch	Pitch	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Card Type	Number of Positions/Bay/Row	Read Out	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type
EDAC Inc. 746-045-540-501	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole

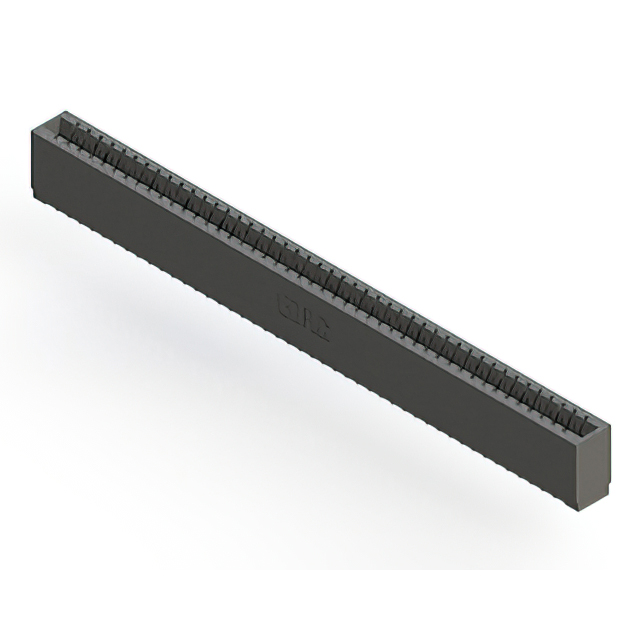

EDAC Inc. 746-045-520-101	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-541-106	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-540-106	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-525-501	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-525-101	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-541-501	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-540-506	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-527-101	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
EDAC Inc. 746-045-541-101	1	Polyester Thermoplastic	45	Copper Alloy	Gold	1	Female	3.18 mm	0.125 in	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	45	Single	Cantilever	-40 C	105 ░C	Black	Through Hole
