BUK9K17 Series

Catalog

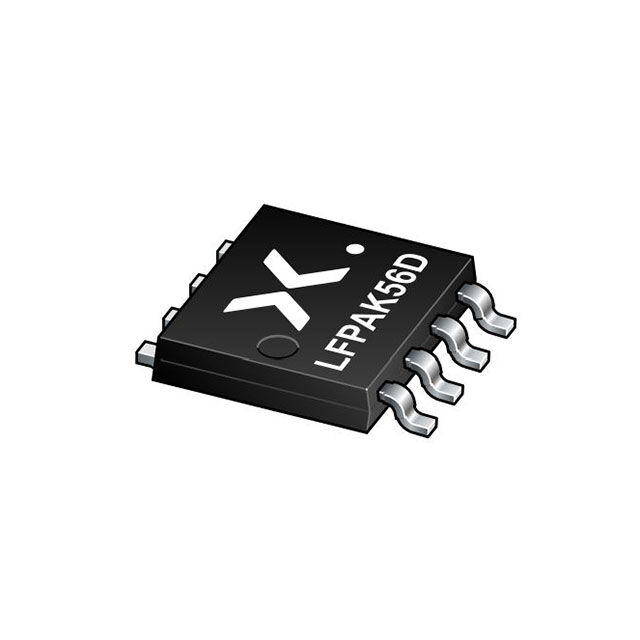

MOSFET 2N-CH 60V 26A LFPAK56D

Part	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Drain to Source Voltage (Vdss)	FET Feature	Rds On (Max) @ Id, Vgs	Qualification	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Grade	Technology	Configuration	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Power - Max [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
Freescale Semiconductor - NXP BUK9K17-60EX	2223 pF	LFPAK56D	60 V	Logic Level Gate	15.6 mOhm	AEC-Q100	26 A	2.1 V	Automotive	MOSFET (Metal Oxide)	2 N-Channel (Dual)	16.5 nC	Surface Mount	53 W	8-LFPAK56 SOT-1205	-55 °C	175 ░C
Freescale Semiconductor - NXP BUK9K17-60E/1X	2223 pF	LFPAK56D	60 V	Logic Level Gate	15.6 mOhm	AEC-Q101	26 A	2.1 V	Automotive			16.5 nC	Surface Mount	53 W	8-LFPAK56 SOT-1205	-55 °C	175 ░C
