SM02(8.0 Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

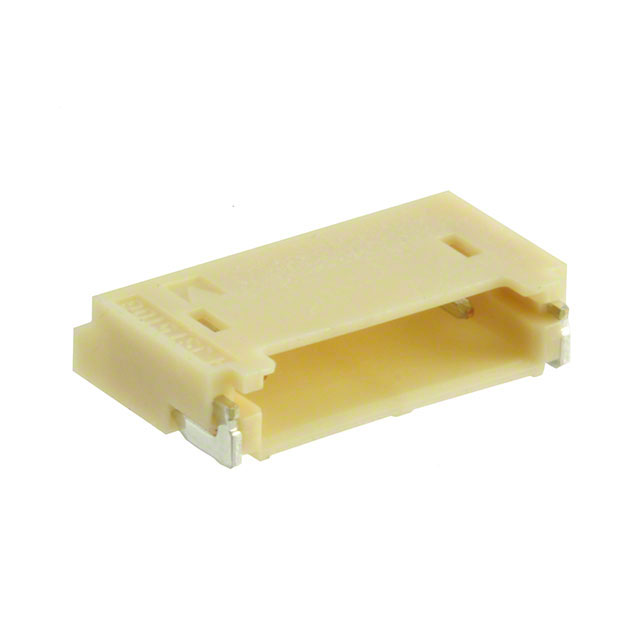

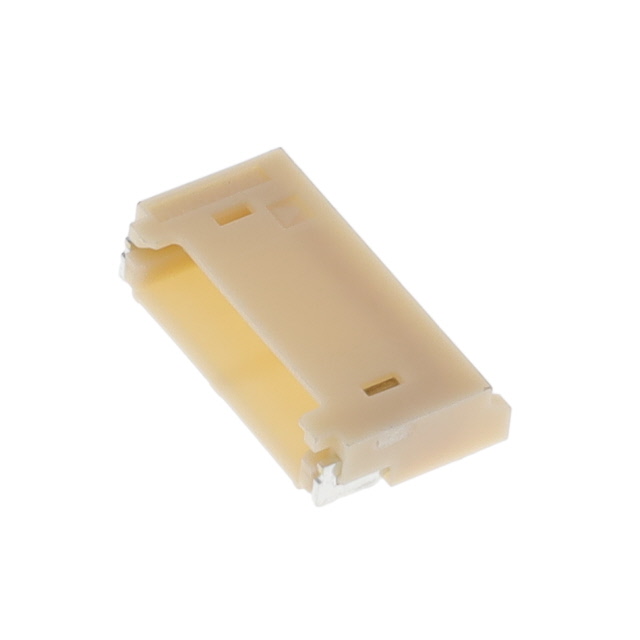

CONN HEADER SMD R/A 2POS 8MM
| Part | Contact Shape | Style | Fastening Type | Contact Type | Insulation Height [z] | Insulation Height | Contact Material | Number of Positions | Number of Rows | Voltage Rating | Features | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Termination | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Number of Positions Loaded | Connector Type | Mounting Type | Shrouding | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Board to Cable/Wire | Detent Lock | Male Pin | 0.126 " | 3.2 mm | Copper Alloy | 2 | 1 | 600 V | Solder Retention | 0.315 in | 8 mm | Tin | Solder | Nylon Polyamide (PA) | 85 °C | -25 °C | Natural | All | Header | Right Angle Surface Mount | Shrouded - 4 Wall | UL94 V-0 |
 JST Sales America Inc. | Square | Board to Cable/Wire | Detent Lock | Male Pin | 0.126 " | 3.2 mm | Copper Alloy | 2 | 1 | 600 V | Solder Retention | 0.315 in | 8 mm | Tin | Solder | Nylon Polyamide (PA) | 85 °C | -25 °C | Natural | All | Header | Right Angle Surface Mount | Shrouded - 4 Wall | UL94 V-0 |
JST Sales America Inc. | Square | Board to Cable/Wire | Detent Lock | Male Pin | 0.126 " | 3.2 mm | Copper Alloy | 2 | 1 | 600 V | Solder Retention | 0.315 in | 8 mm | Tin | Solder | Nylon Polyamide (PA) | 85 °C | -25 °C | Natural | All | Header | Right Angle Surface Mount | Shrouded - 4 Wall | UL94 V-0 |
 JST Sales America Inc. | Square | Board to Cable/Wire | Detent Lock | Male Pin | 0.126 " | 3.2 mm | Copper Alloy | 2 | 1 | 600 V | Solder Retention | 0.315 in | 8 mm | Tin | Solder | Nylon Polyamide (PA) | 85 °C | -25 °C | Natural | All | Header | Right Angle Surface Mount | Shrouded - 4 Wall | UL94 V-0 |
