1776166 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 16POS 90DEG 5MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Features | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Voltage - UL | Current - UL | Termination Style | Pitch [x] | Pitch [x] | Contact Material | Housing Material | Positions Per Level | Color | Number of Positions | Header Orientation | Contact Tail Length | Contact Tail Length | Contact Mating Finish | Number of Levels | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

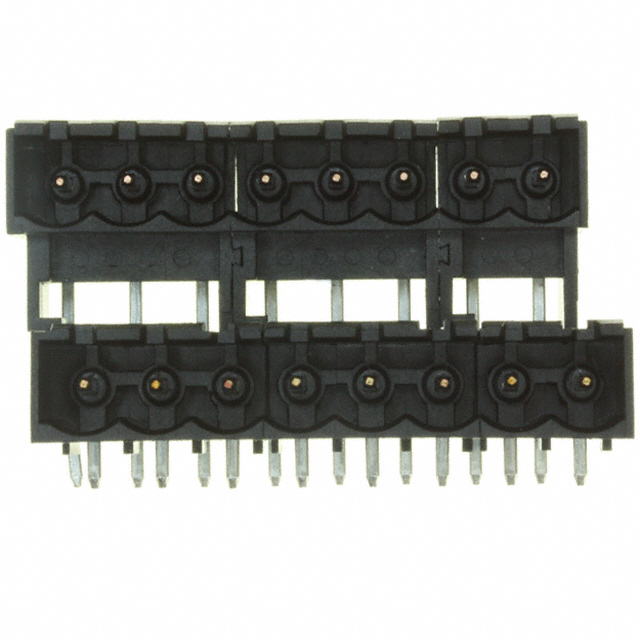

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | Header Male Pins Shrouded (4 Side) | Through Hole | Interlocking (Side) | UL94 V-0 | 0.902 " | 22.9 mm | 300 V | 12 A | Solder | 5 mm | 0.197 in | Copper Alloy | Polyamide (PA) Nylon | 8 | Black | 16 | 90° Right Angle | 3.5 mm | 0.138 in | Tin | 2 | |

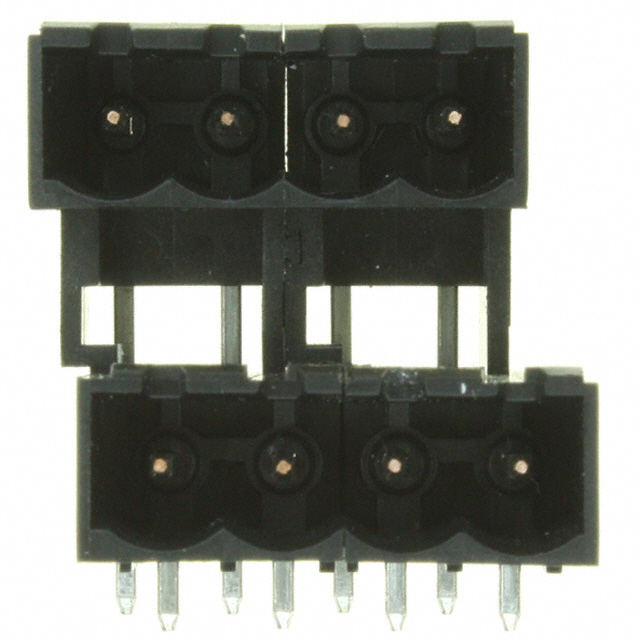

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | Header Male Pins Shrouded (4 Side) | Through Hole | Interlocking (Side) | UL94 V-0 | 0.902 " | 22.9 mm | 300 V | 12 A | Solder | 5 mm | 0.197 in | Copper Alloy | Polyamide (PA) Nylon | 4 | Black | 90° Right Angle | 3.5 mm | 0.138 in | Tin | 2 | 8 |
