S40F2C-P Series
Manufacturer: ODU
Beta
⌘K

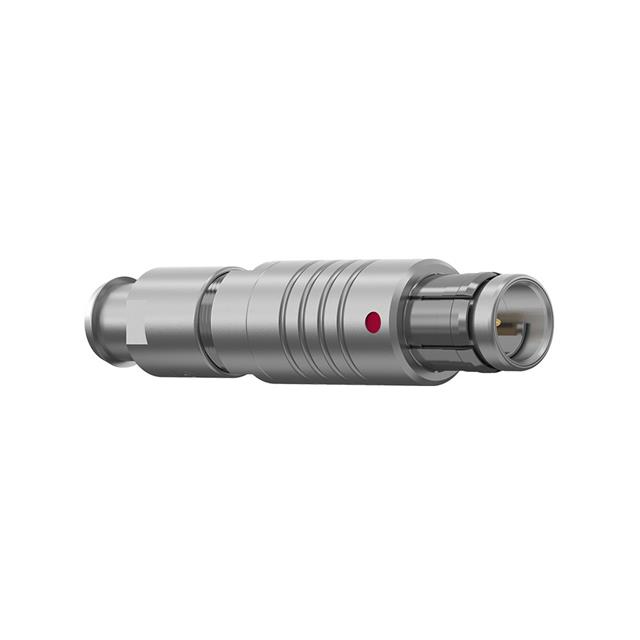

ODU MINI-SNAP PLUG, STY 4, SZ 0,
| Part | Applications | Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Fastening Type | Material Flammability Rating | Shell Size - Insert [custom] | Features | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Insert Material | Shielding | Contact Finish - Mating | Primary Material | Contact Material | Current Rating (Amps) | Connector Type | Ingress Protection | Shell Material | Shell Finish | Orientation [custom] | Mounting Type | Backshell Material, Plating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | Silver | 120 °C | -40 C | 300 VDC | Push-Pull | UL94 V-0 | 0 | Backshell Strain Relief | 0.177 in | 5 mm | 4.5 mm | 0.197 in | Polyetheretherketone (PEEK) | Unshielded | Gold | Metal | Brass | 7.5 A | Plug Male Pins | IP68 - Dust Tight Waterproof | Brass | Chrome over Nickel | 2 | Free Hanging (In-Line) | Brass Chrome over Nickel | 4 | |
Industrial Medical Military Testing Equipment & Measurement | Silver | 120 °C | -40 C | 500 V | Push-Pull | UL94 V-0 | 0 | Backshell Strain Relief | 0.157 in | 4.5 mm | 4 mm | 0.177 " | Polyetheretherketone (PEEK) | Unshielded | Gold | Metal | Brass | 7.5 A | Plug Male Pins | IP68 - Dust Tight Waterproof | Brass | Chrome over Nickel | 2 | Free Hanging (In-Line) | Brass Chrome over Nickel | 2 |
