395-016 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 16POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Color | Gender | Card Type | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Type | Number of Positions/Bay/Row | Pitch | Pitch | Termination | Number of Positions | Mounting Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Features | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

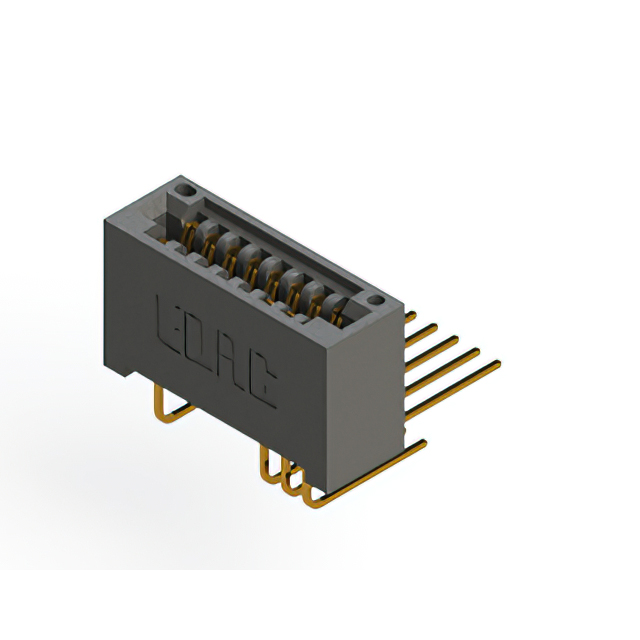

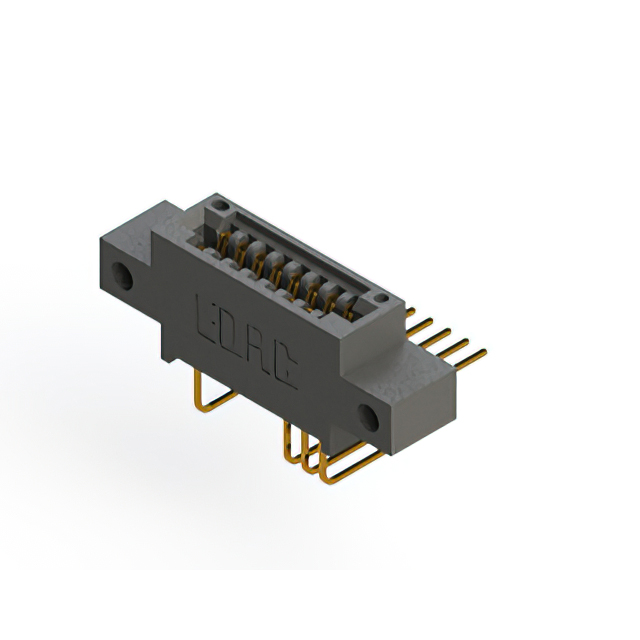

 EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Right Angle Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | |||

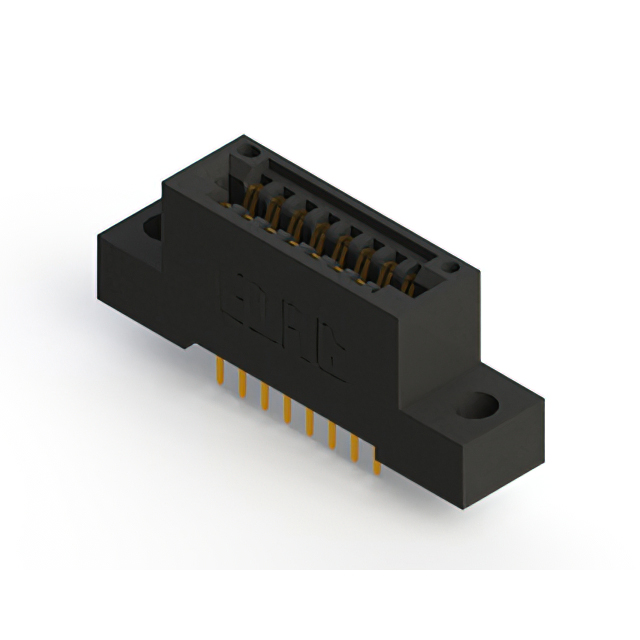

 EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Right Angle Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | ||||||

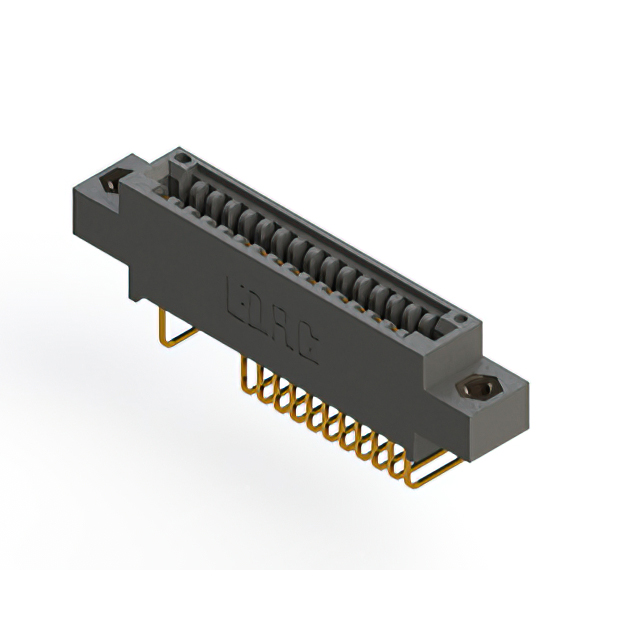

 EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Right Angle Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder Eyelet(s) | 16 | Board Edge Straddle Mount | 2 | 0.25 Ám | 10 Áin | Gold | Card Extender | ||
EDAC Inc. | Polyester Thermoplastic | Black | Female | Non Specified - Single Edge | Copper Alloy | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Cantilever | 16 | 0.1 " | 2.54 mm | Solder | 16 | Through Hole | 0.25 Ám | 10 Áin | Gold | 1 | 1 | |||||
EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Wire Wrap | 16 | Through Hole | 2 | 0.25 Ám | 10 Áin | Gold | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Black | Female | Non Specified - Dual Edge | Copper Alloy | 0.156 " | 3.96 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 8 | 0.1 " | 2.54 mm | Solder | 16 | Through Hole | 2 | 0.25 Ám | 10 Áin | Gold |
