C6000AL Series

Catalog

SWITCH ROCKER SPST 20A 277V

Part	Approval Agency	Actuator Type	Ingress Protection	Current Rating (Amps)	Color - Actuator/Cap	Circuit	Actuator Marking	Mounting Type	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Termination Style	Features
BULGIN LIMITED C6000ALBR-1223W	CSA ENEC UL	Flat	Splash Proof	20 A	Red	SPST	O -	Panel Mount Snap-In	On-Off	30.1 mm	11.1 mm	277 V	Quick Connect - 0.250" (6.3mm)
BULGIN LIMITED C6000ALBB	CSA ENEC UL	Flat	Splash Proof	20 A	Black	SPST	No Marking	Panel Mount Snap-In	On-Off	30.1 mm	11.1 mm	277 V	Quick Connect - 0.250" (6.3mm)
BULGIN LIMITED C6000ALBB-G74	CSA ENEC UL	Flat	Splash Proof	20 A	Black	SPST	No Marking	Panel Mount Snap-In	On-Off	30.1 mm	11.1 mm	277 V	Quick Connect - 0.250" (6.3mm)	Protective Cover

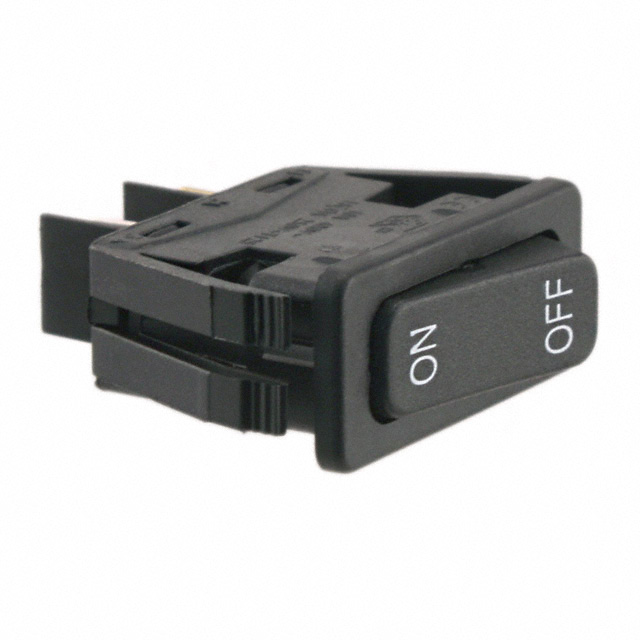

BULGIN LIMITED C6000ALBB-1229W	CSA ENEC UL	Flat	Splash Proof	20 A	Black	SPST	ON OFF	Panel Mount Snap-In	On-Off	30.1 mm	11.1 mm	277 V	Quick Connect - 0.250" (6.3mm)
BULGIN LIMITED C6000ALBB-1223W	CSA ENEC UL	Flat	Splash Proof	20 A	Black	SPST	O -	Panel Mount Snap-In	On-Off	30.1 mm	11.1 mm	277 V	Quick Connect - 0.250" (6.3mm)
