892-110 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 110POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Termination	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Color	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Contact Finish	Mounting Type	Contact Type	Features
EDAC Inc. 892-110-544-204	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Gold	Through Hole	Cantilever

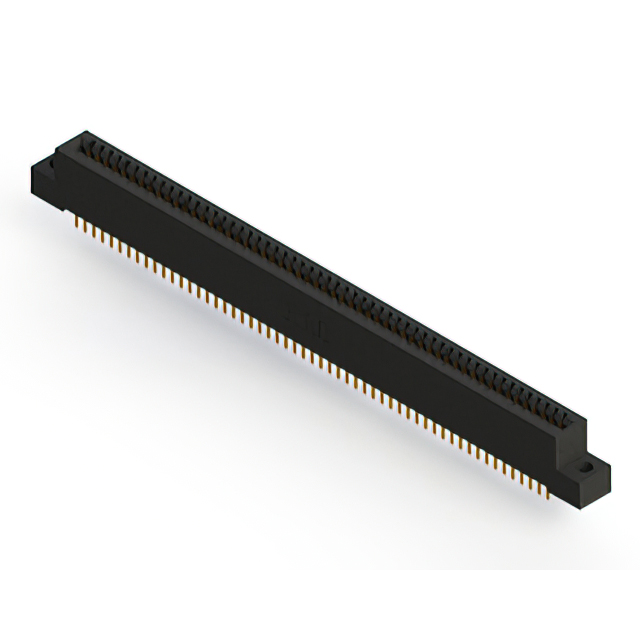

EDAC Inc. 892-110-521-204	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Gold	Through Hole	Cantilever
EDAC Inc. 892-110-555-212	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Gold	Board Edge Straddle Mount	Cantilever	Card Extender
EDAC Inc. 892-110-521-207	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Gold	Through Hole	Cantilever
EDAC Inc. 892-110-540-207	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Gold	Through Hole	Cantilever

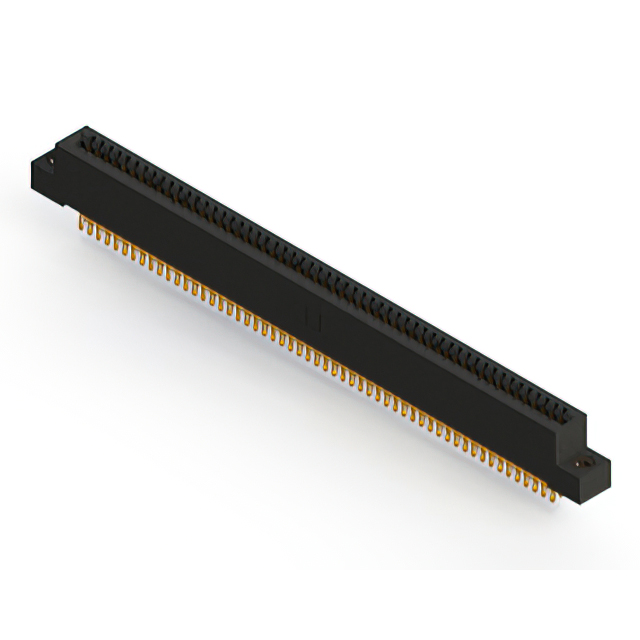

EDAC Inc. 892-110-555-208	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Gold	Board Edge Straddle Mount	Cantilever	Card Extender
EDAC Inc. 892-110-559-208	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Gold	Right Angle Through Hole	Cantilever
EDAC Inc. 892-110-558-208	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Gold	Right Angle Through Hole	Cantilever
EDAC Inc. 892-110-521-212	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Gold	Through Hole	Cantilever
EDAC Inc. 892-110-559-207	Polyphenylene Sulfide (PPS)	2	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	55	Black	125 °C	-40 C	Dual	110	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Gold	Right Angle Through Hole	Cantilever
