TSC2007 Series

12-bit, nanopower, 4-wire micro touch screen controller

Catalog

12-bit, nanopower, 4-wire micro touch screen controller

Part	Utilized IC / Part	Supplied Contents	Sensor Type	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Reference	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Mounting Type	Supplier Device Package	Resolution (Bits)	Touchscreen

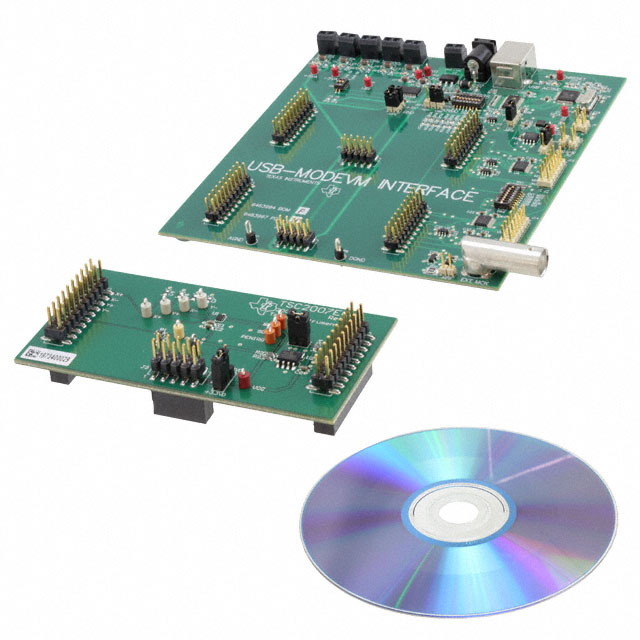

Texas Instruments TSC2007EVM	TSC2007	Board(s)	Touch Screen	I2C
Texas Instruments TSC2007IPWG4					85 °C	-40 °C	External	226.2 µA	1.2 V	3.6 V	0.173 in	16-TSSOP	4.4 mm	Surface Mount	16-TSSOP	12 b	4 Wire Resistive
Texas Instruments TSC2007IYZGR					85 °C	-40 °C	External	226.2 µA	1.2 V	3.6 V		12-UFBGA DSBGA		Surface Mount	12-DSBGA	12 b	4 Wire Resistive
Texas Instruments TSC2007IYZGT					85 °C	-40 °C	External	226.2 µA	1.2 V	3.6 V		12-UFBGA DSBGA		Surface Mount	12-DSBGA	12 b	4 Wire Resistive
Texas Instruments TSC2007IPWRG4					85 °C	-40 °C	External	226.2 µA	1.2 V	3.6 V	0.173 in	16-TSSOP	4.4 mm	Surface Mount	16-TSSOP	12 b	4 Wire Resistive

Catalog

12-bit, nanopower, 4-wire micro touch screen controller

Key Features

• 4-Wire Touch Screen InterfaceSingle 1.2V to 3.6V Supply/ReferenceRatiometric ConversionEffective Throughput Rate:Up to 20kHz (8-Bit) or 10kHz (12-Bit)Preprocessing to Reduce Bus ActivityI2C™ Interface Supports:Standard, Fast, and High-Speed ModesSimple, Command-Based User Interface:TSC2003 Compatible8- or 12-Bit ResolutionOn-Chip Temperature MeasurementTouch Pressure MeasurementDigital BufferedPENIRQOn-Chip, ProgrammablePENIRQPull-UpAuto Power-Down ControlLow Power:32.24µA at 1.2V, Fast Mode, 8.2kHz Eq Rate39.31µA at 1.8V, Fast Mode, 8.2kHz Eq Rate53.32µA at 2.7V, Fast Mode, 8.2kHz Eq RateEnhanced ESD Protection:±8kV HBM±1kV CDM±25kV Air Gap Discharge±15kV Contact Discharge1.5 x 2 WCSP-12 and 5 x 6.4 TSSOP-16 PackagesAPPLICATIONSCellular PhonesPDA, GPS, and Media PlayersPortable InstrumentsPoint-of-Sale TerminalsMultiscreen Touch Control SystemsU.S. Patent NO. 6246394; other patents pending.I2C is a trademark of NXP Semiconductors.All other trademarks are the property of their respective owners.4-Wire Touch Screen InterfaceSingle 1.2V to 3.6V Supply/ReferenceRatiometric ConversionEffective Throughput Rate:Up to 20kHz (8-Bit) or 10kHz (12-Bit)Preprocessing to Reduce Bus ActivityI2C™ Interface Supports:Standard, Fast, and High-Speed ModesSimple, Command-Based User Interface:TSC2003 Compatible8- or 12-Bit ResolutionOn-Chip Temperature MeasurementTouch Pressure MeasurementDigital BufferedPENIRQOn-Chip, ProgrammablePENIRQPull-UpAuto Power-Down ControlLow Power:32.24µA at 1.2V, Fast Mode, 8.2kHz Eq Rate39.31µA at 1.8V, Fast Mode, 8.2kHz Eq Rate53.32µA at 2.7V, Fast Mode, 8.2kHz Eq RateEnhanced ESD Protection:±8kV HBM±1kV CDM±25kV Air Gap Discharge±15kV Contact Discharge1.5 x 2 WCSP-12 and 5 x 6.4 TSSOP-16 PackagesAPPLICATIONSCellular PhonesPDA, GPS, and Media PlayersPortable InstrumentsPoint-of-Sale TerminalsMultiscreen Touch Control SystemsU.S. Patent NO. 6246394; other patents pending.I2C is a trademark of NXP Semiconductors.All other trademarks are the property of their respective owners.

Description

The TSC2007 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. In addition to these standard features, the TSC2007 offers preprocessing of the touch screen measurements to reduce bus loading, thus reducing the consumption of host processor resources that can then be redirected to more critical functions. The TSC2007 supports an I2C serial bus and data transmission protocol in all three defined modes: standard, fast, and high-speed. It offers programmable resolution of 8 or 12 bits to accommodate different screen sizes and performance needs. The TSC2007 is available in a 12-lead,(1.555 ±0.055mm) x (2.055 ±0.055mm), 3 x 4 array, wafer chip-scale package (WCSP), and a 16-pin, TSSOP package. The TSC2007 is characterized for the -40°C to +85°C industrial temperature range. The TSC2007 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. In addition to these standard features, the TSC2007 offers preprocessing of the touch screen measurements to reduce bus loading, thus reducing the consumption of host processor resources that can then be redirected to more critical functions. The TSC2007 supports an I2C serial bus and data transmission protocol in all three defined modes: standard, fast, and high-speed. It offers programmable resolution of 8 or 12 bits to accommodate different screen sizes and performance needs. The TSC2007 is available in a 12-lead,(1.555 ±0.055mm) x (2.055 ±0.055mm), 3 x 4 array, wafer chip-scale package (WCSP), and a 16-pin, TSSOP package. The TSC2007 is characterized for the -40°C to +85°C industrial temperature range.
