0915-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

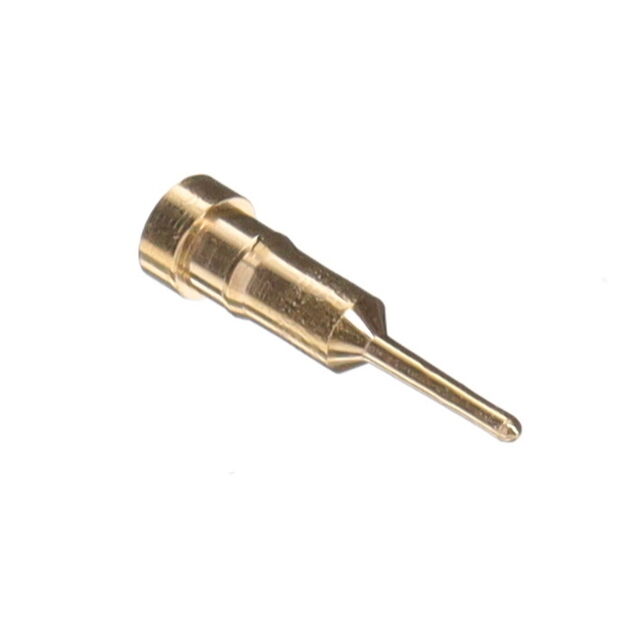

CONN PC PIN CIRC .017DIA TINLEAD
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall | Length - Overall | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Length - Above Flange [custom] | Length - Above Flange [custom] | Terminal Style | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 200 Áin | 5.08 Ám | 0.072 " | 1.83 mm | Brass Alloy | 0.017 in | 0.43 mm | 0.28 in | 7.11 mm | Non-Insulated | 1.45 mm | 0.057 in | Tin-Lead | 6.32 mm | 0.249 in | Single End | Press-Fit | PC Pin |
Mill-Max Manufacturing Corp. | Through Hole | 200 Áin | 5.08 Ám | 0.072 " | 1.83 mm | Brass Alloy | 0.017 in | 0.43 mm | 0.28 in | 7.11 mm | Non-Insulated | 1.45 mm | 0.057 in | Tin | 6.32 mm | 0.249 in | Single End | Press-Fit | PC Pin |
 Mill-Max Manufacturing Corp. | Through Hole | 10 Áin | 0.25 Ám | 0.072 " | 1.83 mm | Brass Alloy | 0.017 in | 0.43 mm | 0.28 in | 7.11 mm | Non-Insulated | 1.45 mm | 0.057 in | Gold | 6.32 mm | 0.249 in | Single End | Press-Fit | PC Pin |
