2473 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

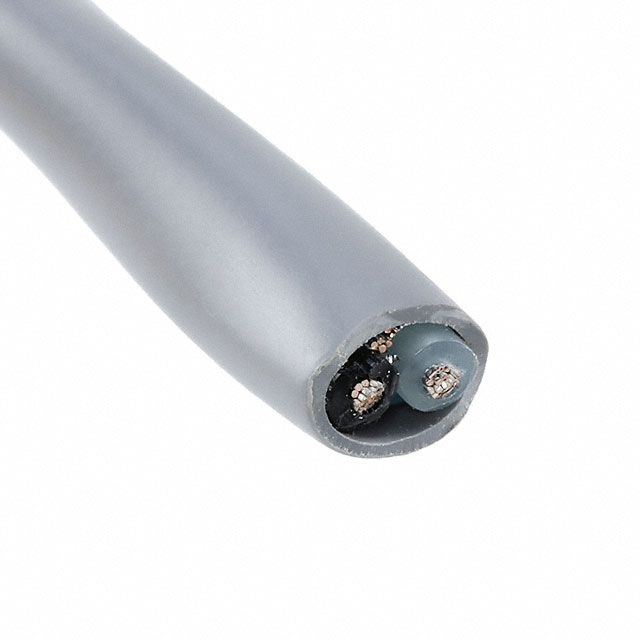

CABLE 2CON 12AWG SLATE SHLD 500'
| Part | Shield Coverage | Shield Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Material | Jacket Color | Jacket (Insulation) Material | Wire Gauge | Length | Length | Number of Conductors | Cable Type | Conductor Insulation | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | 19 | 25 AWG | Drain Wire | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 12 AWG | 152.4 m | 500 ft | 2 | Multi-Conductor | Polyethylene (PE) | Communication Control | -20 ░C | 60 °C | 0.412 in | 10.46 mm | 600 V | 1.016 mm | 0.04 in |
