TRF370417 Series

50MHz to 6.0 GHz Quadrature Modulator, 1.7V common-mode voltage

Catalog

50MHz to 6.0 GHz Quadrature Modulator, 1.7V common-mode voltage

Part	Function	LO Frequency [Min]	LO Frequency [Max]	Package / Case	Test Frequency	Noise Floor	P1dB	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Frequency [Min]	RF Frequency [Max]	Supplier Device Package	Mounting Type	For Use With/Related Products	Supplied Contents	Type	Frequency [Min]	Frequency [Max]
Texas Instruments TRF370417IRGER	Modulator	50 MHz	6 GHz	24-VFQFN Exposed Pad	2.14 GHz	-162 dBm/Hz	12 dBm	4.5 V	5.5 V	50 MHz	6 GHz	24-VQFN (4x4)	Surface Mount

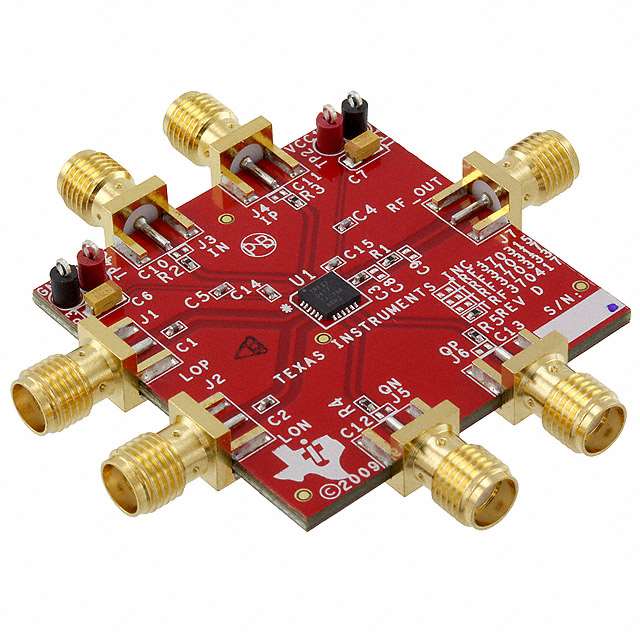

Texas Instruments TRF370417EVM														TRF370417	Board(s)	Modulator	50 MHz	6 GHz

Catalog

50MHz to 6.0 GHz Quadrature Modulator, 1.7V common-mode voltage

Key Features

• 76-dBc Single-Carrier WCDMA ACPR at –8 dBmChannel PowerLow Noise Floor: –l162.3 dBm/Hz at 2140 MHzOIP3 of 26.5 dBm at 2140 MHzP1dB of 12 dBm at 2140 MHzCarrier Feedthrough of –38 dBm at 2140 MHzSide-Band Suppression of –50 dBc at 2140 MHzSingle Supply: 4.5-V–5.5-V OperationSilicon Germanium Technology1.7-V CM at I, Q Baseband Inputs76-dBc Single-Carrier WCDMA ACPR at –8 dBmChannel PowerLow Noise Floor: –l162.3 dBm/Hz at 2140 MHzOIP3 of 26.5 dBm at 2140 MHzP1dB of 12 dBm at 2140 MHzCarrier Feedthrough of –38 dBm at 2140 MHzSide-Band Suppression of –50 dBc at 2140 MHzSingle Supply: 4.5-V–5.5-V OperationSilicon Germanium Technology1.7-V CM at I, Q Baseband Inputs

Description

The TRF370417 is a low-noise direct quadrature modulator, capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF370417 is a high-performance, superior-linearity device that operates at RF frequencies of 50 MHz through 6 GHz. The modulator is implemented as a double-balanced mixer. The RF output block consists of a differential to single-ended converter and an RF amplifier capable of driving a single-ended 50-Ω load without any need of external components. The TRF370417 requires a 1.7-V common-mode voltage for optimum linearity performance. The TRF370417 is a low-noise direct quadrature modulator, capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF370417 is a high-performance, superior-linearity device that operates at RF frequencies of 50 MHz through 6 GHz. The modulator is implemented as a double-balanced mixer. The RF output block consists of a differential to single-ended converter and an RF amplifier capable of driving a single-ended 50-Ω load without any need of external components. The TRF370417 requires a 1.7-V common-mode voltage for optimum linearity performance.
