68498 Series

Catalog

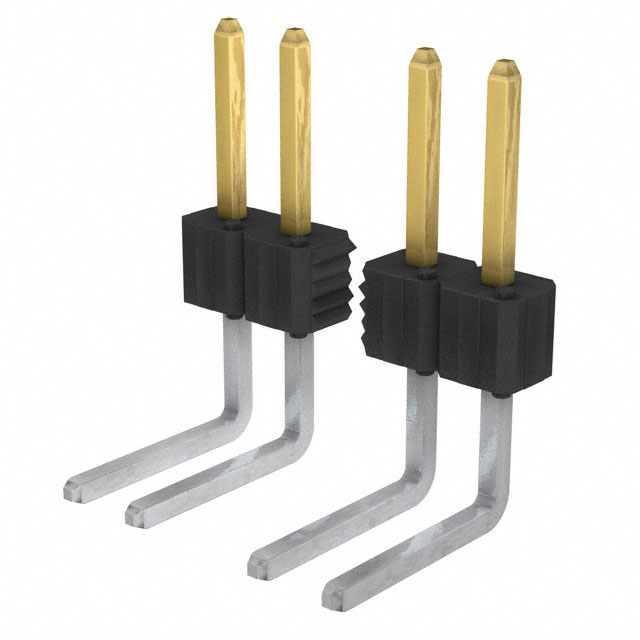

SINGLE ROW RIGHT ANGLE

Part	Number of Rows	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Contact Shape	Fastening Type	Contact Finish - Mating	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Material Flammability Rating	Contact Material	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post
Amphenol ICC (FCI) 68498-126HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	26	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	30 Áin	0.76 Ám	Through Hole Right Angle
Amphenol ICC (FCI) 68498-130HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	30	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	30 Áin	0.76 Ám	Through Hole Right Angle
Amphenol ICC (FCI) 68498-419HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull		Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	19	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	100 çin	2.54 çm	Through Hole Right Angle	Tin

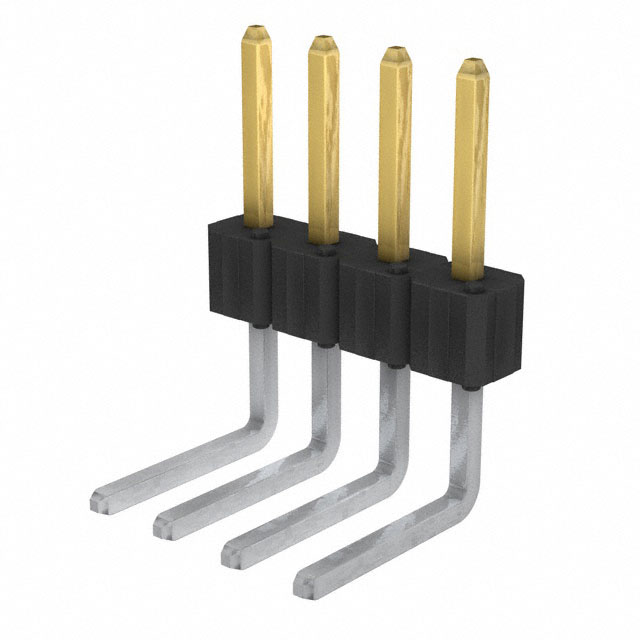

Amphenol ICC (FCI) 68498-404HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull		Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	4	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	100 çin	2.54 çm	Through Hole Right Angle	Tin
Amphenol ICC (FCI) 68498-131HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	31	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	30 Áin	0.76 Ám	Through Hole Right Angle
Amphenol ICC (FCI) 68498-436	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull		Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	36	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	100 çin	2.54 çm	Through Hole Right Angle
Amphenol ICC (FCI) 68498-134HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	34	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	30 Áin	0.76 Ám	Through Hole Right Angle
Amphenol ICC (FCI) 68498-204HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	4	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	15 µin	0.38 µm	Through Hole Right Angle
Amphenol ICC (FCI) 68498-136HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	36	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	30 Áin	0.76 Ám	Through Hole Right Angle
Amphenol ICC (FCI) 68498-106HLF	1	110 VDC	0.1 in	2.54 mm	Black	Solder	5 A	Header	All	Square	Push-Pull	Gold or Gold GXT™	Unshrouded	0.095 in	2.41 mm	0.23 in	5.84 mm	6	UL94 V-0	Phosphor Bronze	Male Pin	0.22 in	5.58 mm	30 Áin	0.76 Ám	Through Hole Right Angle
