306-031 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.156

Part	Material - Insulation	Termination Rows	Number of Rows [custom]	Contact Material	Number of Positions/Bay/Row [custom]	Contact Finish	Mounting Type	Flange Feature	Color	Card Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch	Pitch	Read Out	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 306-031-420-108	Polyester Thermoplastic	1	2	Copper Alloy	31	Tin	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62
EDAC Inc. 306-031-521-102	Polyester Thermoplastic	1	2	Copper Alloy	31	Gold	Panel Mount Through Hole	Flush Mount Top Opening Unthreaded	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62	3.25 mm	0.128 "	0.25 Ám	10 Áin
EDAC Inc. 306-031-521-112	Polyester Thermoplastic	1	2	Copper Alloy	31	Gold	Panel Mount Through Hole	Flush Mount Side Opening Unthreaded	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62	3.25 mm	0.128 "	0.25 Ám	10 Áin
EDAC Inc. 306-031-420-112	Polyester Thermoplastic	1	2	Copper Alloy	31	Tin	Panel Mount Through Hole	Flush Mount Side Opening Unthreaded	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62	3.25 mm	0.128 "
EDAC Inc. 306-031-420-168	Polyester Thermoplastic	1	2	Copper Alloy	31	Tin	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62					Card Guides

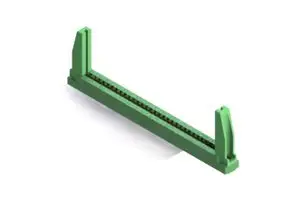

EDAC Inc. 306-031-520-178	Polyester Thermoplastic	1	2	Copper Alloy	31	Gold	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62			0.25 Ám	10 Áin	Card Guides

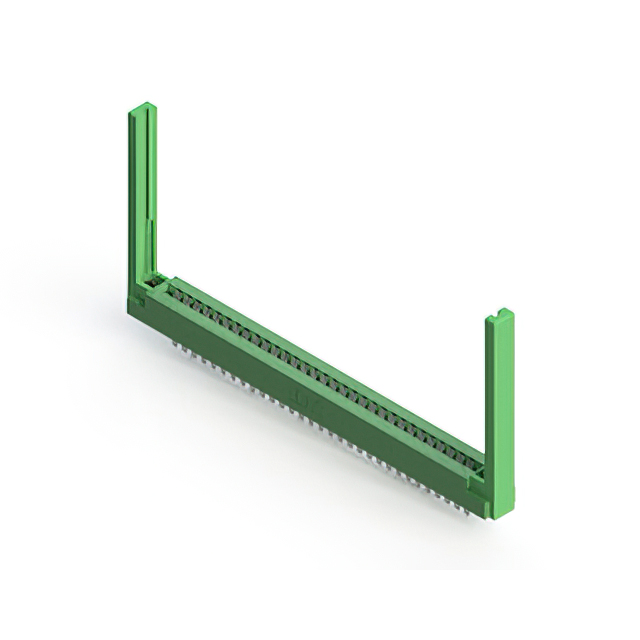

EDAC Inc. 306-031-400-168	Polyester Thermoplastic	1	2	Copper Alloy	31	Tin	Panel Mount	4-40 Flush Mount Threaded Insert Top Opening	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder Eyelet(s)	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62					Card Guides
EDAC Inc. 306-031-520-104	Polyester Thermoplastic	1	2	Copper Alloy	31	Gold	Panel Mount Through Hole	Flush Mount Top Opening Unthreaded	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62	3.96 mm	0.156 "	0.25 Ám	10 Áin
EDAC Inc. 306-031-520-102	Polyester Thermoplastic	1	2	Copper Alloy	31	Gold	Panel Mount Through Hole	Flush Mount Top Opening Unthreaded	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62	3.25 mm	0.128 "	0.25 Ám	10 Áin
EDAC Inc. 306-031-400-104	Polyester Thermoplastic	1	2	Copper Alloy	31	Tin	Panel Mount	Flush Mount Top Opening Unthreaded	Green	Non Specified - Dual Edge	Female	-40 C	105 ░C	Solder Eyelet(s)	3.96 mm	0.156 in	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	62	3.96 mm	0.156 "
