M20-997 Series

Catalog

CONN, HEADER, 10POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Contact Finish - Mating	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Style	Shrouding	Number of Positions	Contact Type	Insulation Material	Insulation Color	Fastening Type	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish - Post
Harwin Inc. M20-9970545	3 A	Gold	2	0.335 in	8.51 mm	-40 C	105 ░C	All	UL94 V-0	2.95 mm	0.116 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	Through Hole	Square	Brass	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	10	Male Pin	Nylon 6T Polyamide (PA6T)	Black	Push-Pull	14 mm	0.551 in	Header Cuttable

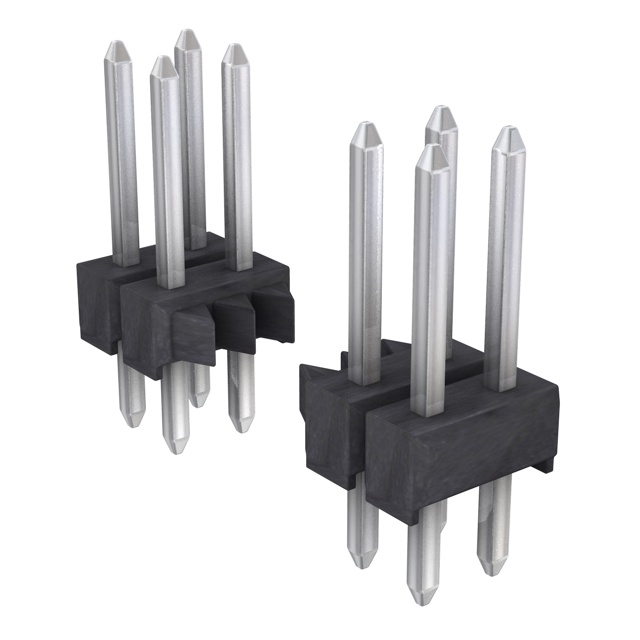

Harwin Inc. M20-9970646	3 A		2	0.335 in	8.51 mm	-40 C	105 ░C	All	UL94 V-0	2.95 mm	0.116 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	Through Hole	Square	Brass	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	12	Male Pin	Nylon 6T Polyamide (PA6T)	Black	Push-Pull	14 mm	0.551 in	Header Cuttable	Tin

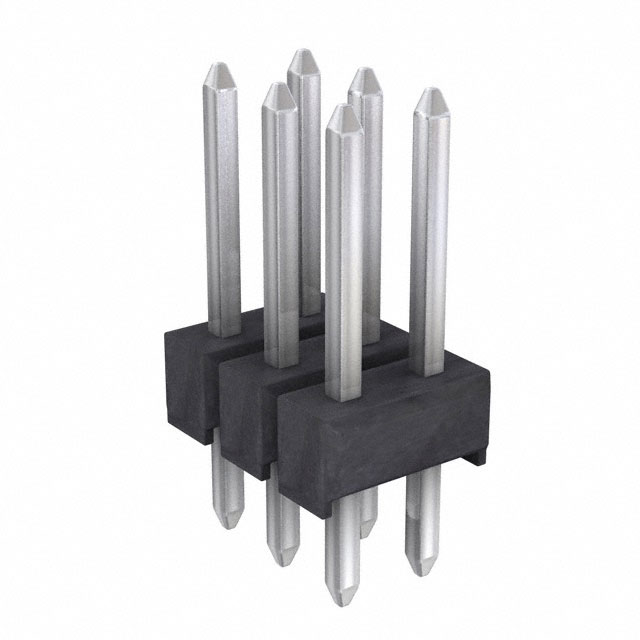

Harwin Inc. M20-9970346	3 A		2	0.335 in	8.51 mm	-40 C	105 ░C	All	UL94 V-0	2.95 mm	0.116 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	Through Hole	Square	Brass	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	6	Male Pin	Nylon 6T Polyamide (PA6T)	Black	Push-Pull	14 mm	0.551 in	Header Cuttable	Tin
Harwin Inc. M20-9973646	3 A		2	0.335 in	8.51 mm	-40 C	105 ░C	All	UL94 V-0	2.95 mm	0.116 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	Through Hole	Square	Brass	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	72	Male Pin	Nylon 6T Polyamide (PA6T)	Black	Push-Pull	14 mm	0.551 in	Header Cuttable	Tin
Harwin Inc. M20-9970445	3 A	Gold	2	0.335 in	8.51 mm	-40 C	105 ░C	All	UL94 V-0	2.95 mm	0.116 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	Through Hole	Square	Brass	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	8	Male Pin	Nylon 6T Polyamide (PA6T)	Black	Push-Pull	14 mm	0.551 in	Header Cuttable

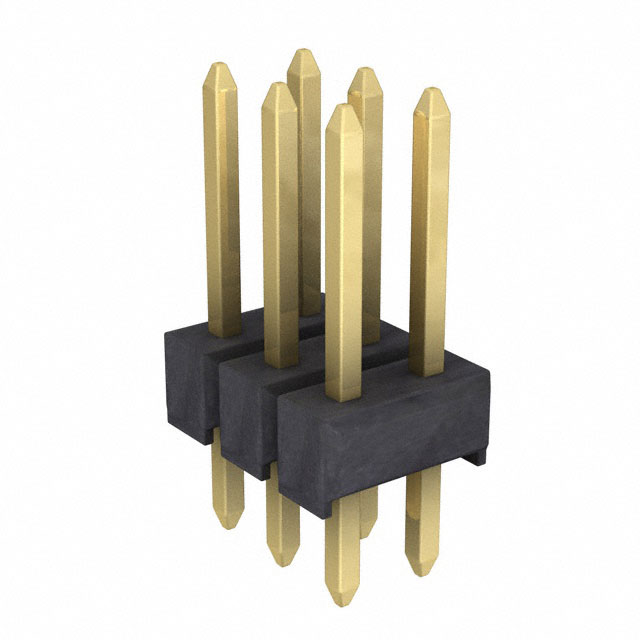

Harwin Inc. M20-9970345	3 A	Gold	2	0.335 in	8.51 mm	-40 C	105 ░C	All	UL94 V-0	2.95 mm	0.116 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	Through Hole	Square	Brass	0.1 "	2.54 mm	Board to Board Cable	Unshrouded	6	Male Pin	Nylon 6T Polyamide (PA6T)	Black	Push-Pull	14 mm	0.551 in	Header Cuttable
