HFW23S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

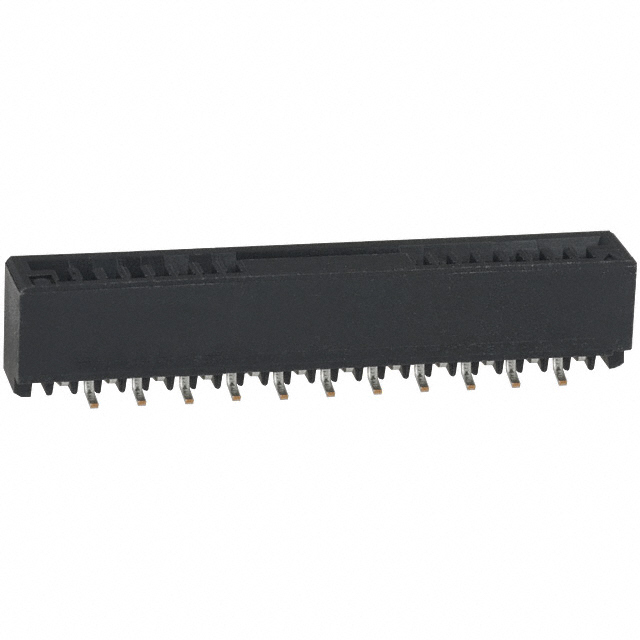

CONN FFC FPC VERT 23POS 1MM SMD
| Part | FFC, FCB Thickness [z] | Pitch [x] | Pitch [x] | Contact Material | Termination | Connector/Contact Type | Height Above Board | Height Above Board | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Material Flammability Rating | Housing Color | Voltage Rating | Mounting Type | Mating Cycles | Cable End Type | Flat Flex Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 0.3 mm 0.33 mm | 0.039 in | 1 mm | Phosphor Bronze | Solder | Contacts Vertical - 1 Sided | 5.3 mm | 0.209 in | Glass Filled Nylon 6T Polyamide (PA6T) | 85 °C | -55 °C | Tin | UL94 V-0 | Black | 100 V | Surface Mount | 30 | Straight Tapered | FFC FPC | 23 |
