726-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

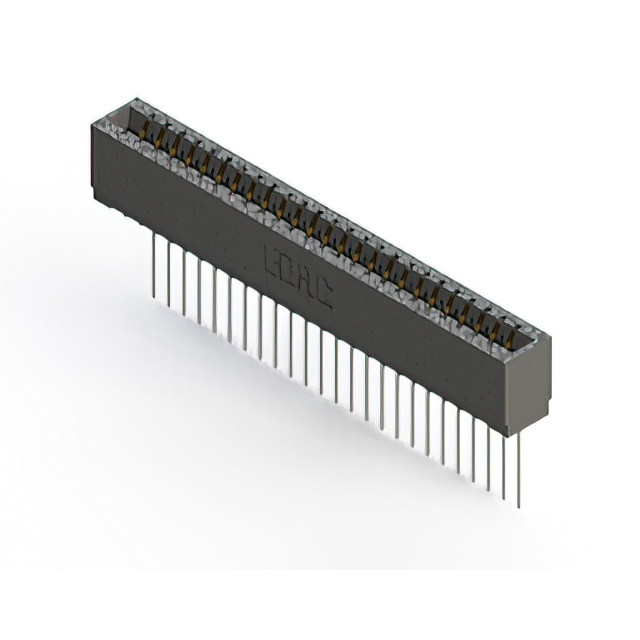

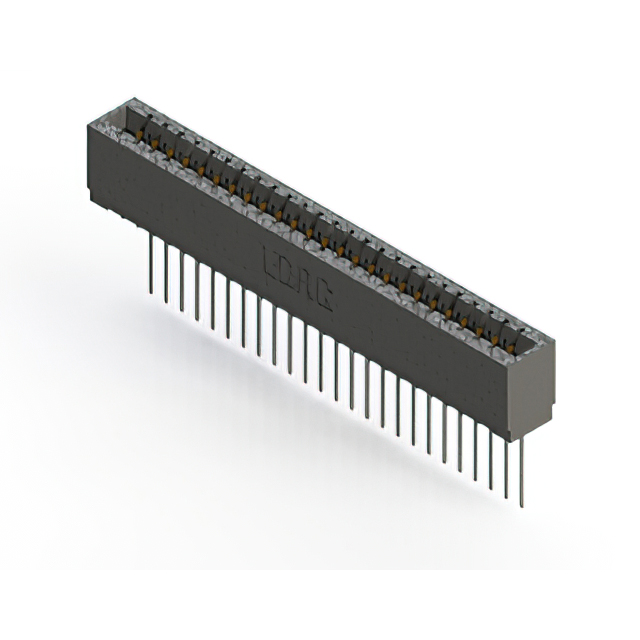

CONN EDGE SGL FMALE 25POS 0.125
| Part | Material - Insulation | Termination Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Number of Positions | Color | Contact Material | Number of Positions/Bay/Row | Card Type | Number of Rows | Pitch | Pitch | Read Out | Gender | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 30 Áin | 0.76 Ám | Press-Fit | -40 C | 105 ░C | Cantilever | Through Hole | 25 | Black | Copper Alloy | 25 | Non Specified - Single Edge | 1 | 3.18 mm | 0.125 in | Single | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
