PAT-10 Series

Catalog

LCU-SCU SM 2MM YELLOW DUPLEX 10M

Part	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Color - Cable	Return Loss	Color - Connectors	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	Type	Cable Type	2nd Connector	Features	Ratings	1st Connector	Length - Overall [x]	Length - Overall [x]	Jacket (Insulation) Material	Return Loss [Min]	Return Loss [Max]
FiberSource, Inc PAT-10-HC-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	55 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	SC/UPC	Low Smoke	LSZH	LC/UPC	10 m	32.8 '
FiberSource, Inc PAT-10-HH-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	55 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	LC Duplex	Low Smoke	LSZH	LC Duplex	10 m	32.8 '
FiberSource, Inc PAT-10-HD-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	65 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	SC Duplex	Low Smoke	LSZH	LC Duplex	10 m	32.8 '
FiberSource, Inc PAT-10-JD-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	65 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	SC Duplex			LC Duplex	10 m	32.8 '
FiberSource, Inc PAT-10-NN-F-20-D-A		85 °C	-40 C			Blue	0.08 "	2 mm	50/125	Duplex Multimode OM3		LC Duplex			LC Duplex	10 m	32.8 '
FiberSource, Inc PAT-10-CC-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	55 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	SC Duplex	Low Smoke	LSZH	SC Duplex	10 m	32.8 '
FiberSource, Inc PAT-10-DD-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	65 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	SC/APC	Low Smoke	LSZH	SC/APC	10 m	32.8 '

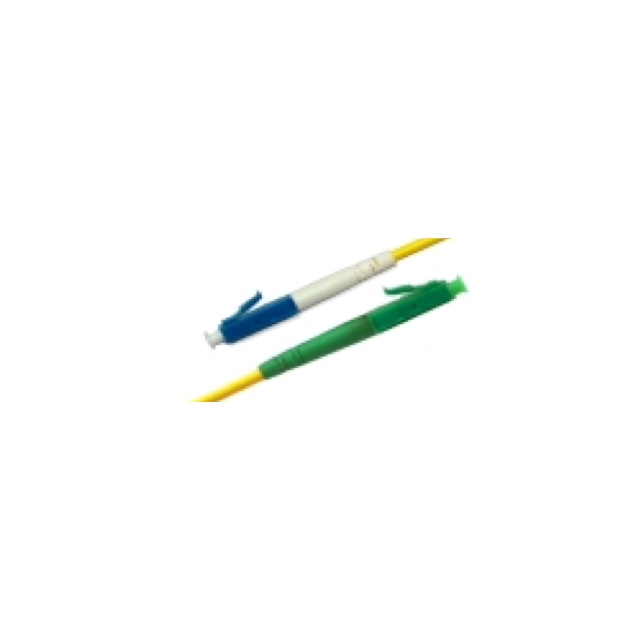

FiberSource, Inc PAT-10-JH-B-20-S-9	0.2 dB	85 °C	-40 C	Yellow		Blue Green	0.08 "	2 mm	9/125	Simplex Singlemode	Bend Insensitive Fiber (BIF)	LC/UPC	Low Smoke	LSZH	LC/APC	10 m	32.8 '	Low Smoke Zero Halogen (LSZH)	55 dB	65 dB
FiberSource, Inc PAT-10-JH-B-20-D-9	0.3 dB	85 °C	-40 C	Yellow	65 dB	Blue	0.08 "	2 mm	9/125	Duplex Singlemode	Bend Insensitive Fiber (BIF)	LC/UPC	Low Smoke	LSZH	LC/APC	10 m	32.8 '

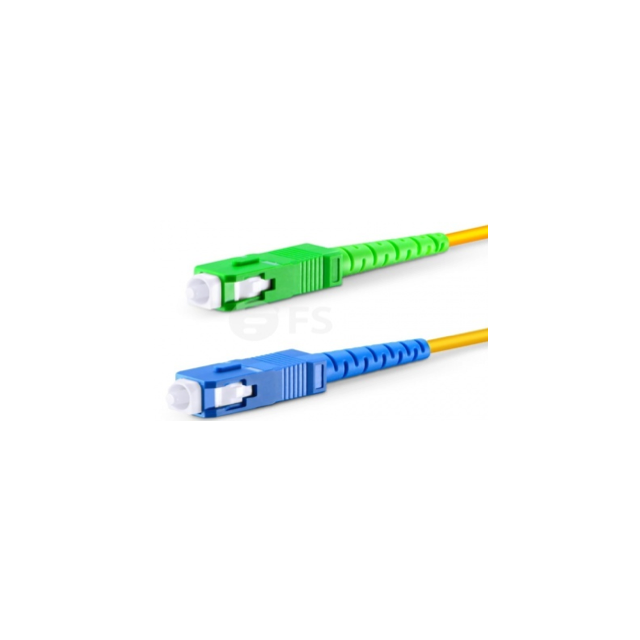

FiberSource, Inc PAT-10-DC-B-30-S-9	0.2 dB	85 °C	-40 C	Yellow			0.12 in	3 mm	9/125	Simplex Singlemode	Bend Insensitive Fiber (BIF)	SC/UPC	Low Smoke	LSZH	SC/APC	10 m	32.8 '		55 dB	65 dB
