70F Series

Catalog

FIXED IND 220MH 39MA 424 OHM TH

Part	Tolerance	Mounting Type	Q @ Freq	Frequency - Self Resonant	Material - Core	Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Shielding	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Package / Case	DC Resistance (DCR) [Max]	Inductance Frequency - Test	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [diameter]	Size / Dimension [x]	Q @ Freq [custom]	Size / Dimension [z]	Size / Dimension [z]

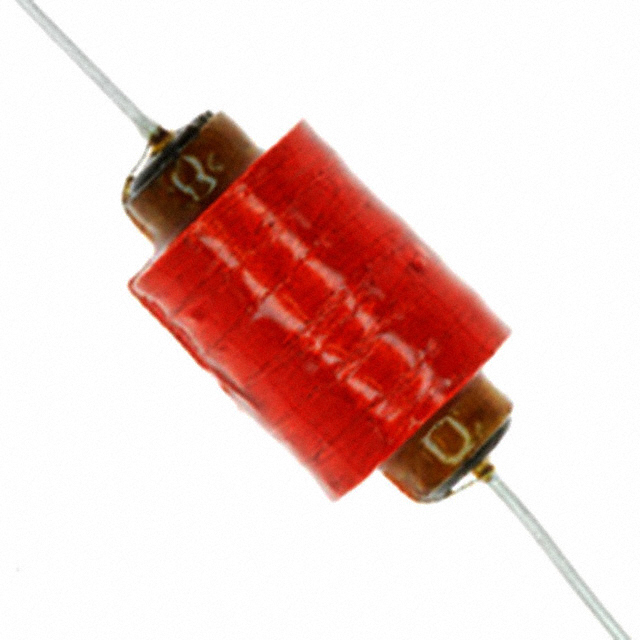

Bourns Inc. 70F221AF-RC	5 %	Through Hole	25 kHz 51	70 kHz	Ferrite	Drum Core Wirewound	0.54 in	0.88 "	22.35 mm	13.72 mm	Unshielded	0.039 A	-55 C	105 ░C	220 mH	Axial	424 Ohm	25 kHz

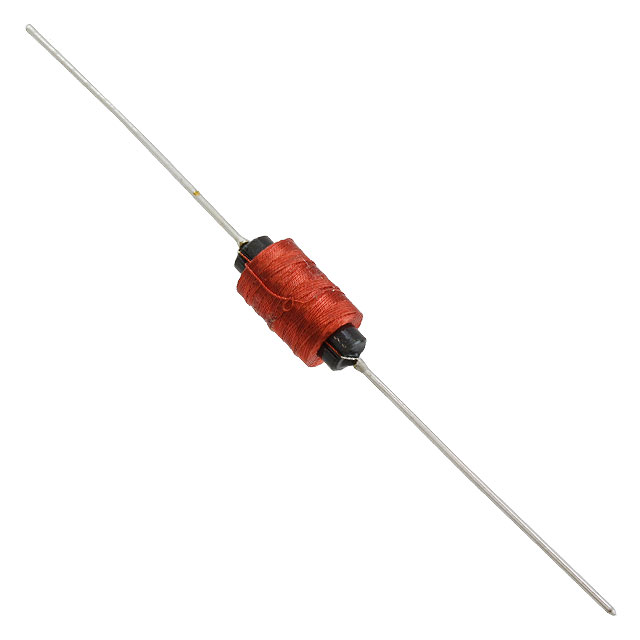

Bourns Inc. 70F252AF-RC	5 %	Through Hole	59 79 kHz	250 kHz	Ferrite	Drum Core Wirewound	0.34 in	0.63 in	16 mm	8.64 mm	Unshielded	46 mA	-55 C	105 ░C	25 mH	Axial		79 kHz	115 Ohm

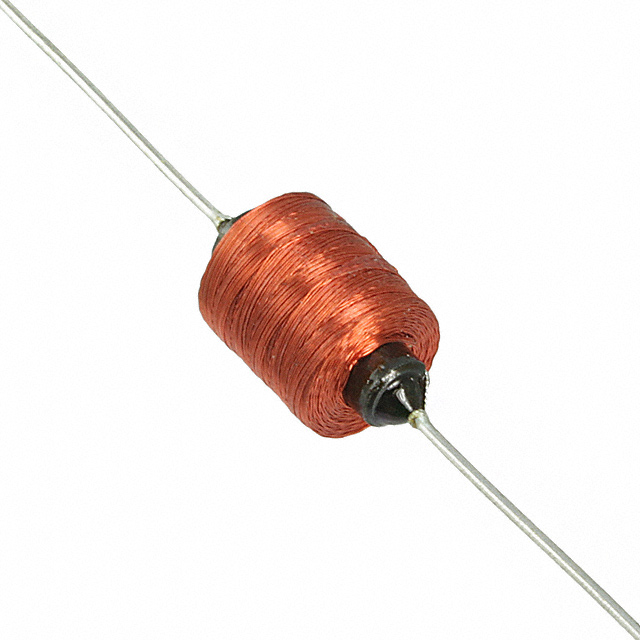

Bourns Inc. 70F822AF-RC	5 %	Through Hole		168 kHz	Ferrite	Drum Core Wirewound					Unshielded	32 mA	-55 C	105 ░C	82 mH	Axial	238 Ohm	79 kHz		79 kHz	50

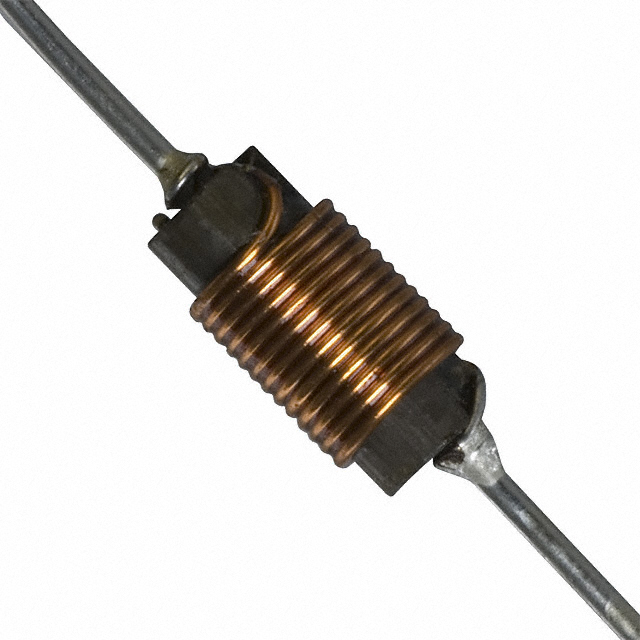

Bourns Inc. 70F106AI-RC	20 %	Through Hole	25 MHz 41	118 MHz	Iron	Drum Core Wirewound			6.35 mm	0.16 "	Unshielded	2.041 A	-55 C	105 ░C	1 µH	Axial	48 mOhm	25 MHz				4.06 mm	6.35 mm
Bourns Inc. 70F126AI-RC	10 %	Through Hole		118 MHz	Iron	Drum Core Wirewound			6.35 mm	0.16 "	Unshielded	1.666 A	-55 C	105 ░C	1.2 µH	Axial		7.9 MHz	72 mOhm	7.9 MHz	45	4.06 mm	6.35 mm
Bourns Inc. 70F393AI-RC	5 %	Through Hole		760 kHz	Iron	Drum Core Wirewound	0.27 in	0.38 "	9.65 mm	6.86 mm	Unshielded	51 mA	-55 C	105 ░C	3.9 mH	Axial	57.6 Ohm	250 kHz			53			250 kHz

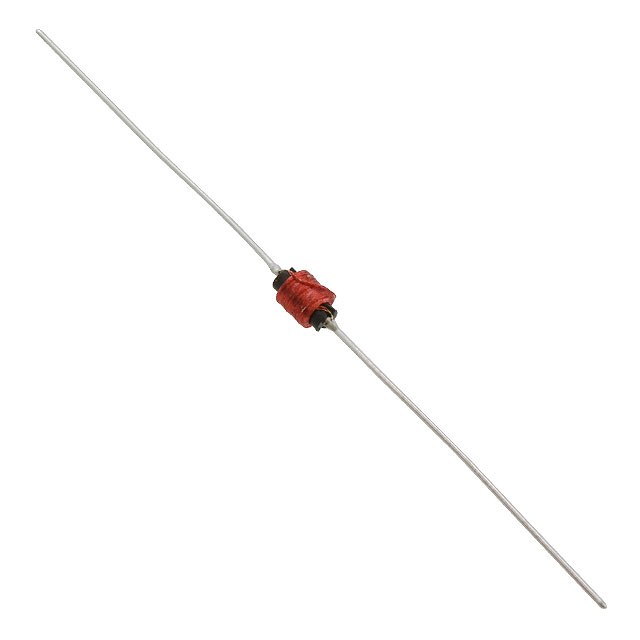

Bourns Inc. 70F504AI-RC	5 %	Through Hole		1.8 MHz	Iron	Drum Core Wirewound	0.19 in	0.25 in		4.83 mm	Unshielded	0.091 A	-55 C	105 ░C	500 µH	Axial	18 Ohm	790 kHz					6.35 mm

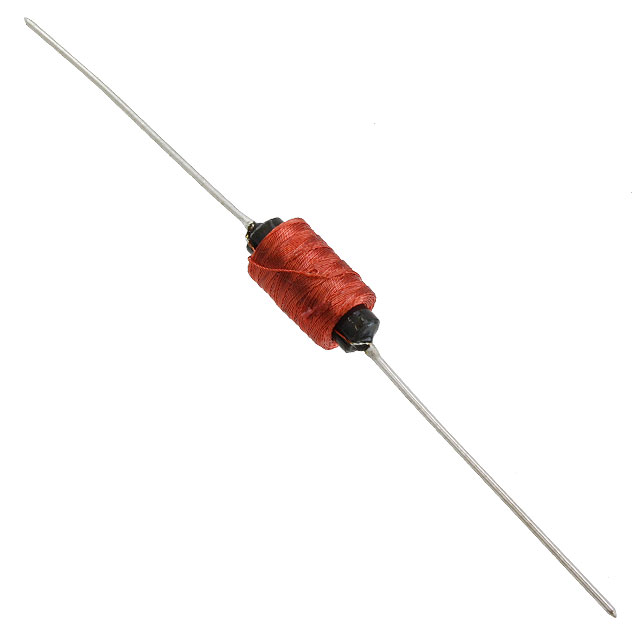

Bourns Inc. 70F272AF-RC	5 %	Through Hole		244 kHz	Ferrite	Drum Core Wirewound			0.63 in 16 mm	0.35 " 8.89 mm	Unshielded	45 mA	-55 C	105 ░C	27 mH	Axial	120 Ohm	79 kHz		79 kHz	61
Bourns Inc. 70F271AF	5 %	Through Hole	25 kHz 53	62 kHz	Ferrite	Drum Core Wirewound	0.57 in	0.88 "	22.35 mm	14.48 mm	Unshielded	36 mA	-55 C	105 ░C	270 mH	Axial	490 Ohm	25 kHz

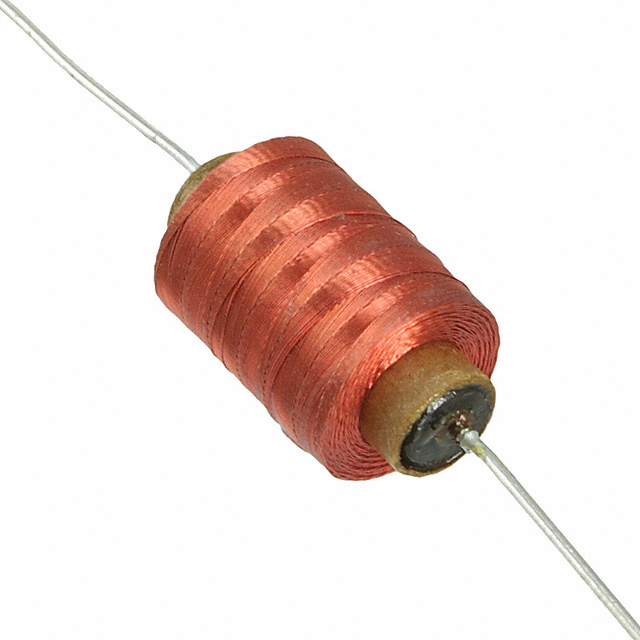

Bourns Inc. 70F251AF-RC	5 %	Through Hole	25 kHz 52	65 kHz	Ferrite	Drum Core Wirewound	0.55 "			13.97 mm	Unshielded	0.037 A	-55 C	105 ░C	250 mH	Axial	468 Ohm	25 kHz							22.35 mm	0.88 in
