KRE2ALA2 Series
Manufacturer: ZF Electronics
Beta
⌘K

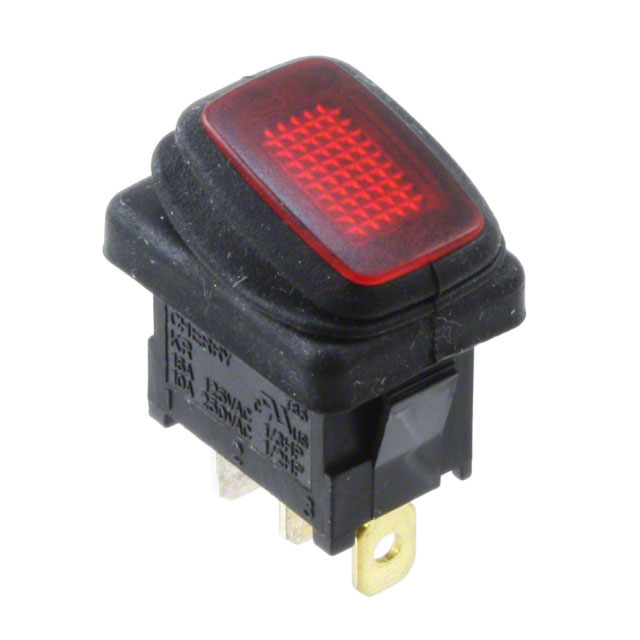

ROCKER SWITCHES SPST ON-OFF ILLUM 16A 125VAC 1/3HP
| Part | Mechanical Life | Electrical Life | Color - Actuator/Cap | Voltage Rating - DC | Actuator Marking | Illumination Type, Color | Actuator Type | Mounting Type | Circuit | Termination Style | Switch Function | Voltage Rating - AC | Current Rating (Amps) | Ingress Protection | Illumination Voltage (Nominal) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | Red | 28 V | No Marking | Neon Red | Flat - Illuminated | Panel Mount Snap-In | SPST | Quick Connect | On-Off | 125 V | 10 A 16 A | IP65 - Dust Tight Water Resistant | 110 VAC | 19.4 mm | 13 mm | 85 °C | -25 °C | ||
 ZF Electronics | 100000 Cycles | 6000 Cycles | Green | 28 V | No Marking | Flat - Illuminated | Panel Mount Snap-In | SPST | Quick Connect | On-Off | 125 V | 10 A 16 A | IP65 - Dust Tight Water Resistant | 110 VAC | 19.4 mm | 13 mm | 85 °C | -25 °C | Neon | Green |
