894-70 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 120POS 2.54MM

...

Part	Contact Finish Thickness - Post	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Contact Material	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Number of Rows [custom]	Voltage Rating	Connector Type	Contact Finish Thickness - Mating	Termination	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions [custom]	Contact Length - Mating [x]	Overall Contact Length

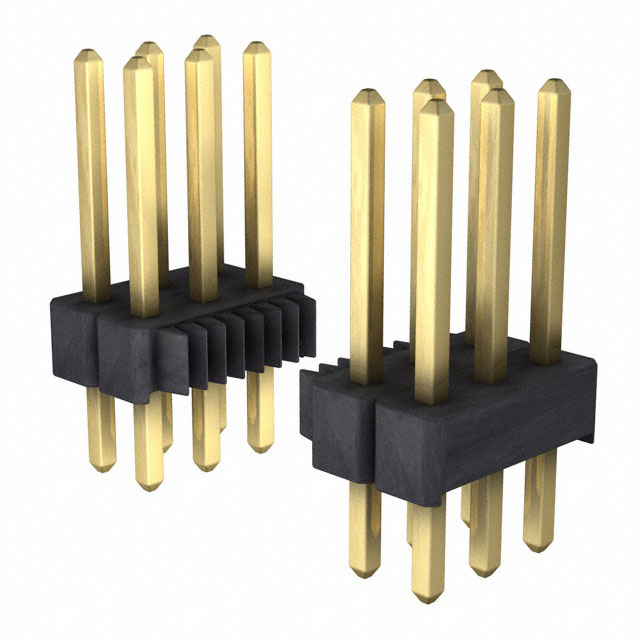

Preci-Dip 894-70-120-10-003101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square	0.553 in	14.04 mm	Gold	-55 C	125 °C	120	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull	0.335 in	8.51 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded
Preci-Dip 894-70-021-10-004101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square	0.805 in	20.44 mm	Gold	-55 C	125 °C	21	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull	0.587 in	14.91 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded

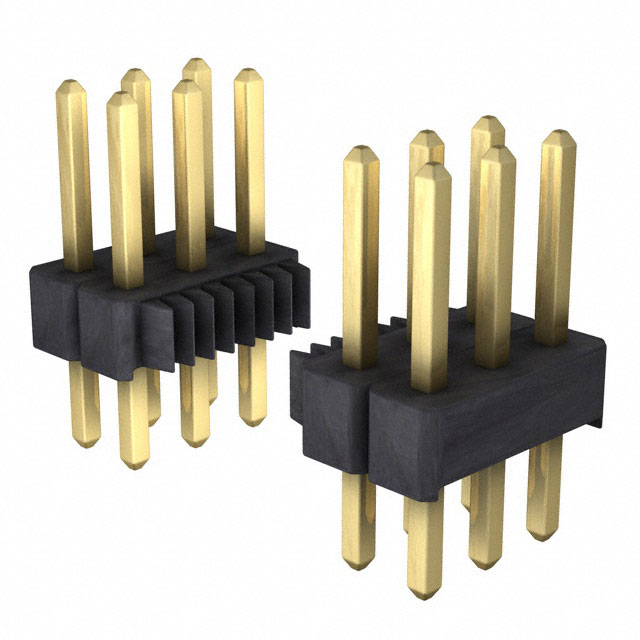

Preci-Dip 894-70-108-10-001101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square	0.458 "	11.64 mm	Gold	-55 C	125 °C	108	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold			Push-Pull	0.236 in	6 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded	0.122 in	3.1 mm

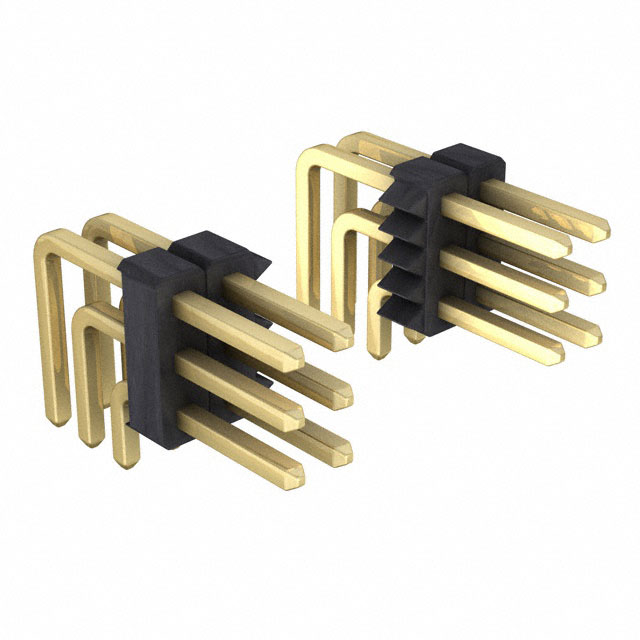

Preci-Dip 894-70-084-20-002101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Right Angle Through Hole	Black	Brass	Square			Gold	-55 C	125 °C		UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull		7 mm	Male Pin	0.3 in	7.62 mm	0.1 in	2.54 mm	Unshrouded			84	0.276 in
Preci-Dip 894-70-015-10-001101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square	0.458 "	11.64 mm	Gold	-55 C	125 °C	15	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold			Push-Pull	0.236 in	6 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded	0.122 in	3.1 mm

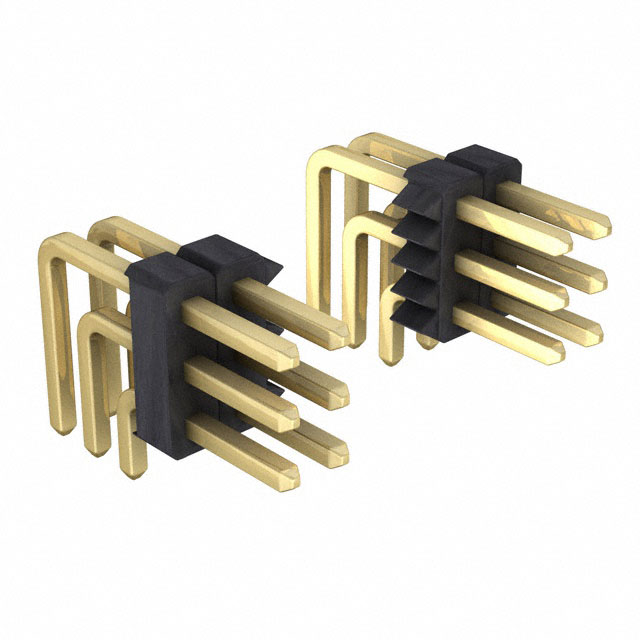

Preci-Dip 894-70-105-20-001101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Right Angle Through Hole	Black	Brass	Square			Gold	-55 C	125 °C	105	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull	0.236 in	6 mm	Male Pin	0.3 in	7.62 mm	0.1 in	2.54 mm	Unshrouded
Preci-Dip 894-70-036-10-001101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square	0.458 "	11.64 mm	Gold	-55 C	125 °C	36	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold			Push-Pull	0.236 in	6 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded	0.122 in	3.1 mm
Preci-Dip 894-70-114-10-003101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square	0.553 in	14.04 mm	Gold	-55 C	125 °C	114	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull	0.335 in	8.51 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded
Preci-Dip 894-70-069-20-002101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Right Angle Through Hole	Black	Brass	Square			Gold	-55 C	125 °C	69	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull		7 mm	Male Pin	0.3 in	7.62 mm	0.1 in	2.54 mm	Unshrouded				0.276 in

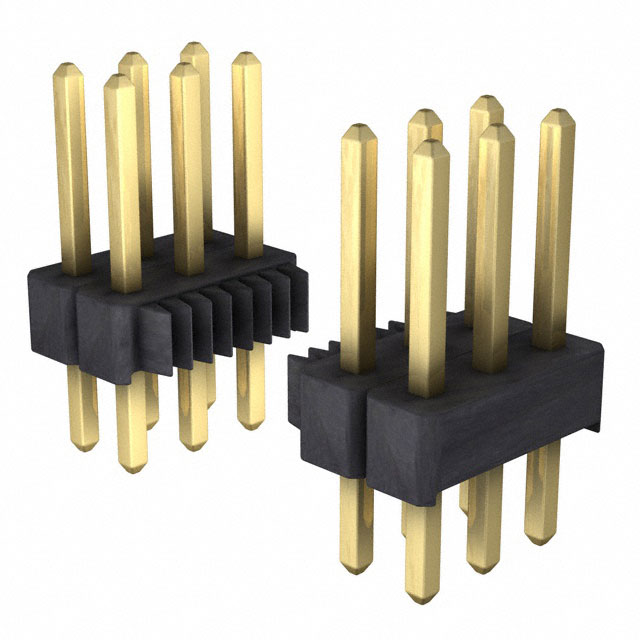

Preci-Dip 894-70-027-10-002101	Flash	Glass Filled Nylon Polyamide (PA)	3 A	All	0.1 "	2.54 mm	Through Hole	Black	Brass	Square		0.494 in	Gold	-55 C	125 °C	27	UL94 V-0	3	150 VDC	Header	Flash	Solder	Gold	0.118 in	3 mm	Push-Pull		7 mm	Male Pin	0.1 in	2.54 mm	0.1 in	2.54 mm	Unshrouded				0.276 in	12.54 mm
