91618 Series

Catalog

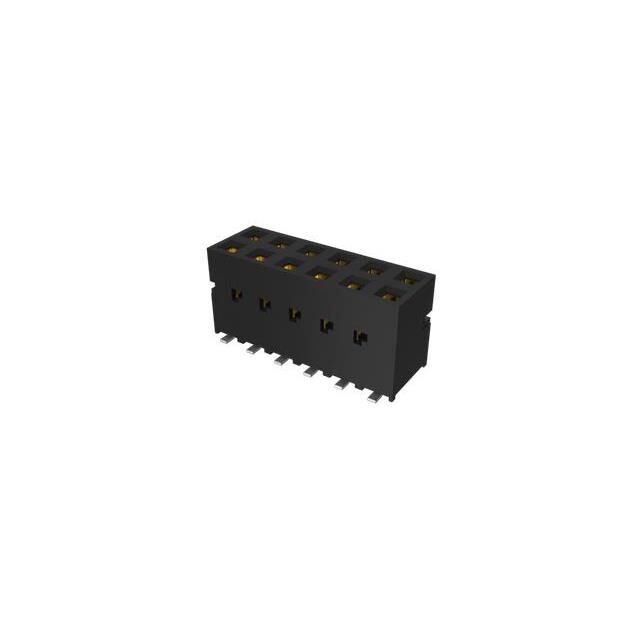

CONN RCPT 12POS 0.1 TIN SMD

Part	Mated Stacking Heights	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Applications	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Contact Type	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Rows	Material Flammability Rating	Fastening Type	Contact Material	Number of Positions	Contact Shape	Contact Finish - Post	Features	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 91618-406LF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	78.7 µin	2 µm	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	12	Square	Tin
Amphenol ICC (FCI) 91618-324ALF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	48	Square	Tin	Board Lock Pick and Place	Gold
Amphenol ICC (FCI) 91618-318LF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	36	Square	Tin		Gold
Amphenol ICC (FCI) 91618-313LF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	26	Square	Tin		Gold
Amphenol ICC (FCI) 91618-415ALF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	78.7 µin	2 µm	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	30	Square	Tin	Board Lock Pick and Place
Amphenol ICC (FCI) 91618-314LF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	28	Square	Tin		Gold
Amphenol ICC (FCI) 91618-408ALF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	78.7 µin	2 µm	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze		Square	Tin	Board Lock Pick and Place		16
Amphenol ICC (FCI) 91618-320A	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	40	Square	Tin	Board Lock Pick and Place	Gold
Amphenol ICC (FCI) 91618-308ALF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze		Square	Tin	Board Lock Pick and Place	Gold	16
Amphenol ICC (FCI) 91618-315BLF	10.81 mm	2.54 mm	0.1 in	Gray	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	Receptacle Bottom or Top Entry	Female Socket	6.99 mm	0.275 in	Surface Mount	2 çm	78.7 çin	Solder	2	UL94 V-0	Push-Pull	Phosphor Bronze	30	Square	Tin	Board Lock Pick and Place	Gold
