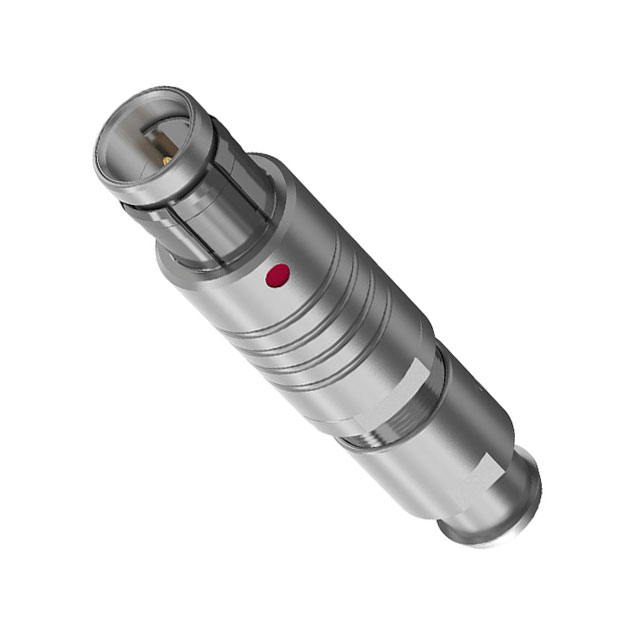

S21F1C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 12P GOLD SLDR CUP
| Part | Shell Size - Insert | Shell Material | Backshell Material, Plating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Material Flammability Rating | Shell Finish | Features | Applications | Contact Finish - Mating | Number of Positions | Shielding | Color | Ingress Protection | Orientation [custom] | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Current Rating (Amps) | Contact Material | Connector Type | Mounting Type | Primary Material | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Brass | Brass Chrome over Nickel | 0.177 " | 0.157 in | 4 mm | 4.5 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 12 | Shielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 4 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | |||
1 | Brass | Brass Chrome over Nickel | 0.098 in 2.5 mm | 0.079 in 2 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 8 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 7.5 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 300 VDC | ||||
1 | Brass | Brass Chrome over Nickel | 0.157 in | 0.138 " | 3.5 mm | 4 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 6 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 7.5 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 333 V | ||
1 | Brass | Brass Chrome over Nickel | 0.059 in | 0.039 in | 1 mm | 1.5 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 6 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 7.5 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 333 V | ||
1 | Brass | Brass Chrome over Nickel | 0.118 " | 0.098 in | 2.5 mm | 3 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 6 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 7.5 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 333 V | ||
1 | Brass | Brass Chrome over Nickel | 0.236 in | 0.217 in | 5.5 mm | 6 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 5 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 7.5 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 450 V | Crimp | |
1 | Brass | Brass Chrome over Nickel | 0.197 in | 0.177 in | 4.5 mm | 5 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | Shielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 12 Amps | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | ||||
1 | Brass | Brass Chrome over Nickel | 0.098 in 2.5 mm | 0.079 in 2 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 12 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 4 A | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 366 V | ||||
1 | Brass | Brass Chrome over Nickel | 0.098 in 2.5 mm | 0.079 in 2 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 12 Amps | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 500 V | |||||
1 | Brass | Brass Chrome over Nickel | 0.059 in | 0.039 in | 1 mm | 1.5 mm | UL94 V-0 | Chrome over Nickel | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | 2 | Unshielded | Silver | IP50 - Dust Protected | 1 | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | 12 Amps | Brass | Plug Male Pins | Free Hanging (In-Line) | Metal | 550 VDC |
