PBC34 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 68POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Length - Post	Contact Length - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Style	Material Flammability Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Number of Rows [custom]	Insulation Material	Number of Positions	Insulation Color	Shrouding	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Mounting Type	Contact Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Positions [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]

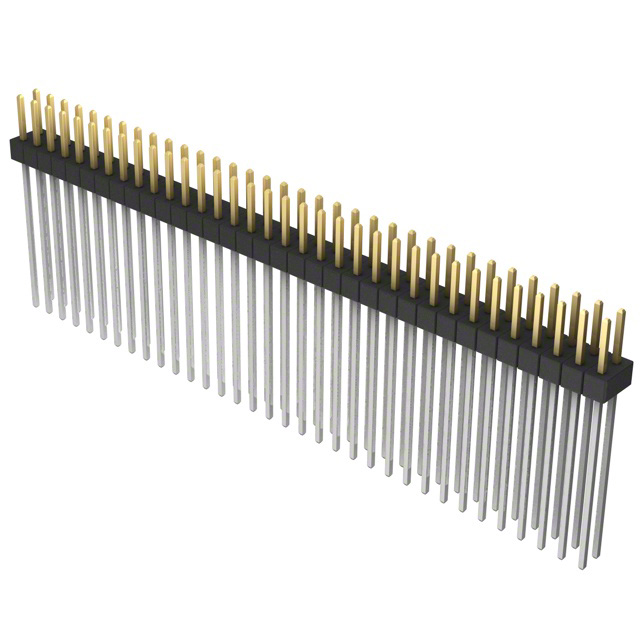

Sullins Connector Solutions PBC34DAHN	2.54 µm	100 µin	Phosphor Bronze	0.82 in	20.83 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder	2	Polybutylene Terephthalate (PBT)	68 positions	Black	Unshrouded	3 A	0.1 in	2.54 mm	0.23 in	5.84 mm	Gold	Through Hole	Male Pin	Tin	0.1 in	2.54 mm	29.21 mm	1.15 in	Header Breakaway	All	0.25 µm	10 µin

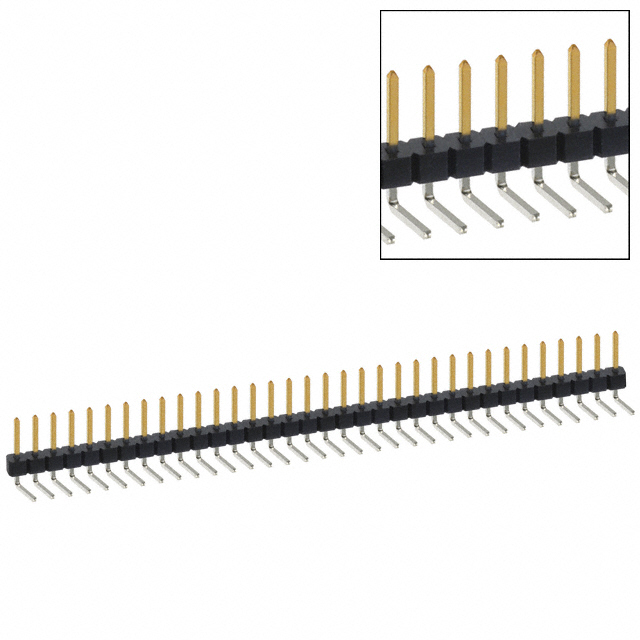

Sullins Connector Solutions PBC34SBBN	2.54 µm	100 µin	Phosphor Bronze			Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder		Polybutylene Terephthalate (PBT)		Black	Unshrouded	3 A	0.14 in	3.56 mm	0.23 in	5.84 mm	Gold	Right Angle Through Hole	Male Pin	Tin					Header Breakaway	All	0.25 µm	10 µin	1	5.08 mm	0.2 "	34

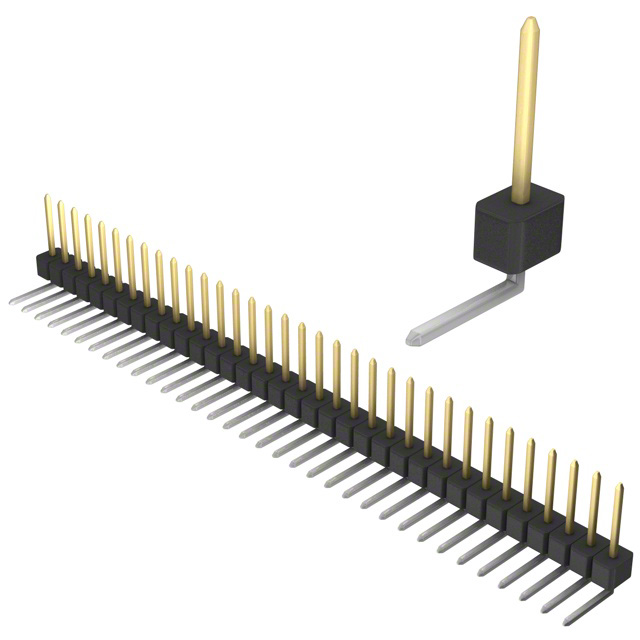

Sullins Connector Solutions PBC34SGBN	2.54 µm	100 µin	Phosphor Bronze			Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder		Polybutylene Terephthalate (PBT)		Black	Unshrouded	3 A	0.14 in	3.56 mm	0.318 in	8.08 mm	Gold	Right Angle Through Hole	Male Pin	Tin					Header Breakaway	All	0.25 µm	10 µin	1	5.08 mm	0.2 "	34
Sullins Connector Solutions PBC34DFEN	2.54 µm	100 µin	Phosphor Bronze	0.52 in	13.21 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder	2	Polybutylene Terephthalate (PBT)	68 positions	Black	Unshrouded	3 A	0.1 in	2.54 mm	0.318 in	8.08 mm	Gold	Through Hole	Male Pin	Tin	0.1 in	2.54 mm	23.83 mm	0.938 in	Header Breakaway	All	0.25 µm	10 µin

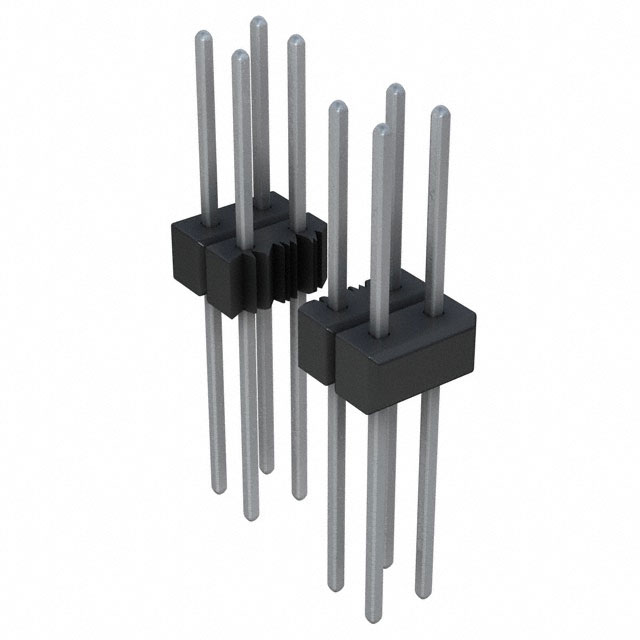

Sullins Connector Solutions PBC34DFDN	2.54 µm	100 µin	Phosphor Bronze	0.42 in	10.67 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder	2	Polybutylene Terephthalate (PBT)	68 positions	Black	Unshrouded	3 A	0.1 in	2.54 mm	0.318 in	8.08 mm	Gold	Through Hole	Male Pin	Tin	0.1 in	2.54 mm	21.29 mm	0.838 in	Header Breakaway	All	0.25 µm	10 µin

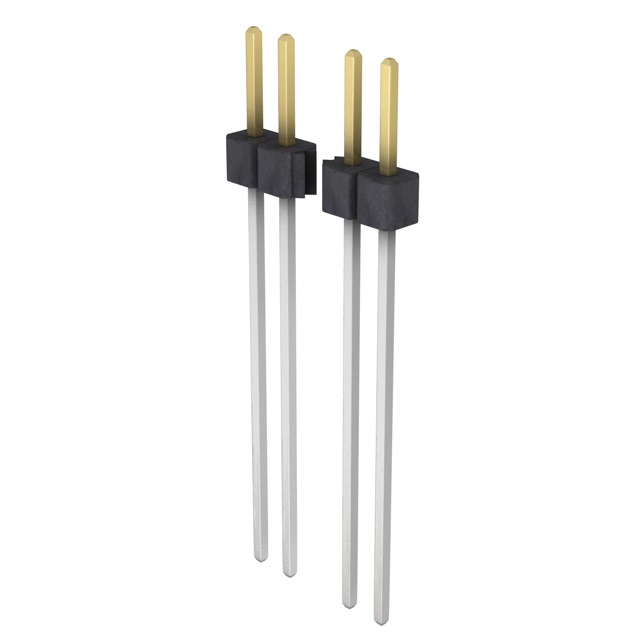

Sullins Connector Solutions PBC34SAGN	2.54 µm	100 µin	Phosphor Bronze	0.72 "	18.29 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder		Polybutylene Terephthalate (PBT)		Black	Unshrouded	3 A	0.1 in	2.54 mm	0.23 in	5.84 mm	Gold	Through Hole	Male Pin	Tin			26.67 mm	1.05 in	Header Breakaway	All	0.25 µm	10 µin	1			34

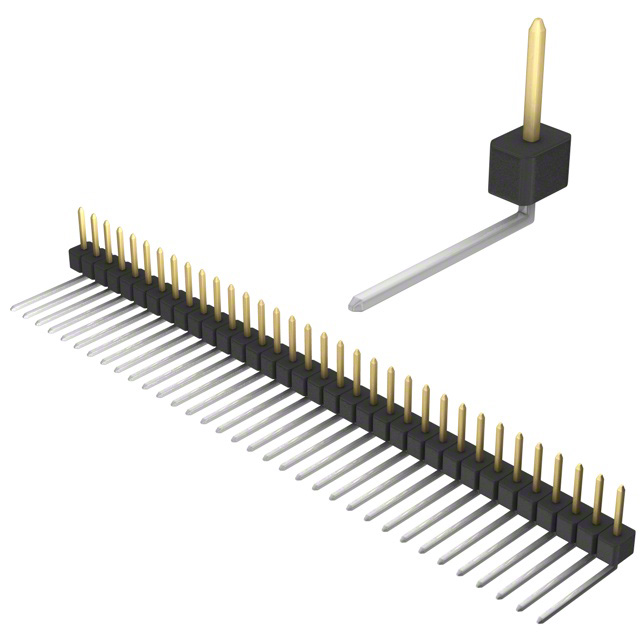

Sullins Connector Solutions PBC34SBDN	2.54 µm	100 µin	Phosphor Bronze	0.4 in	10.16 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder		Polybutylene Terephthalate (PBT)		Black	Unshrouded	3 A	0.14 in	3.56 mm	0.23 in	5.84 mm	Gold	Right Angle Through Hole	Male Pin	Tin					Header Breakaway	All	0.25 µm	10 µin	1			34

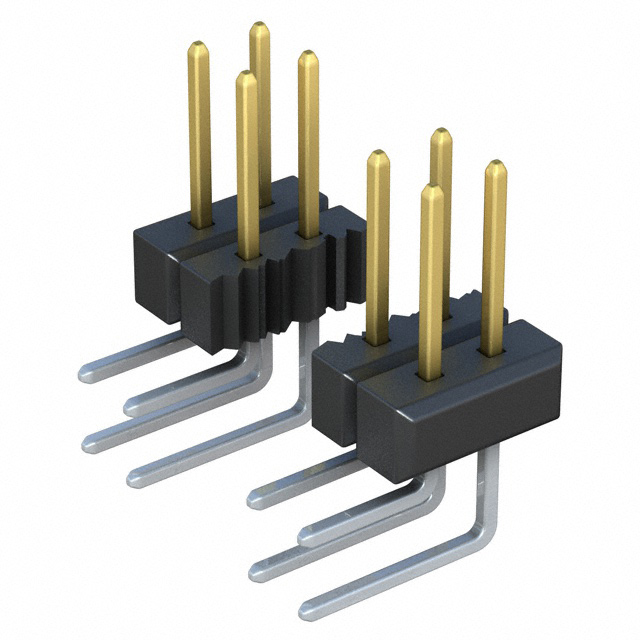

Sullins Connector Solutions PBC34DBAN	2.54 µm	100 µin	Phosphor Bronze	0.1 in	2.54 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder	2	Polybutylene Terephthalate (PBT)	68 positions	Black	Unshrouded	3 A			0.23 in	5.84 mm	Gold	Right Angle Through Hole	Male Pin	Tin	0.1 in	2.54 mm			Header Breakaway	All	0.25 µm	10 µin					6.1 mm	0.24 in
Sullins Connector Solutions PBC34SAAN	2.54 µm	100 µin	Phosphor Bronze	0.12 in	3.05 mm	Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder		Polybutylene Terephthalate (PBT)		Black	Unshrouded	3 A	0.1 in	2.54 mm	0.23 in	5.84 mm	Gold	Through Hole	Male Pin	Tin					Header Breakaway	All	0.25 µm	10 µin	1			34			11.43 mm	0.45 in
Sullins Connector Solutions PBC34SAFN	2.54 µm	100 µin	Phosphor Bronze			Square	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	Push-Pull	0.1 "	2.54 mm	Solder		Polybutylene Terephthalate (PBT)		Black	Unshrouded	3 A	0.1 in	2.54 mm	0.23 in	5.84 mm	Gold	Through Hole	Male Pin	Tin			24.13 mm	0.95 in	Header Breakaway	All	0.25 µm	10 µin	1	15.75 mm	0.62 "	34
