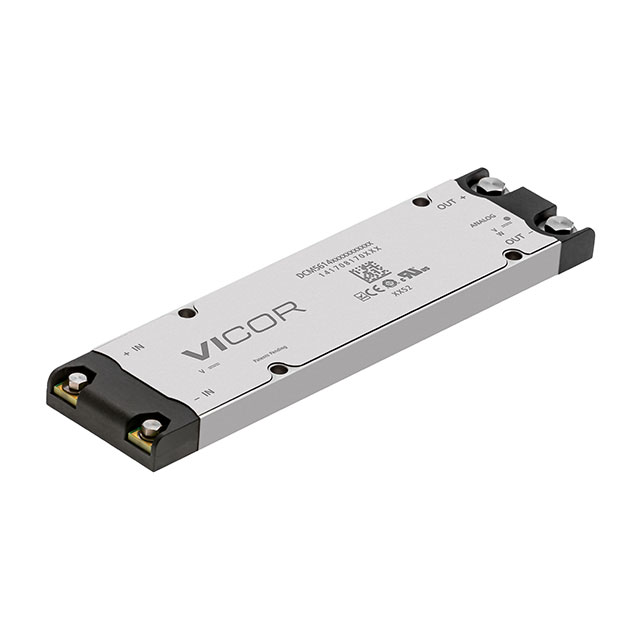

DCM5614 Series

Catalog

DC/DC CONVERTER 28V 1.3KW

Part	Power (Watts)	Current - Output (Max) [Max]	Type	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Approval Agency	Efficiency	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Package / Case	Size / Dimension	Features
Vicor Corporation DCM5614VD0H36K3T02	1.3 kW	46.43 A	Enclosed	180 V	Chassis Mount	2.121 kV	400 VDC	-40 °C	125 °C	28 V	CE	93.7 %	1	0.37 in	9.4 mm	35.6 mm	5.57 in	141.5 mm	1.4 in	ITE (Commercial)
Vicor Corporation DCM5614BD0H36K3T09	1.3 kW	46.43 A	Isolated Module	180 V	Through Hole	2.121 kV	400 VDC	-40 °C	125 °C	28 V	CE	93.7 %	1	0.37 in			5.65 "		1.4 in	ITE (Commercial)	Module	9.4 mm 35.5 mm 143.6 mm	Adjustable Output
Vicor Corporation DCM5614BD0H36K3T06	1.3 kW	46.43 A	Isolated Module	180 V	Through Hole	2.121 kV	400 VDC	-40 °C	125 °C	28 V	CE	93.7 %	1	0.37 in			5.65 "		1.4 in	ITE (Commercial)	Module	9.4 mm 35.5 mm 143.6 mm	Adjustable Output PMBus™
Vicor Corporation DCM5614BD0H36K3T05	1.3 kW	46.43 A	Isolated Module	180 V	Through Hole	2.121 kV	400 VDC	-40 °C	125 °C	28 V	CE	93.7 %	1	0.37 in			5.65 "		1.4 in	ITE (Commercial)	Module	9.4 mm 35.5 mm 143.6 mm	Adjustable Output
Vicor Corporation DCM5614BD0H36K3T10	1.3 kW	46.43 A	Isolated Module	180 V	Through Hole	2.121 kV	400 VDC	-40 °C	125 °C	28 V	CE	93.7 %	1	0.37 in			5.65 "		1.4 in	ITE (Commercial)	Module	9.4 mm 35.5 mm 143.6 mm	Adjustable Output PMBus™
Vicor Corporation DCM5614VD0H36K3T01	1.3 kW	46.43 A	Enclosed	180 V	Chassis Mount	2.121 kV	400 VDC	-40 °C	125 °C	28 V	CE	93.7 %	1	0.37 in	9.4 mm	35.6 mm	5.57 in	141.5 mm	1.4 in	ITE (Commercial)
