045732 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 6POS 4.2MM

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Applications	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Finish - Post	Connector Type	Number of Rows	Termination	Contact Shape	Fastening Type	Material Flammability Rating	Features	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Insulation Material	Style	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating

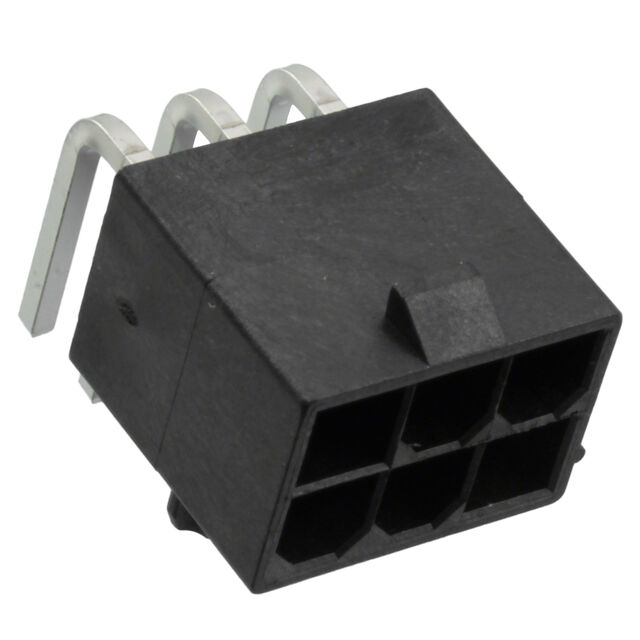

Molex 0457320001	Through Hole Right Angle	2.54 çm	100 çin	All	General Purpose Industrial Telecommunications	3.6 mm	0.142 in	Male Pin	6	2.54 µm	100 µin	4.2 mm	0.165 in	Shrouded - 4 Wall	Tin	Header	2	Solder	Square	Locking Ramp	UL94 V-0	Board Guide	4.2 mm	0.165 in	Black	Brass	Liquid Crystal Polymer (LCP)	Board to Cable/Wire
Molex 0457320003	Through Hole Right Angle	2.54 çm	100 çin	All				Male Pin	6	2.54 µm	100 µin	4.2 mm	0.165 in	Shrouded - 4 Wall	Tin	Header	2	Solder	Square	Locking Ramp	UL94 V-0	Board Guide	4.2 mm	0.165 in	Black	Brass	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	0.38 in	9.65 mm	Varies by Wire Gauge	3.56 mm	0.14 in	600 VAC
