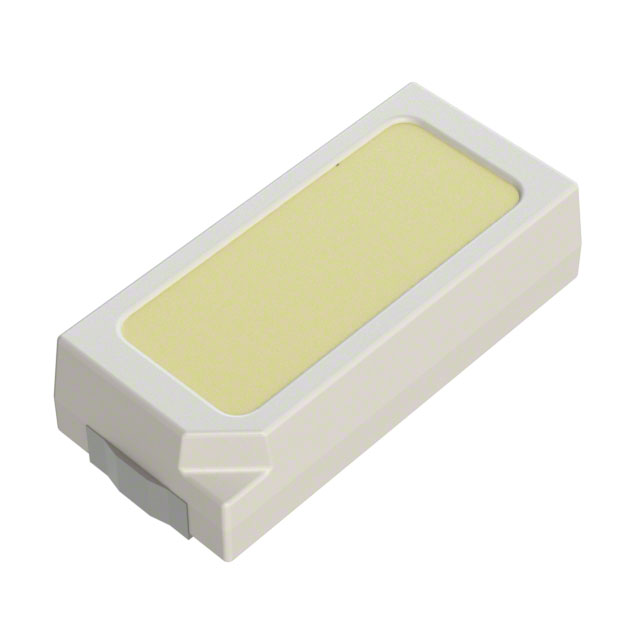

ASMD-CWG7 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED WHITE/NEUTRAL 3014 SMD
| Part | Package / Case | Mounting Type | Supplier Device Package | Height (Max) [Max] [z] | Viewing Angle | Voltage - Forward (Vf) (Typ) | Lens Style | Color | Lens Size [x] | Lens Size [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Test | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 1206 (3014 Metric) 1206 (3216 Metric) | Surface Mount | 3014 | 0.9 mm | 120 ° | 2.8 V | Rectangle with Flat Top | Neutral White | 2.5 mm | 1.15 mm | 3 mm | 1.4 mm | 20 mA | 2800 mcd |
Broadcom Limited | 1206 (3014 Metric) 1206 (3216 Metric) | Surface Mount | 3014 | 0.9 mm | 120 ° | 2.8 V | Rectangle with Flat Top | Cool White | 2.5 mm | 1.15 mm | 3 mm | 1.4 mm | 20 mA | 2800 mcd |
Broadcom Limited | 1206 (3014 Metric) 1206 (3216 Metric) | Surface Mount | 3014 | 0.9 mm | 120 ° | 2.8 V | Rectangle with Flat Top | Warm White | 2.5 mm | 1.15 mm | 3 mm | 1.4 mm | 20 mA | 2700 mcd |
