IL-Z-4 Series

Catalog

CONN HEADER R/A 4POS 1.25MM

Part	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Number of Rows	Mounting Type	Contact Material	Insulation Material	Termination	Style	Voltage Rating	Contact Type	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Shape	Fastening Type	Shrouding	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Features	Note	Pitch	Pitch	Contact Termination
JAE Electronics IL-Z-4P-S125L3-E	Header	0.128 in	3.25 mm	UL94 V-0	70 °C	-40 C	1 A	Tin	4	1	Right Angle Through Hole	Brass	Nylon 6/6 Polyamide (PA66)	Solder	Board to Cable/Wire	200 V	Male Pin	Brown	All	1.7 mm	0.067 in	0.108 in	2.75 mm	Square	Push-Pull	Shrouded - 4 Wall	0.049 in	1.25 mm
JAE Electronics IL-Z-4P-S125T3-E	Header	0.167 "	4.25 mm	UL94 V-0	70 °C	-40 C	1 A	Tin	4	1	Through Hole	Brass	Nylon 6/6 Polyamide (PA66)	Solder	Board to Cable/Wire	200 V	Male Pin	Brown	All	1.7 mm	0.067 in	0.108 in	2.75 mm	Square	Push-Pull	Shrouded - 4 Wall	0.049 in	1.25 mm	5.2 mm	0.209 in	5.3 mm
JAE Electronics IL-Z-4PL-SMTYE	Header			UL94 V-0	70 °C	-40 C	1 A	Tin	4	1	Right Angle Surface Mount	Brass	Polyphenylene Sulfide (PPS)	Solder	Board to Cable/Wire	200 V	Male Pin	Beige	All			0.108 in	2.75 mm	Square	Push-Pull	Shrouded - 4 Wall	0.049 in	1.25 mm				3.46 mm	0.136 in	Solder Retention

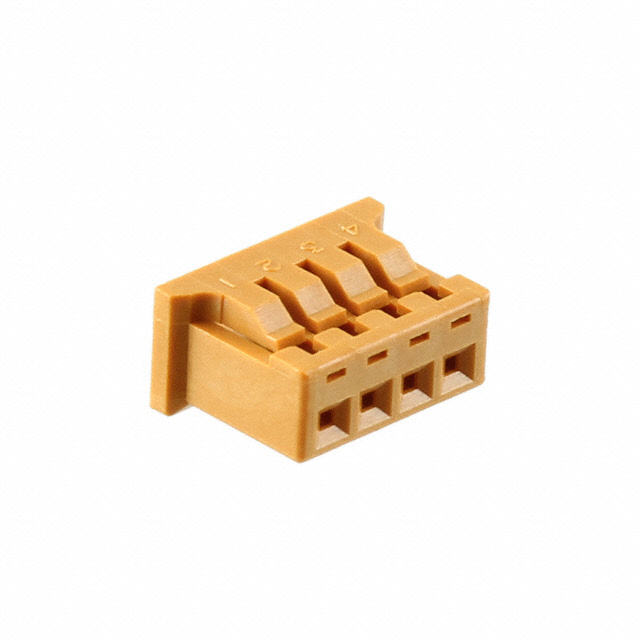

JAE Electronics IL-Z-4S-S125C3	Receptacle				70 °C	-40 C			4	1	Free Hanging (In-Line)		Glass Filled Nylon 6/6 Polyamide (PA66)				Female Socket								Friction Lock										Contacts Not Included	0.049 in	1.25 mm	Crimp
JAE Electronics IL-Z-4PL-SMTYE-R1500	Header			UL94 V-0	70 °C	-40 C	1 A	Tin	4	1	Right Angle Surface Mount	Brass	Polyphenylene Sulfide (PPS)	Solder	Board to Cable/Wire	200 V	Male Pin	Beige	All			0.108 in	2.75 mm	Square	Friction Lock	Shrouded - 4 Wall	0.049 in	1.25 mm				3.46 mm	0.136 in	Solder Retention
