1134-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
PIN RECEPTACLE SOLDERCUP
| Part | Socket Depth | Socket Depth | Contact Finish | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter | Accepts Square Pin Size | Accepts Square Pin Size | Length - Overall | Length - Overall | Termination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

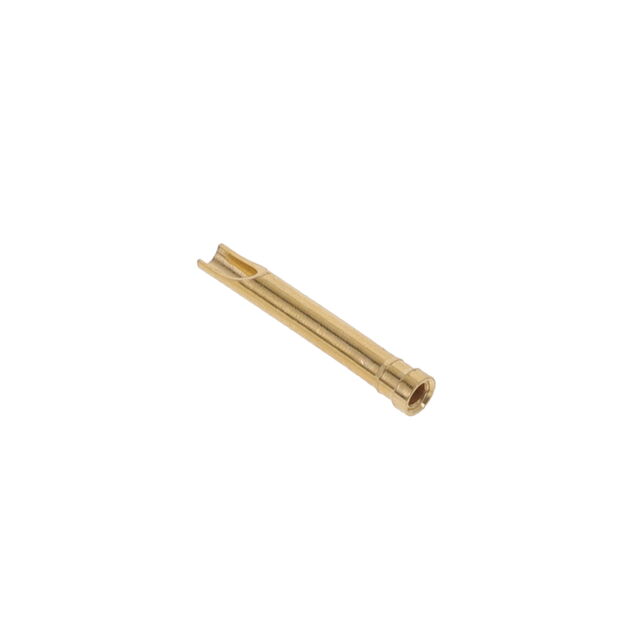

 Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Gold | 0.64 mm | 0.037 in | 0.94 mm | 0.025 in | 3.18 mm | 0.125 in | Beryllium Nickel | 0.25 Ám | 10 Áin | Solder Cup | 1.77 mm | 0.07 in | 0.061 " | 1.55 mm | 0.025 in | 0.64 mm | 11.43 mm | 0.45 in | Press-Fit | -55 C | 125 °C |

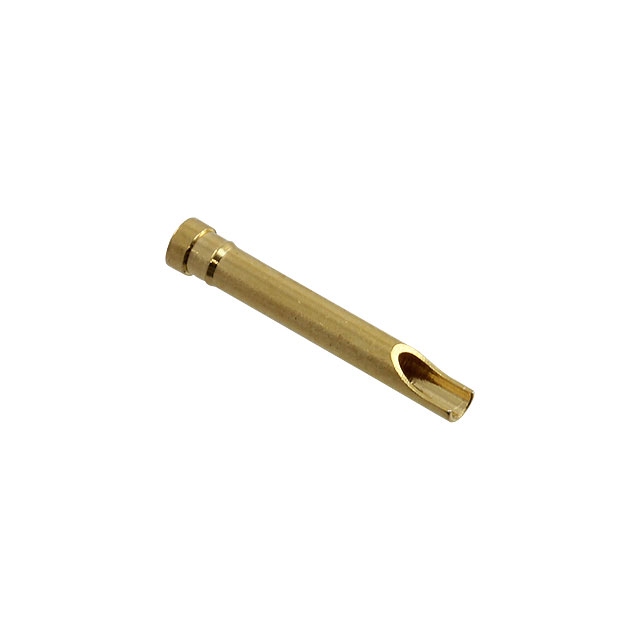

 Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Gold | 0.64 mm | 0.037 in | 0.94 mm | 0.025 in | 1.3 mm | 0.051 in | Beryllium Copper | 0.25 Ám | 10 Áin | Solder Cup | 1.77 mm | 0.07 in | 0.061 " | 1.55 mm | 0.025 in | 0.64 mm | 11.43 mm | 0.45 in | Press-Fit | -55 C | 125 °C |
