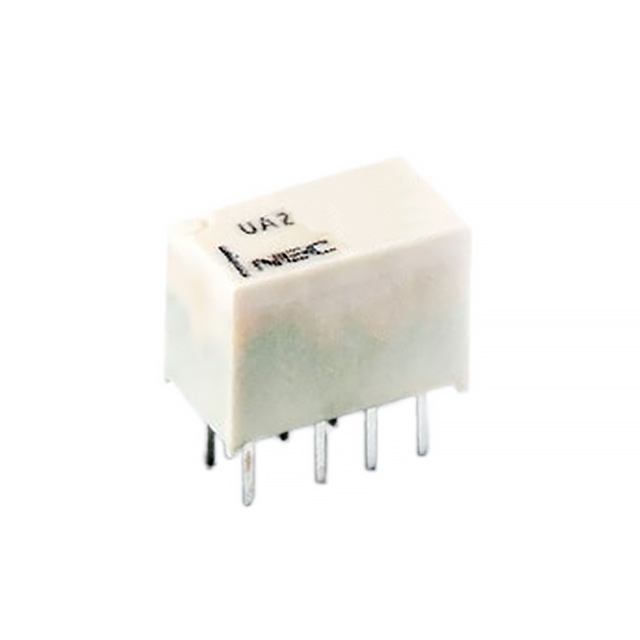

UA2-3S Series
Manufacturer: KEMET
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 3V
| Part | Coil Resistance | Mounting Type | Load - Max Switching | Must Operate Voltage | Contact Rating (Current) | Release Time | Approval Agency | Contact Form | Contact Material | Termination Style | Coil Type | Switching Voltage [Max] | Coil Current | Relay Type | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 90 Ohms | Through Hole | 220 W 250 VA | 2.25 VDC | 1 A | 1 ms | CSA TUV UL | DPDT (2 Form C) | Gold Alloy Silver Alloy | PC Pin | Latching Single Coil | 220 VDC 250 VAC | 33.3 mA | General Purpose | 2 ms | 85 °C | -40 C |
