V15W-D Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Mechanical Life	Termination Style	Mounting Type	Pretravel	Pretravel	Circuit	Current Rating (Amps)	Actuator Type	Operating Force	Switch Function	Operating Position	Operating Position	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Differential Travel	Differential Travel	Electrical Life	Release Force	Overtravel [custom]	Overtravel [custom]	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions V15W-DZ200A06-AW1	1000000 Cycles	Quick Connect	Chassis Mount	0.125 in	3.2 mm	SPDT	100 mA	Lever Roller	120 gf	On-Mom	20.6 mm	0.812 in	125 V	85 °C	-40 C	48 V	1.2 mm	0.047 in	10000 Cycles	20 gf	0.051 "	1.3 mm
Honeywell Sensing and Productivity Solutions V15W-DZ200A06-W2	1000000 Cycles	Quick Connect	Chassis Mount	0.125 in	3.2 mm	SPDT	5 A	Lever Roller	120 gf	On-Mom	20.6 mm	0.812 in	125 V	85 °C	-40 C	30 V	1.2 mm	0.047 in	10000 Cycles	20 gf	0.051 "	1.3 mm
Honeywell Sensing and Productivity Solutions V15W-DZ200A05-AW1	1000000 Cycles	Quick Connect	Chassis Mount	0.063 in	1.6 mm	SPDT	100 mA	Lever Roller	240 gf	On-Mom	20.6 mm	0.812 in	125 V	85 °C	-40 C	48 V	0.4 mm	0.016 in	10000 Cycles		0.03 "	0.76 mm
Honeywell Sensing and Productivity Solutions V15W-DZ200A02-AW1	1000000 Cycles	Quick Connect	Chassis Mount	0.125 in	3.2 mm	SPDT	100 mA	Lever Straight	120 gf	On-Mom	15.3 mm	0.602 in	125 V	85 °C	-40 C	48 V	1.2 mm	0.047 in	10000 Cycles	10 gf	0.051 "	1.3 mm

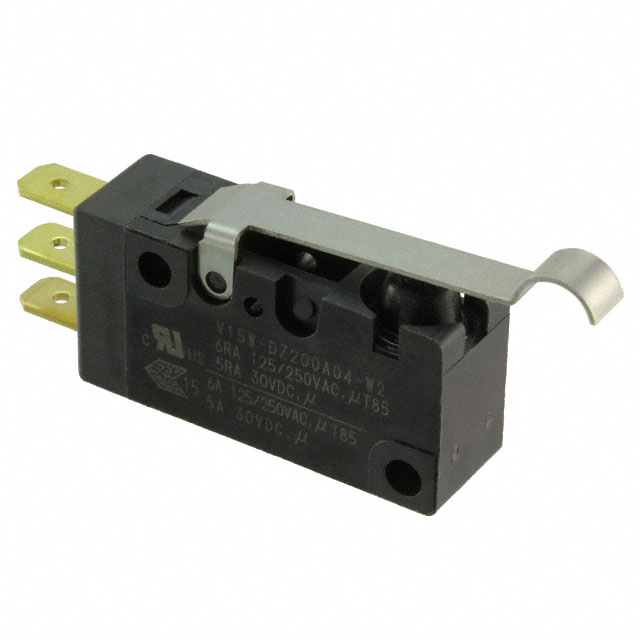

Honeywell Sensing and Productivity Solutions V15W-DZ200A04-W2	1000000 Cycles	Quick Connect	Chassis Mount	0.125 in	3.2 mm	SPDT	5 A	Lever Simulated Roller	120 gf	On-Mom			125 V	85 °C	-40 C	30 V	1.2 mm	0.047 in	10000 Cycles	20 gf	0.051 "	1.3 mm	18.5 mm	0.73 in
