ECK-ATS Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP CER 1000PF 440VAC Y5U RADIAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Applications	Lead Style	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ratings	Voltage - Rated	Temperature Coefficient	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension	Height - Seated (Max) [Max]

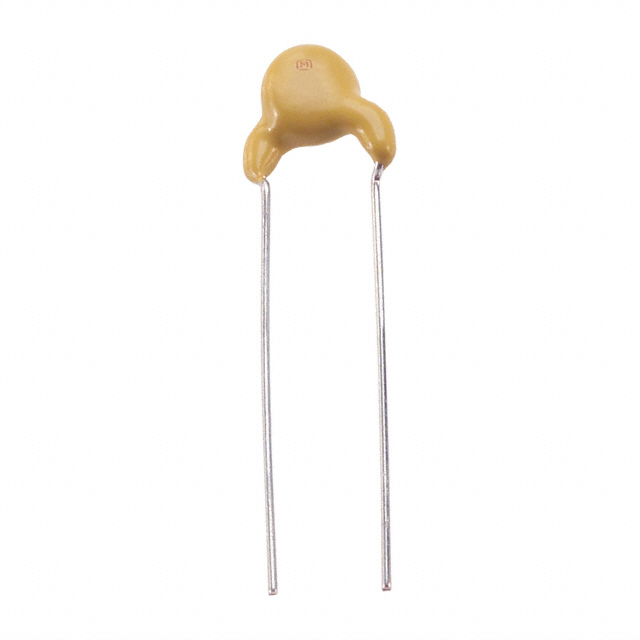

Panasonic Electronic Components ECK-ATS102ME	-25 °C	125 °C	Through Hole	0.472 in	12 mm	Safety	Formed Leads	0.001 µF	Disc Radial	0.315 in	8 mm	20 %	X1 Y2	440 VAC	Y5U (E)	0.295 in	7.5 mm
Panasonic Electronic Components ECK-ATS681MB	-25 °C	125 °C	Through Hole			Safety	Formed Leads	680 pF	Disc Radial	0.354 in	9 mm	20 %	X1 Y2	440 VAC	Y5P (B)	0.295 in	7.5 mm	0.512 "	13 mm
Panasonic Electronic Components ECK-ATS331MB	-25 °C	125 °C	Through Hole	0.472 in	12 mm	Safety	Formed Leads	330 pF	Disc Radial	0.315 in	8 mm	20 %	X1 Y2	440 VAC	Y5P (B)	0.295 in	7.5 mm

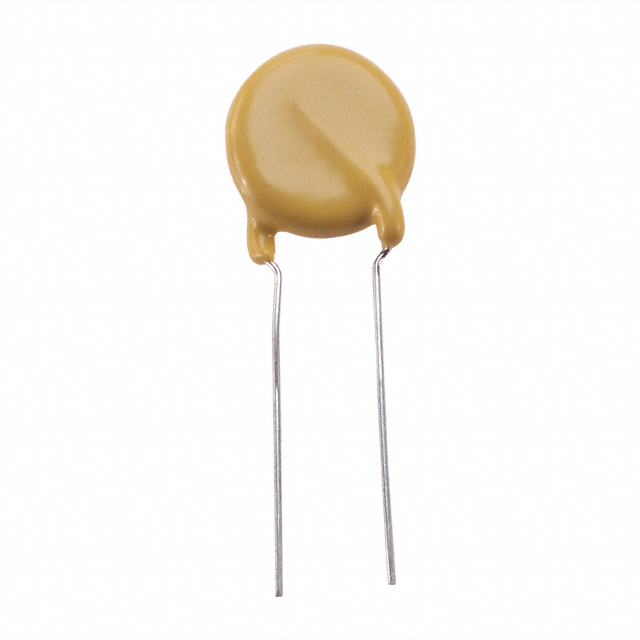

Panasonic Electronic Components ECK-ATS472ME6	-25 °C	125 °C	Through Hole			Safety	Formed Leads	0.0047 µF	Disc Radial	0.591 in		20 %	X1 Y2	440 VAC	Y5U (E)	0.295 in	7.5 mm	0.709 in	18 mm	15 mm
Panasonic Electronic Components ECK-ATS221MB	-25 °C	125 °C	Through Hole	0.472 in	12 mm	Safety	Formed Leads	220 pF	Disc Radial	0.315 in	8 mm	20 %	X1 Y2	440 VAC	Y5P (B)	0.295 in	7.5 mm
Panasonic Electronic Components ECK-ATS103MF6	-25 °C	125 °C	Through Hole			Safety	Formed Leads	10000 pF	Disc Radial	0.669 in	17 mm	20 %	X1 Y2	440 VAC	Y5V (F)	0.295 in	7.5 mm	0.827 "			21 mm
Panasonic Electronic Components ECK-ATS471MB	-25 °C	125 °C	Through Hole	0.472 in	12 mm	Safety	Formed Leads	470 pF	Disc Radial	0.315 in	8 mm	20 %	X1 Y2	440 VAC	Y5P (B)	0.295 in	7.5 mm
Panasonic Electronic Components ECK-ATS102MB	-25 °C	125 °C	Through Hole	0.571 "		Safety	Formed Leads	0.001 µF	Disc Radial	0.413 in	10.5 mm	20 %	X1 Y2	440 VAC	Y5P (B)	0.295 in	7.5 mm				14.5 mm
Panasonic Electronic Components ECK-ATS332ME	-25 °C	125 °C	Through Hole			Safety	Formed Leads	0.0033 µF	Disc Radial	0.492 in	12.5 mm	20 %	X1 Y2	440 VAC	Y5U (E)	0.295 in	7.5 mm	0.65 in	16.5 mm

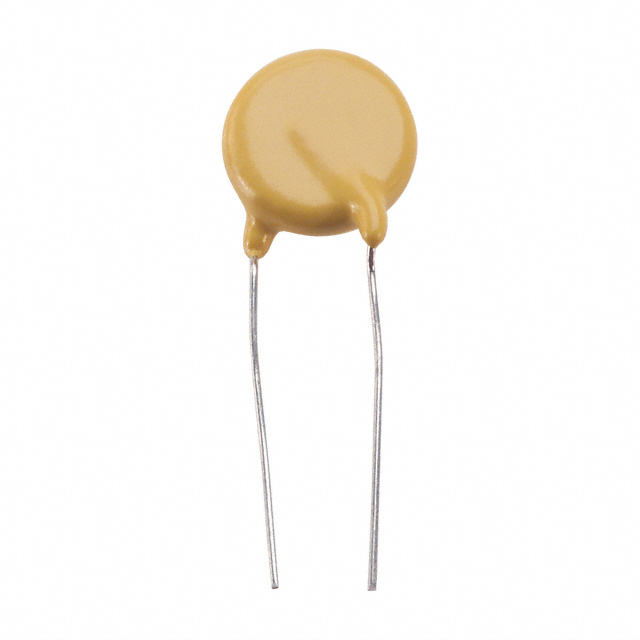

Panasonic Electronic Components ECK-ATS103MF	-25 °C	125 °C	Through Hole			Safety	Formed Leads	10000 pF	Disc Radial	0.669 in	17 mm	20 %	X1 Y2	440 VAC	Y5V (F)	0.394 in	10 mm	0.827 "			21 mm
