11123001 Series

Manufacturer: HARTING

Catalog

HAN-YELLOCK 30 SURFACE MOUNT HOUSING 1XM20 (W/O BULKHEAD HOUSING)

Part	Lock Location	Style	Housing Material	Ingress Protection	Thread Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Housing Color	Connector Type	Features

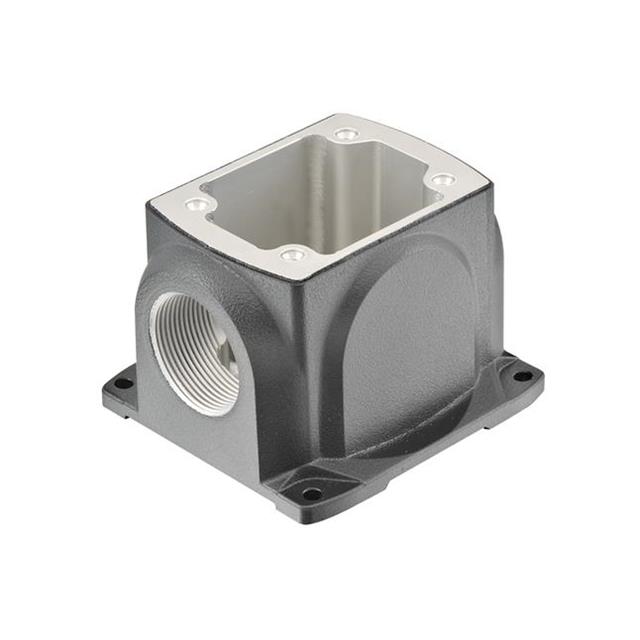

HARTING 11123001200	Push Button Snap Lock on Hood Carrier	Side Entry	Aluminum Die Cast	IP65 IP67	M20	3.228 in	2.165 "	55 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Epoxy Powder Paint	Black	Base - Box Mount
HARTING 11123001212	Screw Locks on Hood	Side Entry	Aluminum Die Cast	IP65 IP67	M32	3.228 in	2.665 "	67.7 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Powder Coated	Gray	Base - Box Mount
HARTING 11123001501	Push Button Snap Lock on Hood Carrier	Side Entry	Aluminum Die Cast	IP65 IP67	M25	2.205 in	2.496 in	63.4 mm	2.862 "	56 mm	72.7 mm	125 °C	-40 C	Epoxy Powder Paint	Black	Hood - Shell
HARTING 11123001206	Push Button Snap Lock on Hood Carrier	Side Entry	Aluminum Die Cast	IP65 IP67	M32	3.228 in	2.165 "	55 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Epoxy Powder Paint	Black	Base - Box Mount	Feed Through
HARTING 11123001204	Push Button Snap Lock on Hood Carrier	Side Entry	Aluminum Die Cast	IP65 IP67	M20	3.228 in	2.165 "	55 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Epoxy Powder Paint	Black	Base - Box Mount	Feed Through
HARTING 11123001216	Screw Locks on Hood	Side Entry Dual	Aluminum Die Cast	IP65 IP67	M32	3.228 in	2.665 "	67.7 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Powder Coated	Gray	Base - Box Mount	Feed Through
HARTING 11123001214	Screw Locks on Hood	Side Entry Dual	Aluminum Die Cast	IP65 IP67	M20	3.228 in	2.665 "	67.7 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Powder Coated	Gray	Base - Box Mount	Feed Through
HARTING 11123001401	Push Button Snap Lock on Hood Carrier	Top Entry	Aluminum Die Cast	IP65 IP67	M25	2.205 in	2.37 "	60.2 mm	2.862 "	56 mm	72.7 mm	125 °C	-40 C	Epoxy Powder Paint	Black	Hood - Shell

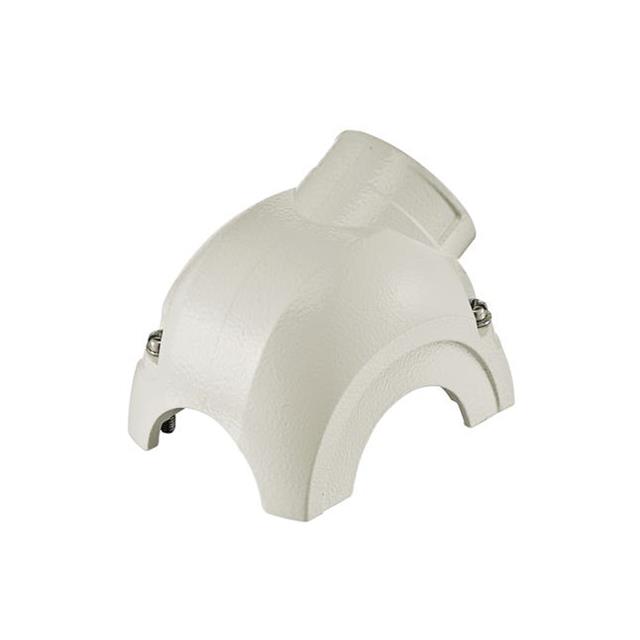

HARTING 11123001510	Push Button Snap Lock on Hood Carrier	Side Entry	Aluminum Die Cast	IP65 IP67	M20							125 °C	-40 C	Epoxy Powder Paint	White	Hood - Shell
HARTING 11123001215	Screw Locks on Hood	Side Entry Dual	Aluminum Die Cast	IP65 IP67	M25	3.228 in	2.665 "	67.7 mm	3.346 in	82 mm	85 mm	125 °C	-40 C	Powder Coated	Gray	Base - Box Mount	Feed Through
