HEP.2F Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 12POS GOLD SLDR

Part	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Material Flammability Rating	Shielding	Contact Finish - Mating	Features	Applications	Shell Finish	Contact Material	Mounting Feature	Fastening Type	Connector Type	Orientation	Insert Material	Shell Size - Insert	Primary Material	Ingress Protection	Termination	Current Rating (Amps)

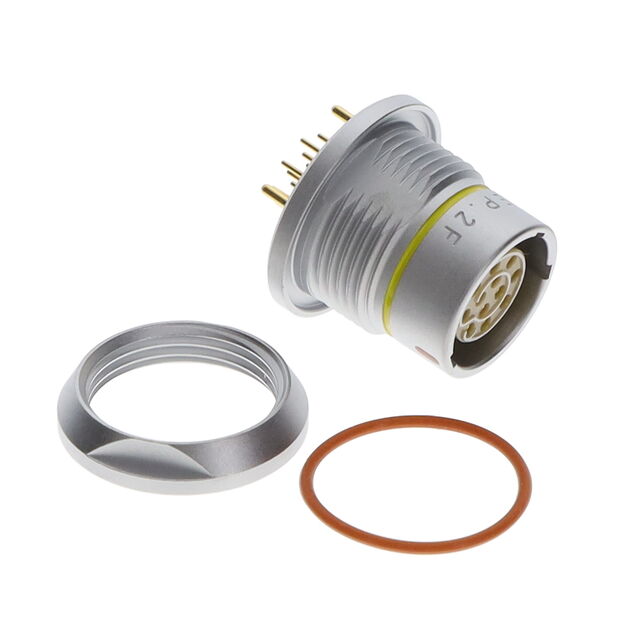

LEMO HEP.2F.312.CLNP	Brass	150 °C	-50 °C	Silver	12	59 Áin	1.5 Ám	Panel Mount Through Hole	UL94 V-0	Shielded	Gold	Potted	Aerospace	Chrome	Bronze	Bulkhead - Front Side Nut	Push-Pull	Receptacle Female Sockets	P	Polyetheretherketone (PEEK)	312	Metal	IP68 - Dust Tight Waterproof	Solder	7 A

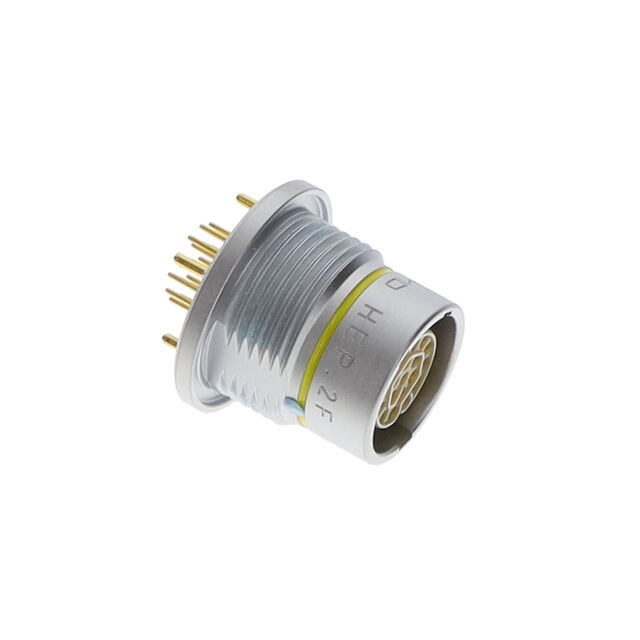

LEMO HEP.2F.319.CLNP	Brass	150 °C	-50 °C	Silver	19	59 Áin	1.5 Ám	Panel Mount Through Hole	UL94 V-0	Shielded	Gold	Potted	Aerospace	Chrome	Bronze	Bulkhead - Front Side Nut	Push-Pull	Receptacle Female Sockets	P	Polyetheretherketone (PEEK)	319	Metal	IP68 - Dust Tight Waterproof	Solder	5 A
LEMO HEP.2F.308.XLNP	Aluminum Alloy	100 °C	-15 °C	Gray	8	59 Áin	1.5 Ám	Panel Mount Through Hole	UL94 V-0	Shielded	Gold	Potted	Aerospace	Nickel	Bronze	Bulkhead - Front Side Nut	Push-Pull	Receptacle Female Sockets	P	Polyetheretherketone (PEEK)	308	Metal	IP68 - Dust Tight Waterproof	Solder	10 A
