2314878 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

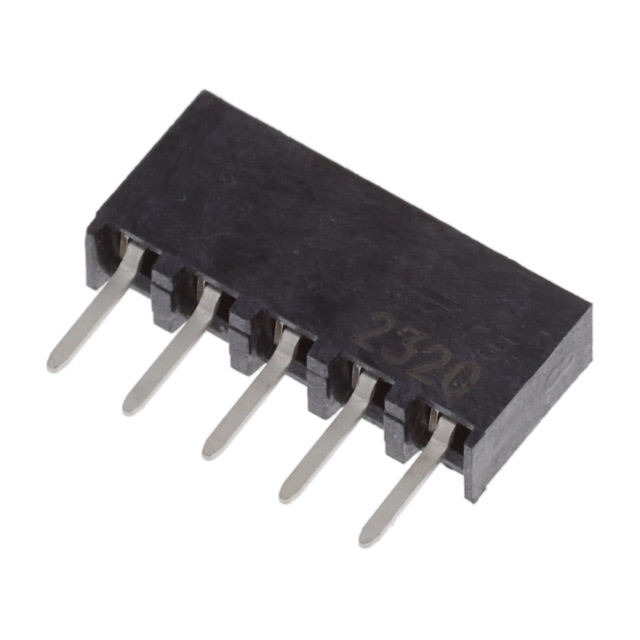

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Height | Insulation Height | Mounting Type | Insulation Material | Contact Type | Termination | Contact Material | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Shape | Voltage Rating | Material Flammability Rating | Insulation Color | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 30 Áin | 0.76 Ám | 1 | 0.079 in | 2 mm | 0.177 in | 4.5 mm | Through Hole | Liquid Crystal Polymer (LCP) | Female Socket | Solder | Phosphor Bronze | Gold | 0.106 in | 2.69 mm | 125 °C | -40 °C | 2 A | Square | 125 VDC | UL94 V-0 | Black | All | Tin | Push-Pull | Receptacle | 3 µm | 118.1 µin |
