470071CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

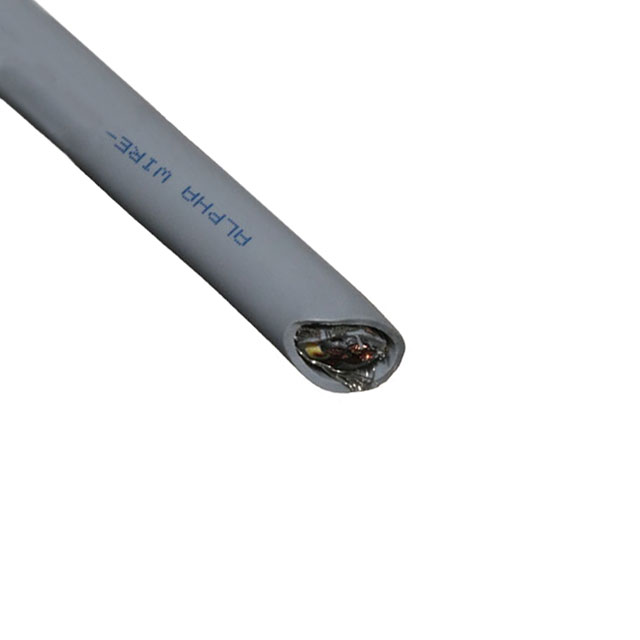

CABLE 7COND 17AWG GRAY SHLD 10M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Length [x] | Length [x] | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Material | Cable Type | Shield Coverage | Jacket Color | Conductor Material | Number of Conductors | Conductor Insulation | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -40 °C | 80 C | 10 m 30 m | 32.81 ft 98.43 ft | 1 m | 3.28 ft | Poly-Vinyl Chloride (PVC) | Braid | 30 | 0.0079 in | 0.0406 in | 1.03 mm | Chemical Resistant Oil Resistant UV Resistant | Copper Tinned | Multi-Conductor | 80 % | Gray | Copper Bare | 7 | Poly-Vinyl Chloride (PVC) | 17 AWG | 300 V | 10.69 mm | 0.421 in | |

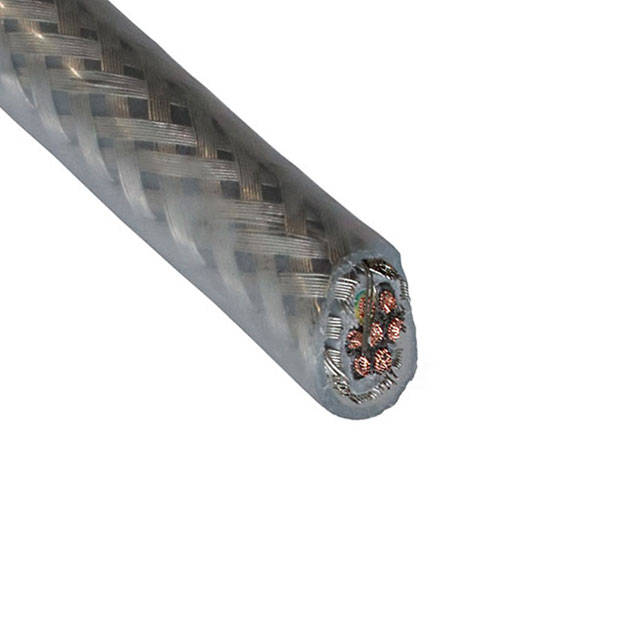

 ALPHA WIRE | -40 °C | 80 C | 10 m 984.3 ft | 32.81 ft | 1 m | 3.28 ft | Poly-Vinyl Chloride (PVC) | Braid | 30 | 0.0079 in | 0.0406 in | 1.03 mm | Chemical Resistant Oil Resistant UV Resistant | Copper Tinned | Multi-Conductor | 80 % | Clear | Copper Bare | 7 | Poly-Vinyl Chloride (PVC) | 17 AWG | 300 V | 10.69 mm | 0.421 in | 300 m |
ALPHA WIRE | -40 °C | 80 C | 50 m | 164 ft | Poly-Vinyl Chloride (PVC) | Braid | 30 | 0.0079 in | 0.0406 in | 1.03 mm | Chemical Resistant Oil Resistant UV Resistant | Copper Tinned | Multi-Conductor | 80 % | Gray | Copper Bare | 7 | Poly-Vinyl Chloride (PVC) | 17 AWG | 300 V | 10.69 mm | 0.421 in |
