TPS68470 Series

Power Management IC (PMIC) with flash LED driver and ref clock generation for compact camera module

Catalog

Power Management IC (PMIC) with flash LED driver and ref clock generation for compact camera module

Part	Current - Output / Channel	Package / Case	Number of Outputs	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Internal Switch(s)	Voltage - Supply (Min) [Min]	Supplier Device Package	Topology	Voltage - Supply (Max) [Max]

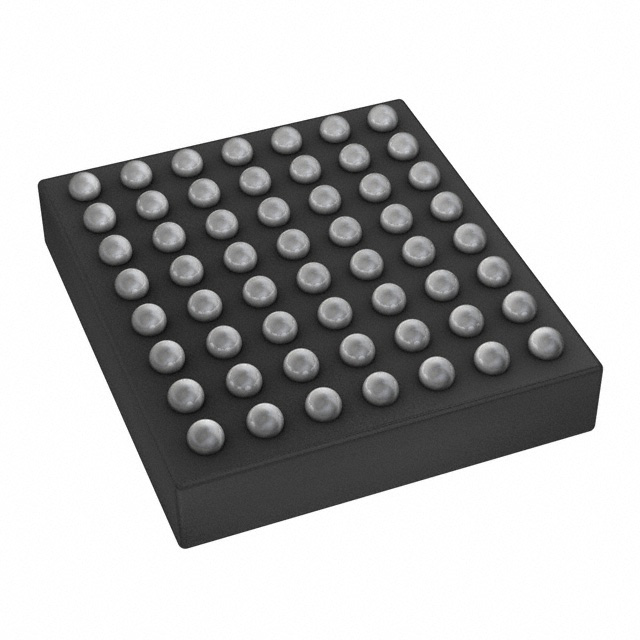

Texas Instruments TPS68470YFFT	1 A	56-UFBGA DSBGA	3	DC DC Regulator	Camera Flash	0 °C	85 C	Surface Mount		2.97 V	3.33x2.93 56-DSBGA	Step-Down (Buck) Step-Up (Boost)	3.63 V
Texas Instruments TPS68470YFFR	1 A	56-UFBGA DSBGA	3	DC DC Regulator	Camera Flash	0 °C	85 C	Surface Mount		2.97 V	3.33x2.93 56-DSBGA	Step-Down (Buck) Step-Up (Boost)	3.63 V

Catalog

Power Management IC (PMIC) with flash LED driver and ref clock generation for compact camera module

Key Features

• High-Efficiency Buck ConverterOutput Current up to 500 mAOutput Voltage Selectable: 0.9 V to 1.95 VDual Flash LED DriverHigh-Efficiency Boost ConverterAdaptive Output Voltage Regulation Based on LED VfLow Side LED Current DriversTwo 1-A Current DriversLED Temperature MonitoringOpen/Short LED Detection/ProtectionControlled LED Current Ramp-Up/DownLinear Regulator for Sensor Analog SupplyOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 200 mALinear Regulator for IO SupplyOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 50 mALinear Regulator for VCM (Voice Coil Motor) Driver PowerOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 500 mALinear Regulator for Auxiliary PowerOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 150 mALinear Regulator for Auxiliary PowerOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 50 mALinear Regulator for Sensor IO SupplyOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 150 mAClock GenerationProgrammable PLLCrystal OscillatorI2C Interface7 GPIOsSystem ResetOperating Temperature Range: 0°C to 85°CDSBGA with Package Height of 0.625 mmHigh-Efficiency Buck ConverterOutput Current up to 500 mAOutput Voltage Selectable: 0.9 V to 1.95 VDual Flash LED DriverHigh-Efficiency Boost ConverterAdaptive Output Voltage Regulation Based on LED VfLow Side LED Current DriversTwo 1-A Current DriversLED Temperature MonitoringOpen/Short LED Detection/ProtectionControlled LED Current Ramp-Up/DownLinear Regulator for Sensor Analog SupplyOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 200 mALinear Regulator for IO SupplyOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 50 mALinear Regulator for VCM (Voice Coil Motor) Driver PowerOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 500 mALinear Regulator for Auxiliary PowerOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 150 mALinear Regulator for Auxiliary PowerOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 50 mALinear Regulator for Sensor IO SupplyOutput Voltage Programmable from 0.875 V to 3.1 V with 17.8-mV StepsOutput Current up to 150 mAClock GenerationProgrammable PLLCrystal OscillatorI2C Interface7 GPIOsSystem ResetOperating Temperature Range: 0°C to 85°CDSBGA with Package Height of 0.625 mm

Description

The TPS68470 device is an advanced power management unit that powers a Compact Camera Module (CCM), generates the clock for the image sensor, drives a dual LED for Flash and incorporates two LED drivers for general purpose indicators . The TPS68470 is capable of generating all needed power rails in a CCM. The CORE voltage regulator is a state of the art buck converter which can be used for the image sensor digital supply. An LDO (LDO_ANA) can be used for the image sensor analog supply. The TPS68470 also has a high efficiency boost converter to support two 1A LED flash drivers. The LED currents are controlled with regulated low side current sources. The TPS68470 has five other LDOs. Two of them can be used for generic and sensor IO supply voltage generation (LDO_IO and LDO_S_IO). One can be dedicated to the VCM driver supply (LDO_VCM). The remaining two are auxiliary LDOs (LDO_AUX1 and LDO_AUX2). The TPS68470 device is an advanced power management unit that powers a Compact Camera Module (CCM), generates the clock for the image sensor, drives a dual LED for Flash and incorporates two LED drivers for general purpose indicators . The TPS68470 is capable of generating all needed power rails in a CCM. The CORE voltage regulator is a state of the art buck converter which can be used for the image sensor digital supply. An LDO (LDO_ANA) can be used for the image sensor analog supply. The TPS68470 also has a high efficiency boost converter to support two 1A LED flash drivers. The LED currents are controlled with regulated low side current sources. The TPS68470 has five other LDOs. Two of them can be used for generic and sensor IO supply voltage generation (LDO_IO and LDO_S_IO). One can be dedicated to the VCM driver supply (LDO_VCM). The remaining two are auxiliary LDOs (LDO_AUX1 and LDO_AUX2).
