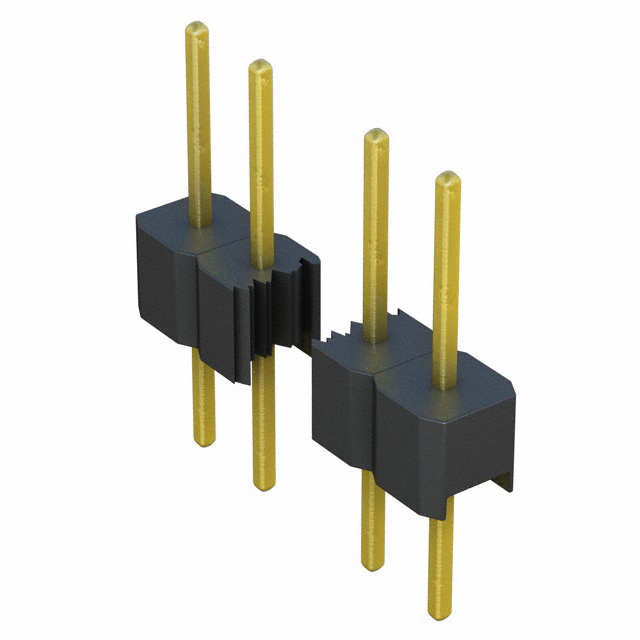

PRPN251 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 25POS 2MM
| Part | Style | Overall Contact Length | Overall Contact Length | Fastening Type | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Insulation Color | Material Flammability Rating | Contact Shape | Mounting Type | Contact Finish - Mating | Connector Type | Contact Finish Thickness - Post | Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Length - Post [custom] | Contact Length - Post | Contact Type | Contact Finish - Post | Shrouding | Number of Positions | Contact Material | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Board to Board Cable | 8.8 mm | 0.346 in | Push-Pull | Flash | 2 mm | 0.079 in | 0.079 " | 2 mm | Black | UL94 V-0 | Square | Through Hole | Gold | Header | Flash | Solder | 1 | -40 C | 105 ░C | Polyester | 0.11 in | 2.79 mm | Male Pin | Gold | Unshrouded | 25 | Brass | All | 4 mm | 0.157 in |
