627W2W Series
Manufacturer: EDAC Inc.
Beta
⌘K

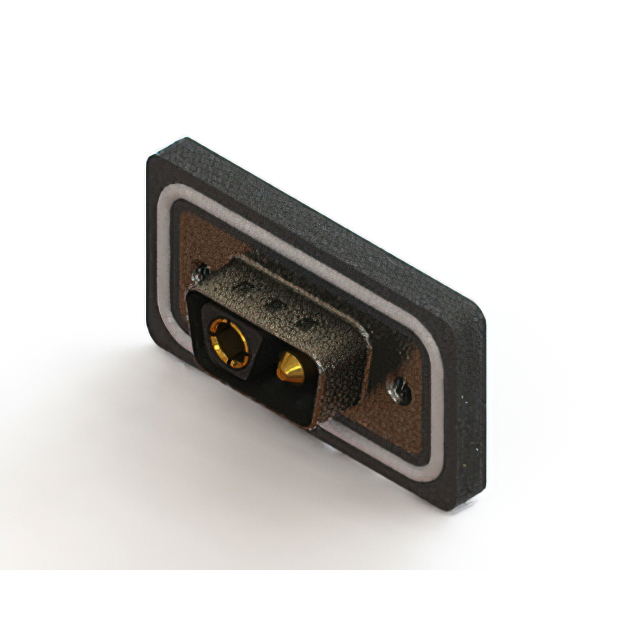

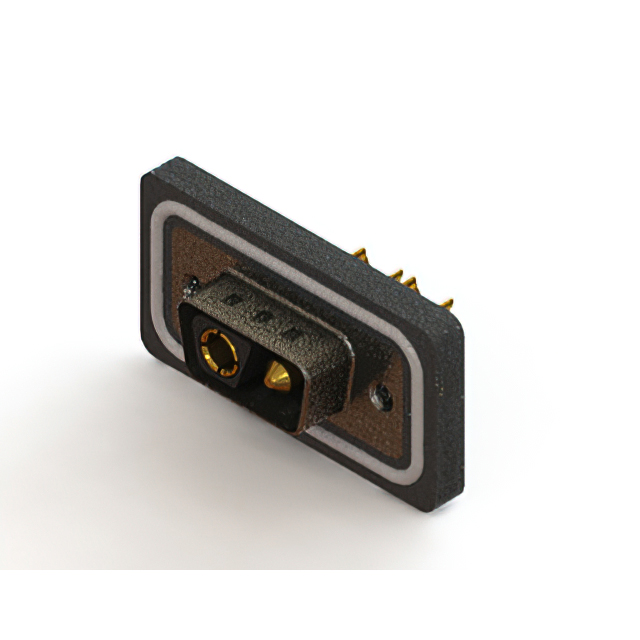

CONN D-SUB PLUG 2P PNL MNT SLDR
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Voltage Rating | Contact Material | Material Flammability Rating | Number of Rows | Contact Type | Number of Positions | Features | Contact Finish | Connector Type | Current Rating (Amps) | Shell Size, Connector Layout | Mounting Type | Flange Feature | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Ingress Protection | Termination | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Board Lock Grounding Indents Shielded | Gold | Plug Male Pins | 10 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Board Side (M3) | Combo D-Sub | 5 µin | 0.127 µm | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 10 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell (M3) | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | Flash | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 20 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | Flash | 4-40 | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 30 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell (M3) | Combo D-Sub | 15 µin | 0.38 µm | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Board Lock Grounding Indents Shielded | Gold | Plug Male Pins | 40 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Board Side (4-40) | Combo D-Sub | 15 µin | 0.38 µm | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 40 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell (M3) | Combo D-Sub | 15 µin | 0.38 µm | Nickel Plated Steel | IP67 - Dust Tight Waterproof | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 40 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell (M3) | Combo D-Sub | 5 µin | 0.127 µm | Nickel Plated Steel | IP67 - Dust Tight Waterproof | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 40 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell (M3) | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | Flash | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Board Lock Grounding Indents Shielded | Gold | Plug Male Pins | 20 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Board Side (M3) | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder | Flash | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | 125 VDC | Copper Alloy | UL94 V-0 | 1 | Power | 2 | Grounding Indents Shielded | Gold | Plug Male Pins | 20 A | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount | Housing/Shell (M3) | Combo D-Sub | 15 µin | 0.38 µm | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Solder |
