210878 Series

Catalog

5G/4G/3G/2G, NB-IOT, CAT-M, GNSS

Part	Number of Bands [custom]	Mounting Type	VSWR	Applications	RF Family/Standard	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Gain	Termination	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Frequency (Center/Band)	Number of Bands
TE Connectivity Raychem Cable Protection 2108784-2	5	Surface Mount	3	CDMA GSM LTE	Cellular	0.125 in	3.18 mm	Wide Band	0.98 dBi 1.93 dBi 2.3 dBi 3 dBi 4 dBi	Solder	1.614 GHz 2.69 GHz 3.8 GHz 6 GHz 960 MHz	1.575 GHz 1.71 GHz 3.3 GHz 4.9 GHz 698 MHz	Chip	1.5945 GHz 2.2 GHz 3.55 GHz 5.45 GHz 829 MHz

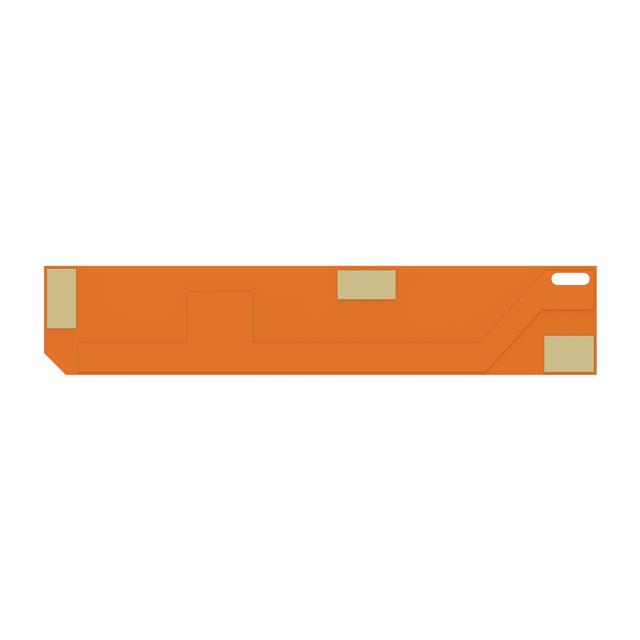

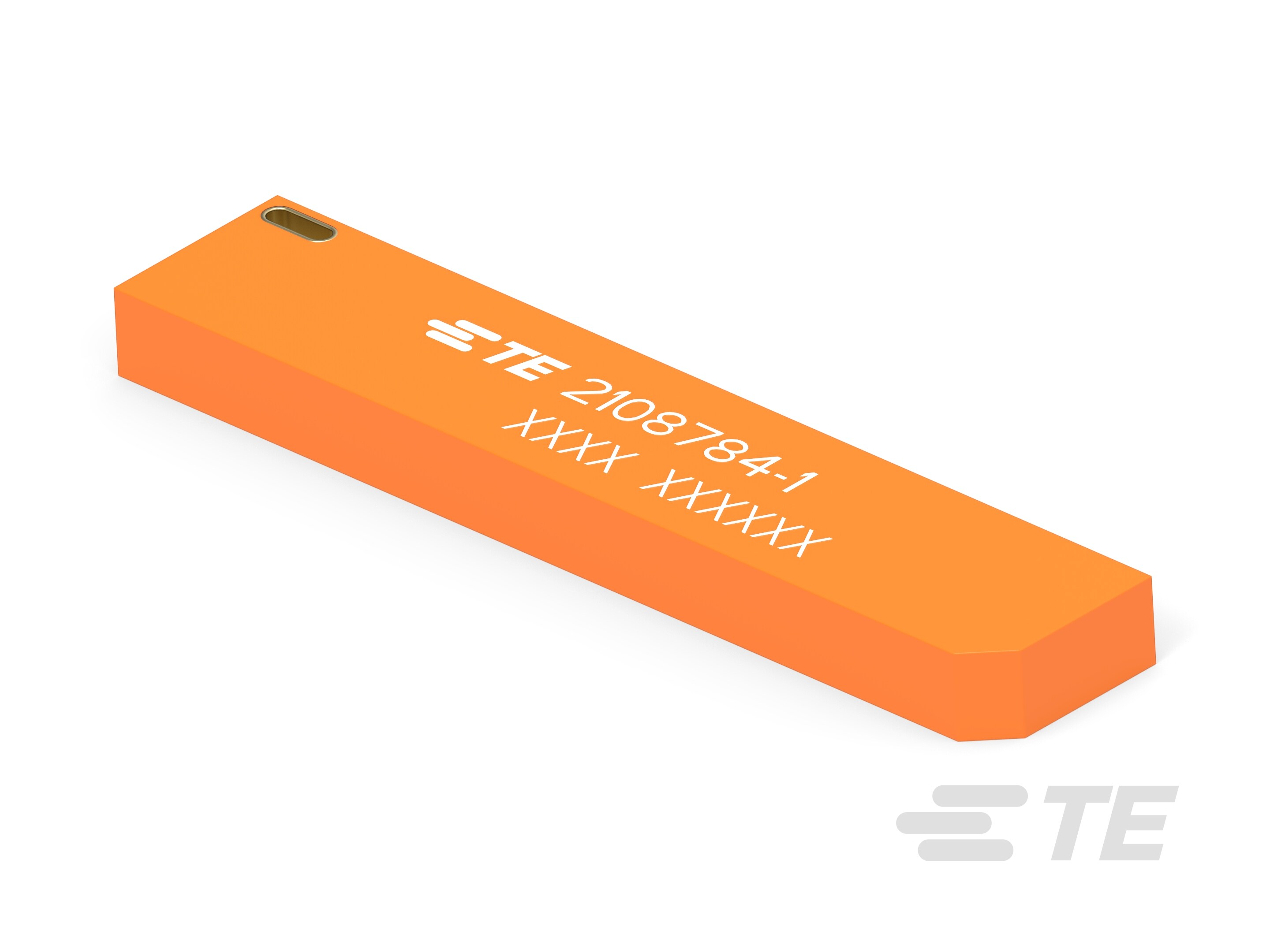

TE Connectivity Raychem Cable Protection 2108784-1	5	Surface Mount	3	CDMA GSM LTE	Cellular	0.125 in	3.18 mm	Wide Band	0.98 dBi 1.93 dBi 2.3 dBi 3 dBi 4 dBi	Solder	1.614 GHz 2.69 GHz 3.8 GHz 6 GHz 960 MHz	1.575 GHz 1.71 GHz 3.3 GHz 4.9 GHz 698 MHz	PCB Trace	1.5945 GHz 2.2 GHz 3.55 GHz 5.45 GHz 839 MHz

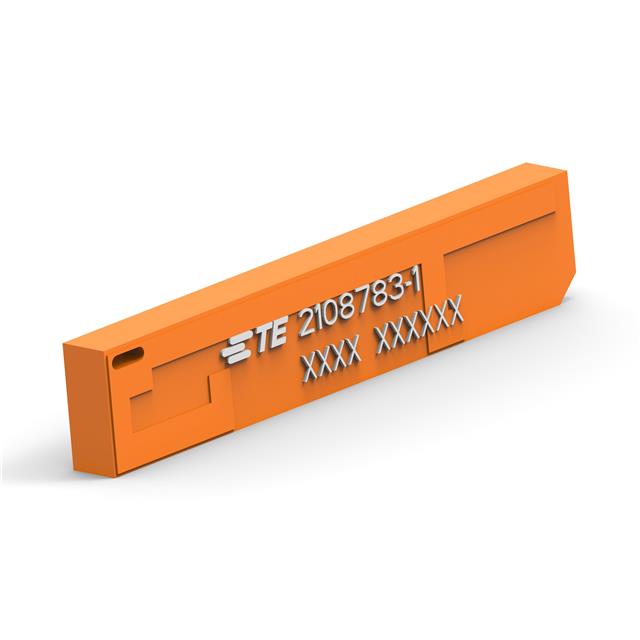

TE Connectivity Raychem Cable Protection 2108783-1		Surface Mount	2	CDMA GSM LTE	Cellular	0.125 in	3.18 mm	Wide Band	2 dBic 2.5 dBi 3.2 dBi 4.9 dBi	Solder	1.61 GHz 2.69 GHz 3.8 GHz 862 MHz	1.42 GHz 1.71 GHz 3.3 GHz 698 MHz	PCB Trace	1.515 GHz 2.2 GHz 3.55 GHz 780 MHz	4
