AWHW 10 Series

Catalog

CONN HEADER SMD 10POS 2.54MM

Part	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Number of Positions	Termination	Contact Material	Insulation Material	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Features	Style	Contact Shape	Contact Finish Thickness - Mating	Contact Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Shrouding	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post

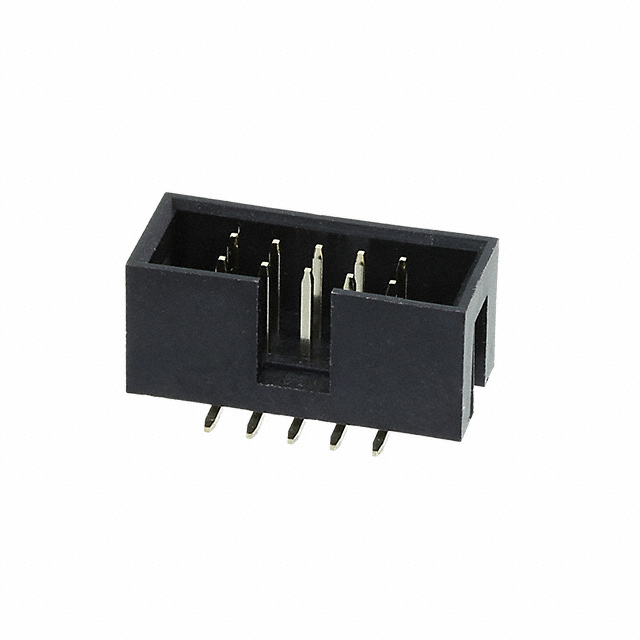

Assmann WSW Components AWHW 10G-SMD	Gold	0.1 "	2.54 mm	Surface Mount	0.1 in	2.54 mm	0.354 in	9 mm	10	Solder	Brass	Glass Filled Nylon 9T Polyamide (PA9T)	Black	3 A	UL94 V-0	5.9 mm	0.232 in	Push-Pull	Keying Slot Pick and Place	Board to Cable/Wire	Square	Flash	Male Pin	2	-40 C	105 ░C	All	Shrouded - 4 Wall	Header

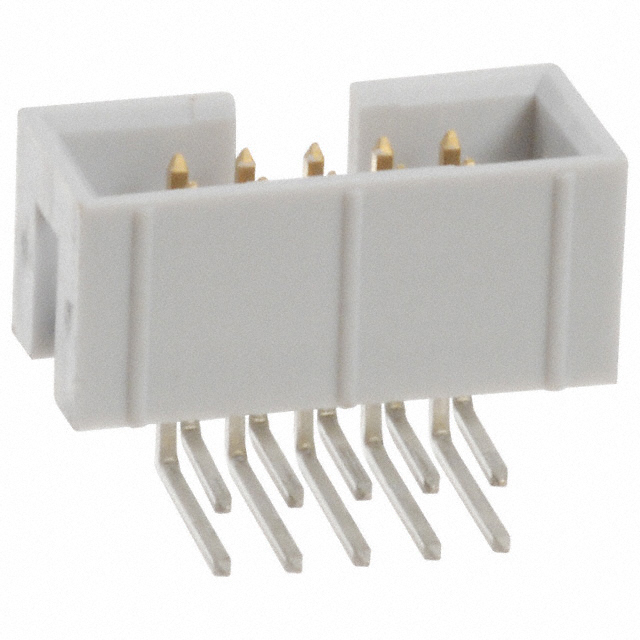

Assmann WSW Components AWHW10A-0202-T-R	Gold	0.1 "	2.54 mm	Right Angle Through Hole	0.1 in	2.54 mm	0.352 in	8.94 mm	10	Solder	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Gray	3 A	UL94 V-0	5.7 mm	0.224 in	Push-Pull	Keying Slot	Board to Cable/Wire	Square	Flash	Male Pin	2	-40 C	105 ░C	All	Shrouded - 4 Wall	Header	0.124 in	3.15 mm	Tin
Assmann WSW Components AWHW 10G-SMD-R	Gold	0.1 "	2.54 mm	Surface Mount	0.1 in	2.54 mm	0.354 in	9 mm	10	Solder	Brass	Glass Filled Nylon 9T Polyamide (PA9T)	Black	3 A	UL94 V-0	5.9 mm	0.232 in	Push-Pull	Keying Slot Pick and Place	Board to Cable/Wire	Square	Flash	Male Pin	2	-40 C	105 ░C	All	Shrouded - 4 Wall	Header
