DLCBS6 Series

Catalog

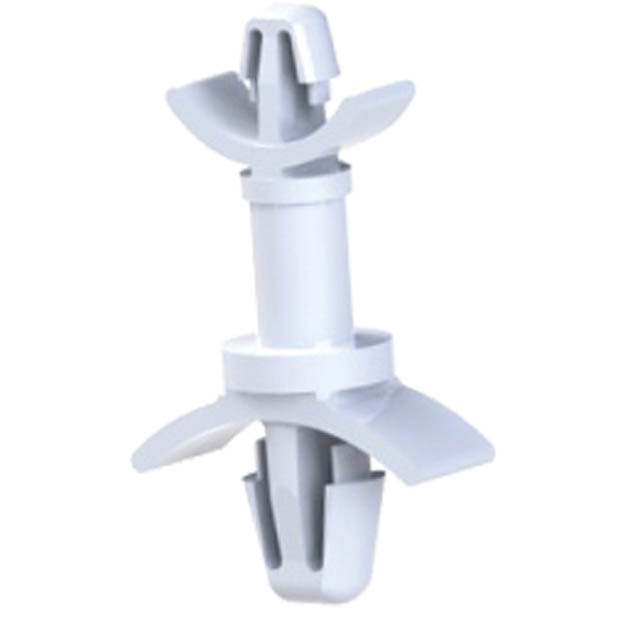

BRD SPT SNAP LOCK NYLON 5/16"

Part	Features	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Between Board Height	Between Board Height	Between Board Height	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Material	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Holding Type	Length - Overall
Essentra Components DLCBS6-5-01	Winged	0.847 in	21.51 mm	0.031 in	0.79 mm	0.078 in	1.98 mm	0.313 in	0.3125 in	7.95 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	3.5 mm	0.138 "	Snap Lock	Nylon	0.187 in	4.75 mm	3/16	Snap Lock
Essentra Components DLCBS6-7-01	Winged	0.973 in	24.71 mm	0.031 in	0.79 mm	0.078 in	1.98 mm	0.438 in	0.4375 "	11.13 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	3.5 mm	0.138 "	Snap Lock	Nylon	0.187 in	4.75 mm	3/16	Snap Lock
Essentra Components DLCBS6-3-01	Winged	0.725 in	18.41 mm	0.031 in	0.79 mm	0.078 in	1.98 mm	0.189 in		4.8 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	3.5 mm	0.138 "	Snap Lock	Nylon	0.187 in	4.75 mm	3/16	Snap Lock
Essentra Components DLCBS6-4-01	Winged	0.788 in	20.01 mm	0.031 in	0.79 mm	0.078 in	1.98 mm	6.35 mm		0.25 in	0.79 mm	0.031 in	0.078 "	1.98 mm	3.5 mm	0.138 "	Snap Lock	Nylon	0.187 in	4.75 mm	3/16	Snap Lock
Essentra Components DLCBS6-8-01	Winged	1.036 in		0.031 in	0.79 mm	0.078 in	1.98 mm	0.5 in	0.5 in	12.7 mm	0.79 mm	0.031 in	0.078 "	1.98 mm	3.5 mm	0.138 "	Snap Lock	Nylon	0.187 in	4.75 mm	3/16	Snap Lock	26.31 mm
