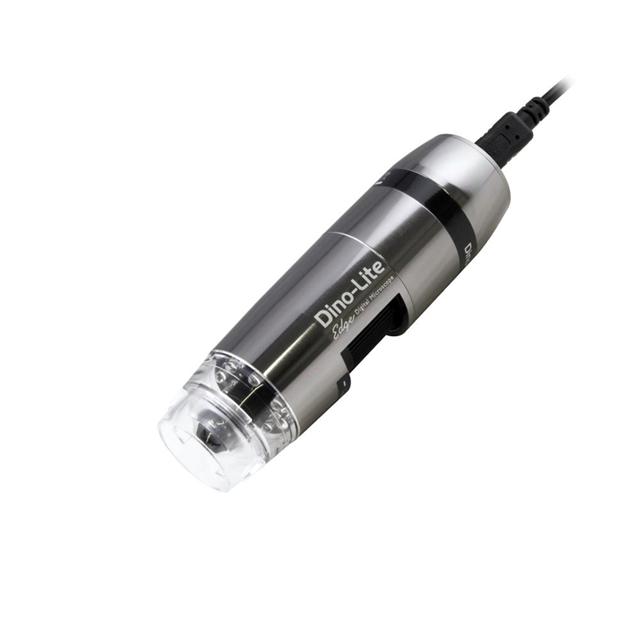

AM4517 Series
Manufacturer: Dino-Lite
Beta
⌘K
800X USB MICROSCOPE
| Part | Interface | Camera Type | Camera Type | Working Distance [custom] | Working Distance [custom] | Type | Field of View [Max] | Field of View [Min] | Magnification Range [Min] | Magnification Range [Max] | Illumination | Field of View [Max] | Field of View [Min] | Working Distance [Max] [custom] | Working Distance [Min] [custom] | Working Distance [Max] [custom] | Working Distance [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Dino-Lite | USB | 1.3 MP | CMOS | 0.232 in 0.252 in | 5.9 mm 6.4 mm | Microscope Portable | 0.022 " 0.56 mm | 0.017 " 0.43 mm | 700 x | 900 x | LED White (8) | ||||||
 Dino-Lite | USB | 1.3 MP | CMOS | 1.307 in 9.354 in | 33.2 mm 237.6 mm | Microscope Portable | 1.539 in | 0.11 in | 10 x | 140 x | LED White (8) | 39.1 mm | 2.8 mm | ||||
Dino-Lite | USB | 1.3 MP | CMOS | Microscope Portable | 0.768 in | 0.071 in | 20 x | 220 x | LED White (8) | 19.5 mm | 1.8 mm | 59.5 mm | 0.445 in | 2.343 in | 11.3 mm |
