AP3216 Series

Catalog

LED YELLOW CLEAR SMD

Part	Lens Color	Color	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Lens Transparency	Lens Size [y]	Lens Size [x]	Configuration	Height (Max) [z]	Wavelength - Dominant	Supplier Device Package	Wavelength - Peak	Lens Style	Current - Test
Kingbright AP3216SYC	Colorless	Yellow	150 mcd	2 V	120 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	Clear	1.6 mm	2 mm	Standard	1.1 mm	588 nm	SMD	590 nm	Rectangle with Flat Top	20 mA
Kingbright AP3216ID	Red	Red	12.5 mcd	2 V	60 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	Diffused	1.6 mm	2 mm	Standard	1.1 mm	625 nm	Chip LED	627 nm	Rectangle with Flat Top	20 mA
Kingbright AP3216SYCK	Colorless	Yellow	150 mcd	2 V	120 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	Clear	1.6 mm	2 mm	Standard	1.1 mm	590 nm	SMD	590 nm	Rectangle with Flat Top	20 mA

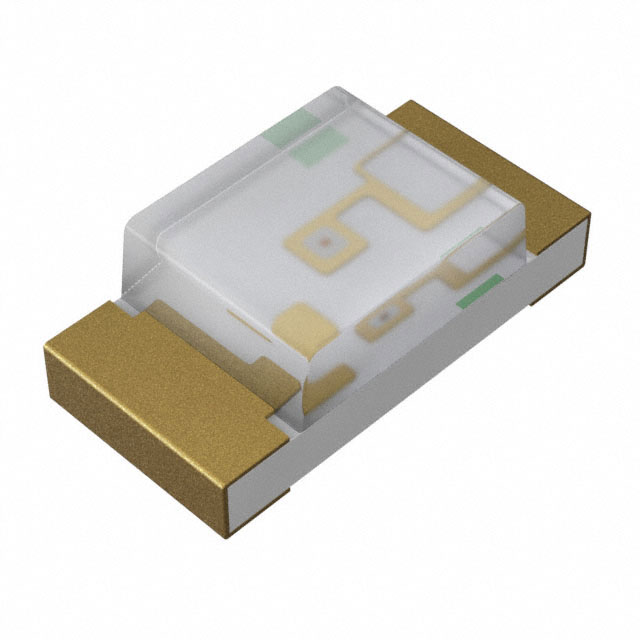

Kingbright AP3216SURCK	Colorless	Red	80 mcd 230 mcd	1.95 V	120 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	Clear	1.6 mm	2 mm	Standard	1.1 mm	630 nm	Chip LED	650 nm	Rectangle with Flat Top	20 mA
