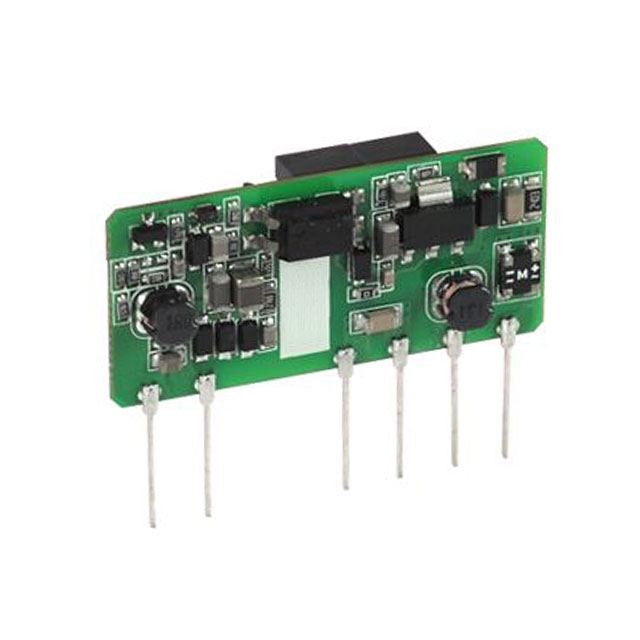

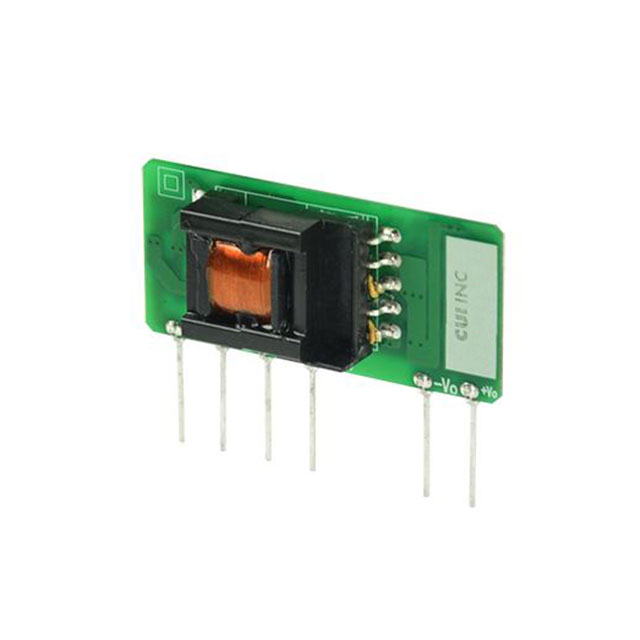

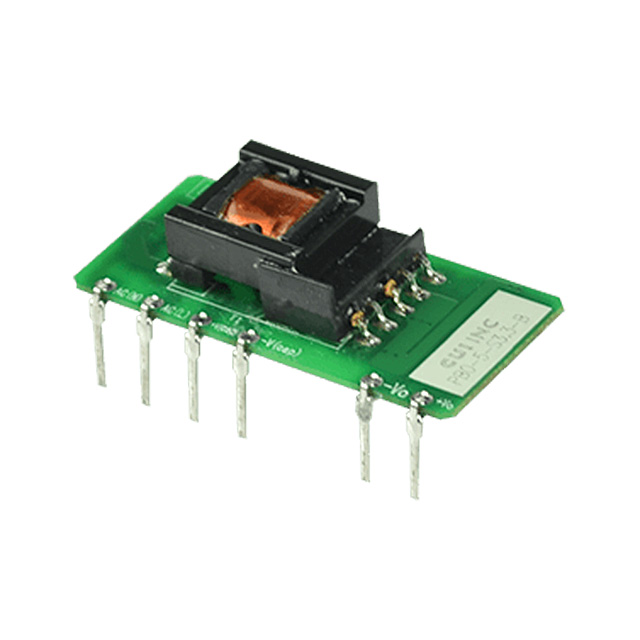

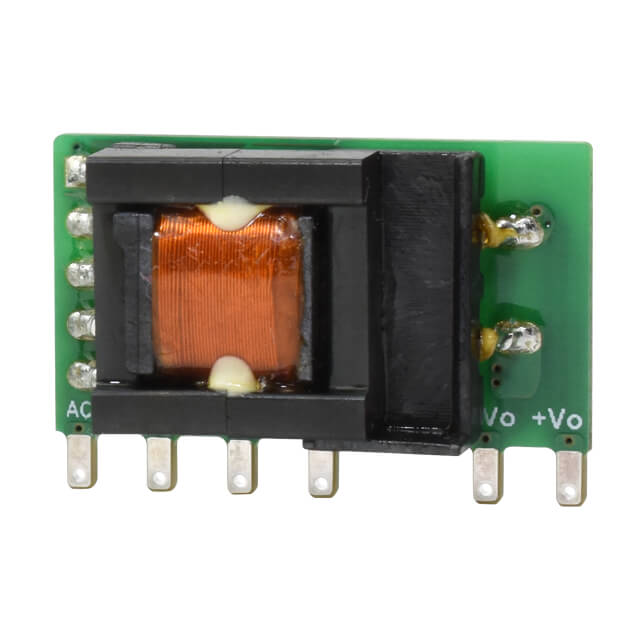

PBO-5 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 5V 5W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Standard Number | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Mounting Type | Current - Output (Max) [Max] | Package / Case | Number of Outputs | Approval Agency | Power (Watts) | Type | Line Regulation | Weight | Weight | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | -40 °C | 85 °C | 3 % | 70 VDC 85 VAC | 305 VAC 430 VDC | 76 % | 60335-1 62368-1 | 5 V | 11 mm | 26.4 mm | 14.7 mm | 1.04 in | 0.43 in | 0.58 in | Household Appliances ITE (Commercial) | Through Hole | 1 A | 6-SIP Module | 1 | CE cURus | 5 W | Open Frame | 1.5 % | |||
CUI Inc. | -40 °C | 85 °C | 3 % | 70 VDC 85 VAC | 305 VAC 430 VDC | 79 % | 60335-1 62368-1 | 12 V | 11 mm | 26.4 mm | 14.7 mm | 1.04 in | 0.43 in | 0.58 in | Household Appliances ITE (Commercial) | Through Hole | 420 mA | 6-SIP Module | 1 | CE cURus | 5 W | Open Frame | 1.5 % | |||
CUI Inc. | -40 °C | 85 °C | 3 % | 70 VDC 85 VAC | 305 VAC 430 VDC | 79 % | 60335-1 62368-1 | 15 V | 11 mm | 26.4 mm | 14.7 mm | 1.04 in | 0.43 in | 0.58 in | Household Appliances ITE (Commercial) | Through Hole | 340 mA | 6-SIP Module | 1 | CE cURus | 5 W | Open Frame | 1.5 % | |||
CUI Inc. | -40 °C | 85 °C | 3 % | 70 VDC 85 VAC | 305 VAC 430 VDC | 69 % | 60335-1 62368-1 | 3.3 V | 11 mm | 26.4 mm | 14.7 mm | 1.04 in | 0.43 in | 0.58 in | Household Appliances ITE (Commercial) | Through Hole | 1 A | 6-SIP Module | 1 | CE cURus | 3.3 W | Open Frame | 1.5 % | |||
 CUI Inc. | -25 °C | 85 °C | 1.5 % | 85 VAC 100 V | 264 VAC 400 VDC | 75 % | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 62368-1 | 9 V | 12.8 mm | 40 mm | 20 mm | 1.57 in | 0.5 " | 0.79 in | ITE (Commercial) | Through Hole | 560 mA | 14-SIP Module 6 Leads | 1 | CB Scheme EN IEC UL | 5 W | Open Frame | 0.5 % | 0.016 lb | 7.26 g | Universal Input |
 CUI Inc. | -25 °C | 85 °C | 1.5 % | 85 VAC 100 V | 264 VAC 400 VDC | 79 % | 55024 55032 Class A 60950-1 62368-1 | 24 V | 20 mm | 40 mm | 12.8 mm | 1.57 in | 0.79 in | 0.5 in | ITE (Commercial) | Right Angle Through Hole | 210 mA | 14-SIP Module 6 Leads | 1 | CB Scheme EN IEC UL | 5 W | Open Frame | 0.5 % | Universal Input | ||
 CUI Inc. | -25 °C | 85 °C | 1.5 % | 85 VAC 100 V | 264 VAC 400 VDC | 75 % | 55024 55032 Class A 60950-1 62368-1 | 9 V | 20 mm | 40 mm | 12.8 mm | 1.57 in | 0.79 in | 0.5 in | ITE (Commercial) | Right Angle Through Hole | 560 mA | 14-SIP Module 6 Leads | 1 | CB Scheme EN IEC UL | 5 W | Open Frame | 0.5 % | Universal Input | ||
CUI Inc. | -40 °C | 85 °C | 3 % | 70 VDC 85 VAC | 305 VAC 430 VDC | 81 % | 60335-1 62368-1 | 24 V | 11 mm | 26.4 mm | 14.7 mm | 1.04 in | 0.43 in | 0.58 in | Household Appliances ITE (Commercial) | Through Hole | 210 mA | 6-SIP Module | 1 | CE cURus | 5 W | Open Frame | 1.5 % | |||
 CUI Inc. | -25 °C | 85 °C | 1.5 % | 85 VAC 100 V | 264 VAC 400 VDC | 76 % | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 62368-1 | 12 V | 12.8 mm | 40 mm | 20 mm | 1.57 in | 0.5 " | 0.79 in | ITE (Commercial) | Through Hole | 420 mA | 14-SIP Module 6 Leads | 1 | CB Scheme EN IEC UL | 5 W | Open Frame | 0.5 % | 0.016 lb | 7.26 g | Universal Input |
CUI Inc. | -40 °C | 85 °C | 3 % | 70 VDC 85 VAC | 305 VAC 430 VDC | 77 % | 60335-1 62368-1 | 9 V | 11 mm | 26.4 mm | 14.7 mm | 1.04 in | 0.43 in | 0.58 in | Household Appliances ITE (Commercial) | Through Hole | 560 mA | 6-SIP Module | 1 | CE cURus | 5 W | Open Frame | 1.5 % |
