745203 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

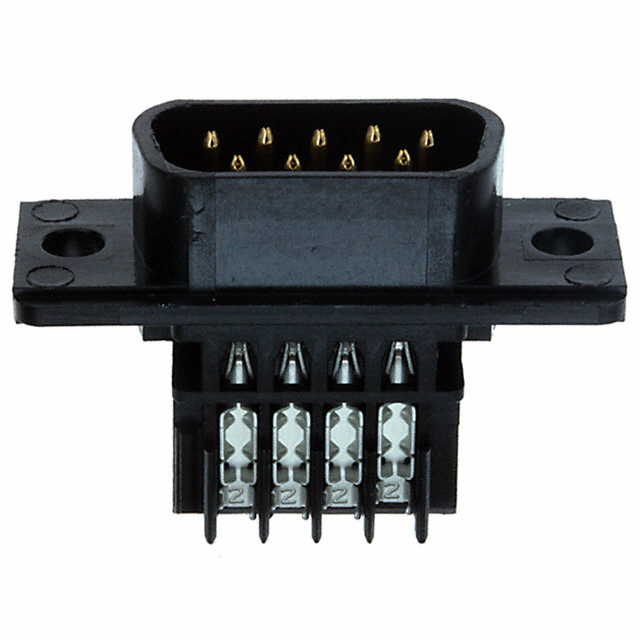

CONN D-SUB PLUG 9POS IDC
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Dielectric Material | Number of Rows [custom] | Connector Style | Contact Type | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Mounting Type | Number of Positions | Contact Finish | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 26 AWG | 22 AWG | Black | -55 C | 105 ░C | 250 V | Phosphor Bronze | Thermoplastic | 2 | D-Sub | Signal | Plug Male Pins | 30 Áin | 0.76 Ám | UL94 V-0 | Free Hanging (In-Line) | 9 | Gold | Discrete Wire IDC | 1 | DE E | Housing/Shell (Unthreaded) | Varies by Wire Gauge |
