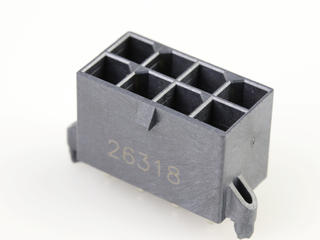

172065 Series

Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 6 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black

Manufacturer: Molex

Catalog

Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 6 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black

Part	Contact Finish - Mating	Features	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions	Shrouding	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Style	Insulation Color	Applications	Number of Rows	Material Flammability Rating	Termination	Contact Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating

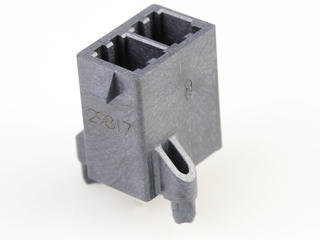

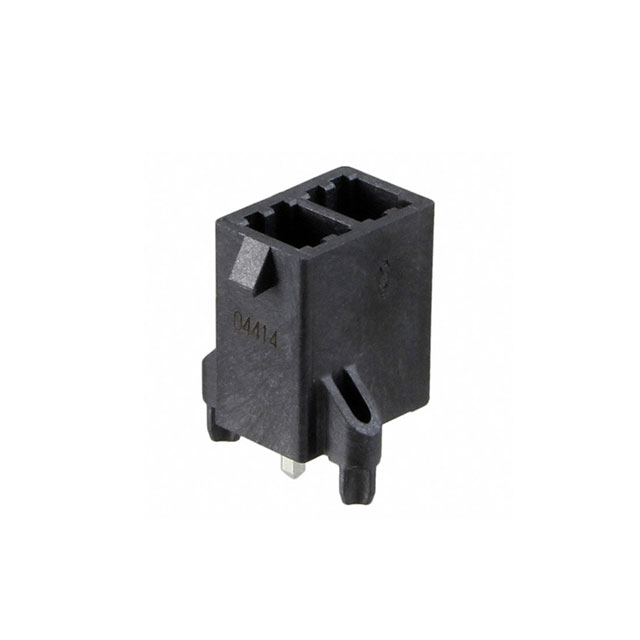

Molex 1720650002	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	2	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm

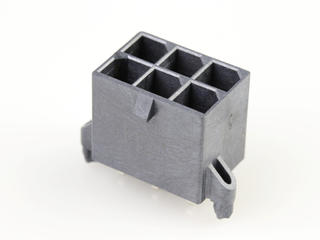

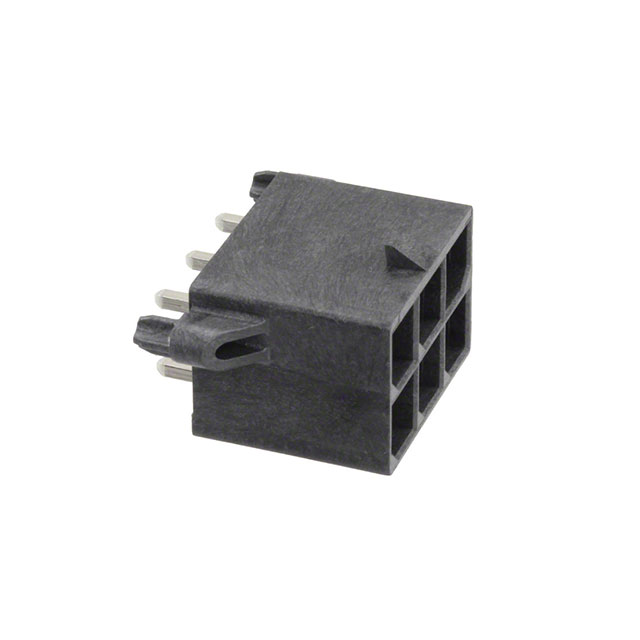

Molex 1720651006	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	6	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	30 Áin	0.76 Ám	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm

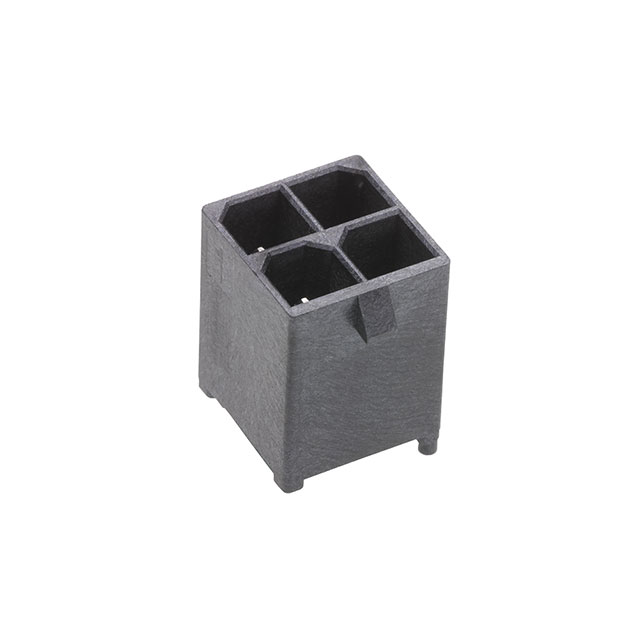

Molex 1720650904	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	4	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm

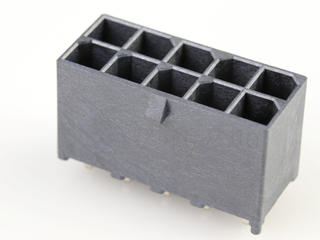

Molex 1720650210	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	10	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm
Molex 1720650310
Molex 1720659206	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	6	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm
Molex 1720650304	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	4	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	30 Áin	0.76 Ám	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm

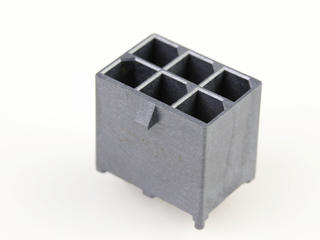

Molex 1720650206	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	6	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm
Molex 1720650906	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	6	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm

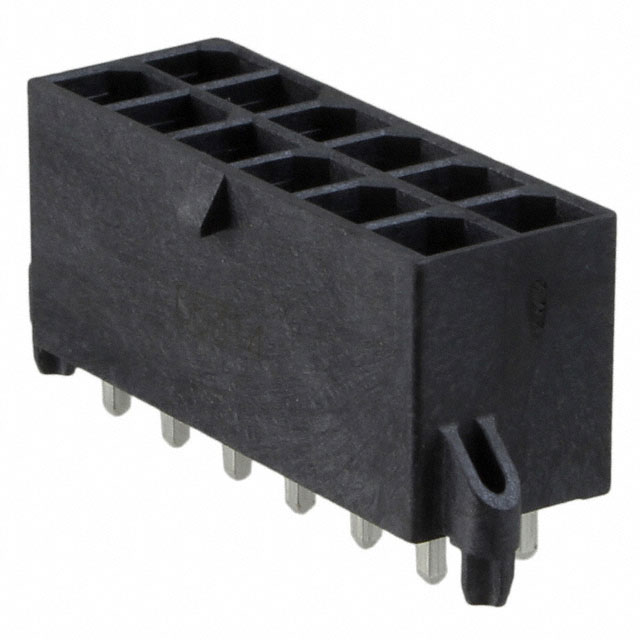

Molex 1720650212	Gold	Board Guide Glow Wire Compliant	Liquid Crystal Polymer (LCP)	3.73 mm	0.147 in	12	Shrouded - 4 Wall	Locking Ramp	2.54 µm	100 µin	All	0.224 in	5.7 mm	Header	Through Hole	Tin	15 µin	0.38 µm	Square	Copper	Board to Cable/Wire	Black	Automotive General Purpose Industrial Telecommunications	2	UL94 V-0	Solder	Male Pin	0.583 in	14.8 mm	0.224 in	5.7 mm

Catalog

Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 6 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black
